HANDLEBAR
KH100B8 1977 CANADA

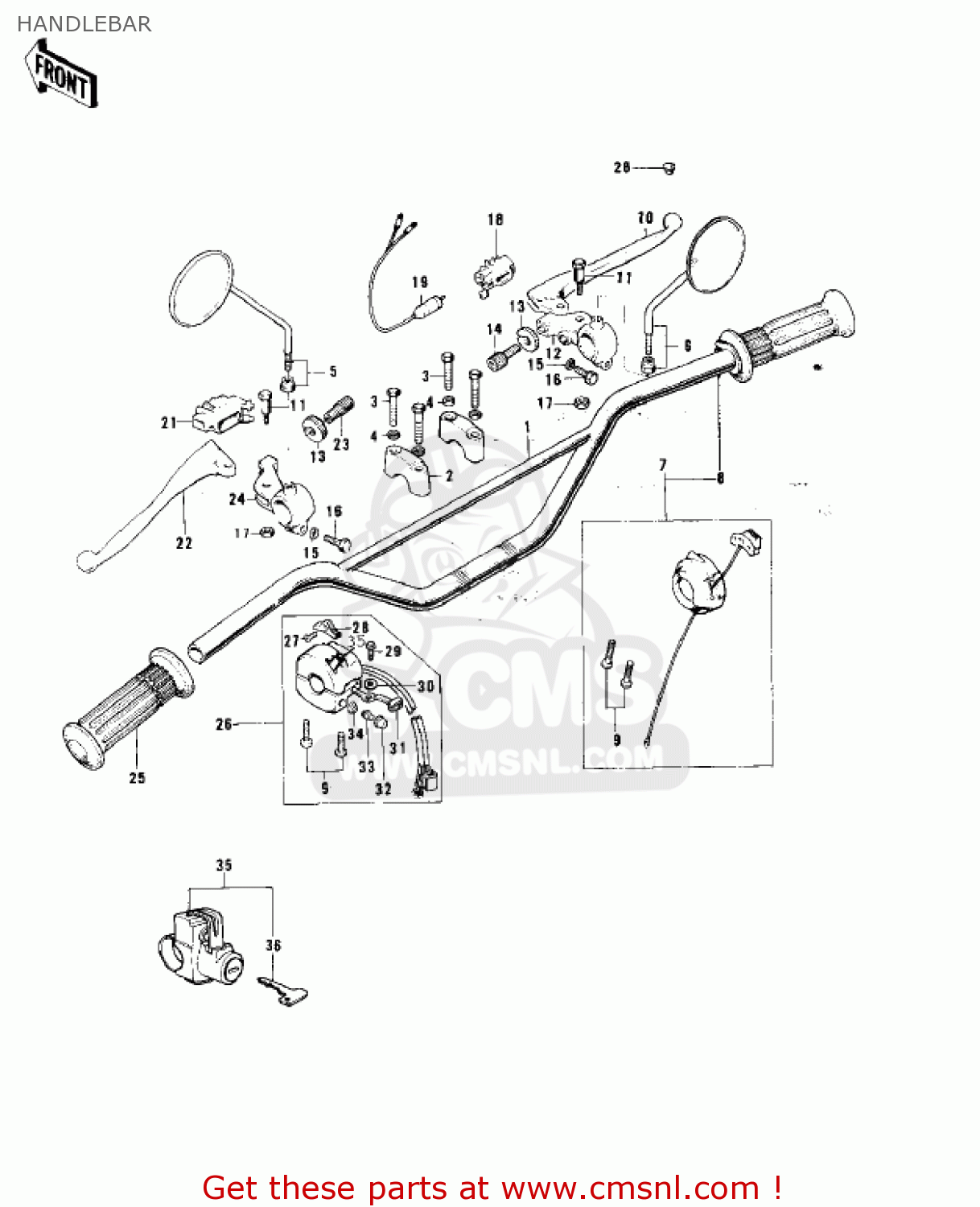

Handlebar diagram KH100B8 1977 CANADA
HANDLEBAR KH100B8 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46003035
ref: 1
HANDLEBAR
€ 92.00
2
46012004
ref: 2
HOLDER-UPPER HANDLBAR
€ 14.00
3
920011405
ref: 3
BOLT,8X38
€ 10.00
4
461F0800
ref: 4
WASHER-SPRING,8MM
€ 0.50
5
56003009
ref: 5
MIRROR-ASSY,LH
€ 50.00
6
56002020
ref: 6
OPTION
MIRROR-ASSY,RH
€ 47.50
7
46018047
ref: 7
CASE ASSY,R.H
€ 74.50
8
46019039
ref: 8
GRIP-ASSY,THROTTLE
€ 30.00
9
220B0525
ref: 9
SCREW-PAN-CROS,5X25
€ 2.50
10
46058004
ref: 10
LEVER-GRIP,FRONT BRAK
€ 24.00
11
92007046
ref: 11
BOLT,HEX HEAD,5X22
€ 4.50
12
4606000921
ref: 12
BLACK
HOLDER,BRAKE LEVER,FR
€ 27.00
13
46056005
ref: 13
NUT-LOCK
€ 6.00
14
46055010
ref: 14
D=7
SCREW,CABLE ADJUST
€ 21.00
14
46055003
ref: 14
KH100-B8
SCREW-CABLE ADJUST
€ 11.50
15
410B0600
ref: 15
WASHER-PLAIN-SMALL,6M
€ 0.50
16
110N0625
ref: 16
BOLT-HEX HEAD,6X25
€ 3.50
17
92019014
ref: 17
NUT-LOCK,5M/M
€ 2.50
18
490061017
ref: 18
BOOTS,LEVER HOLDER
€ 13.00
19
27021004
ref: 19
SWITCH,FR BRAKE LAMP
€ 23.00
20
92102009
ref: 20
NOT REQUIRED FOR 560
CAP-RR VIEW MIRROR
€ 3.00
21
490061017
ref: 21
BOOTS,LEVER HOLDER
€ 13.00
22
46092015
ref: 22
LEVER-GRIP,CLUTCH
€ 11.50
23
46055003
ref: 23
D=80
SCREW-CABLE ADJUST
€ 11.50
24
4609401121
ref: 24
BLACK
HOLDER-CLUTCH LEV,BLK
€ 23.00
25
46075029
ref: 25
RUBBER,L.H GRIP
€ 9.50
26
46091040
ref: 26
HOUSING-ASSY-CONTROL,
€ 93.50
?
99990531
ref: ?
Includes items 27 an
DIMMER SWITCH KIT B
€ 1.00
27
221B0308A
ref: 27
SCREW-CNTSNK HD,3X8
€ 2.50
28
46044009
ref: 28
KNOB-L.H SWITCH
€ 3.00
29
220B0305A
ref: 29
SCREW-PAN HEAD,3X5
€ 1.00
29
220B0305A
ref: 29
KH100-B8
SCREW-PAN HEAD,3X5
€ 1.00
30
92095010
ref: 30
WASHER
€ 2.50
31
46044010
ref: 31
KNOB-SWITCH
€ 6.00
32
270101009
ref: 32
SWITCH ASSY,HORN BUTN
€ 5.50
33
270101009
ref: 33
SWITCH ASSY,HORN BUTN
€ 5.50
34
270101009
ref: 34
SWITCH ASSY,HORN BUTN
€ 5.50
35
27039002
ref: 35
HELMET LOCK ASSEMBLY
€ 86.00
36
2700803421
ref: 36
KEY SET,#321
€ 22.00
36
2700803422
ref: 36
KEY SET,#322
€ 37.50
36
2700803423
ref: 36
KEY SET,#323
€ 31.00
36
2700803424
ref: 36
KEY SET,#324
€ 39.50
36
2700803425
ref: 36
KEY SET,#325
€ 18.50
36
2700803426
ref: 36
KEY SET,#326
€ 18.50
36
2700803427
ref: 36
KEY SET,#327
€ 18.50
36
2700803428
ref: 36
KEY SET,#328
€ 18.50
36
2700803429
ref: 36
KEY SET,#329
€ 18.50
36
2700803430
ref: 36
KEY SET,#330
€ 18.50
36
2700803435
ref: 36
KEY SET,#235
€ 18.50
36
2700803436
ref: 36
KEY SET,#236
€ 18.50
36
2700803437
ref: 36
KEY SET,#237
€ 20.50
36
2700803438
ref: 36
KEY SET,#238
€ 37.50
36
2700803439
ref: 36
KEY SET,#239
€ 33.50
36
2700803400
ref: 36
KEY SET,#240
€ 18.50
36
2700803440
ref: 36
KEY SET,#140
€ 31.00
36
2700803441
ref: 36
KEY SET,#141
€ 33.00
36
2700803442
ref: 36
KEY SET,#142
€ 37.50
36
2700803443
ref: 36
KEY SET,#143
€ 33.00
