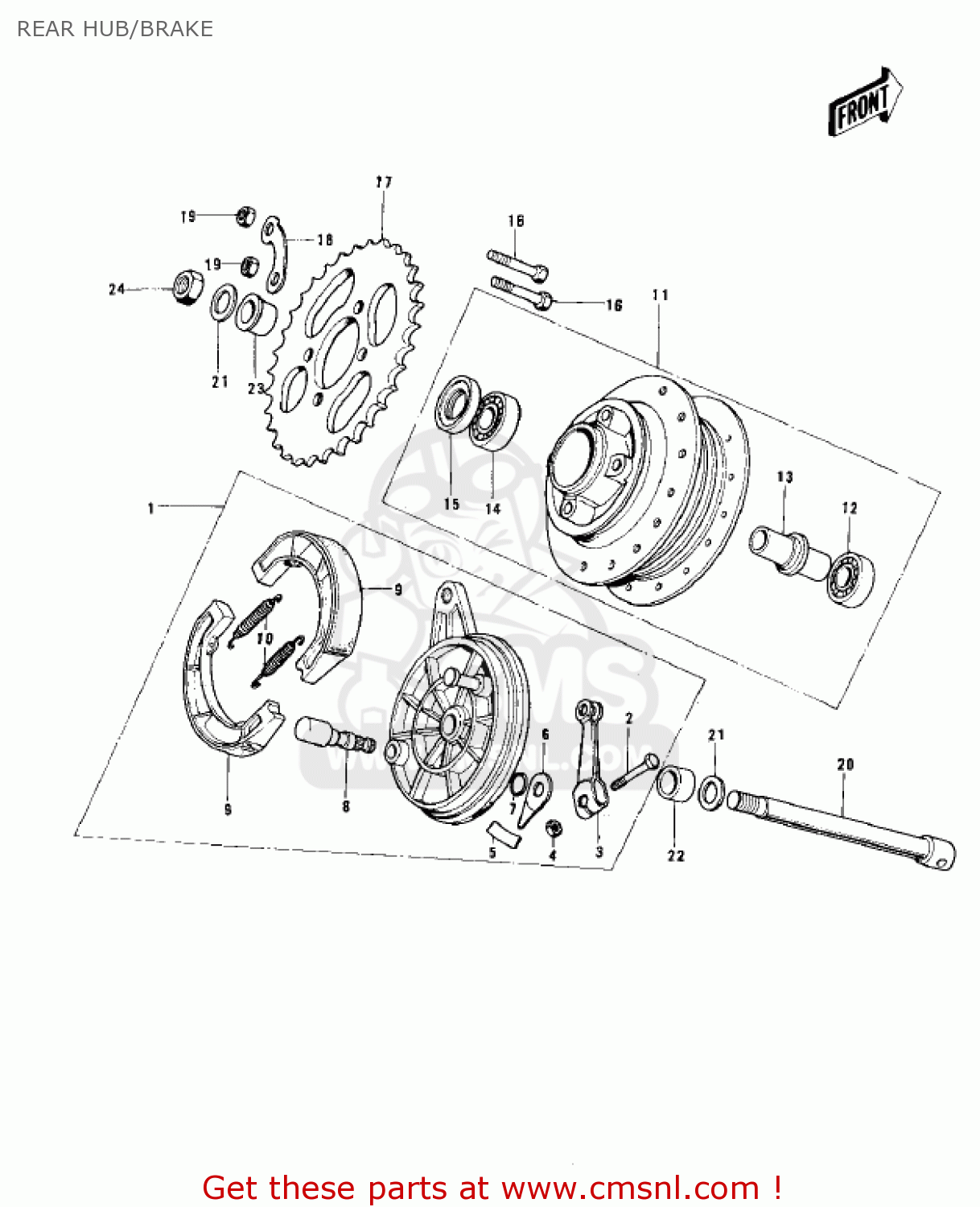

REAR HUB/BRAKE

ref

part #

description

quantity

1

4200606780
ref: 1

PANEL ASSY,RR BK,BUFF

€ 188.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

3

41053002
ref: 3

LEVER-BRAKE CAM

€ 11.50

4

41072007
ref: 4

NUT,6MM

€ 2.50

5

41084002
ref: 5

LABEL,FRONT BRAKE SHOE

€ 6.50

6

41085003
ref: 6

INDICATOR,BRAKE SHOE

€ 9.00

7

92055004
ref: 7

RING-O,BRAKE CAM

€ 3.00

8

41050012
ref: 8

CAM-BRAKE

€ 18.00

9

410481085
ref: 9

SHOE-BRAKE (NAS)

€ 13.00

10

920811766
ref: 10

SPRING,BRAKE SHOE

€ 5.50

11

42005006
ref: 11

DRUM ASSY-REAR BRAKE

€ 105.00

12

601B6301Z
ref: 12

BEARING-BALL,#6301ZC3

€ 15.00

13

42010003
ref: 13

COLLAR,L=85

€ 6.50

14

601B6301
ref: 14

BEARING-BALL,#6301C3

€ 13.00

15

92052001
ref: 15

OIL SEAL-RR BRK DRUM

€ 6.50

16

92001021
ref: 16

BOLT-REAR SPROCKET

€ 3.50

17

42041020
ref: 17
STD

REAR SPROCKET 37T

€ 34.50

17

42041051
ref: 17
OPTION

REAR SPROCKET 42T

€ 37.50

18

92088003
ref: 18

WASHER,SPROCKET LOCK

€ 3.00

19

311B0800
ref: 19

NUT,8MM

€ 0.50

20

410681091
ref: 20

AXLE,12X206

€ 24.00

21

411B1200
ref: 21

WASHER-PLAIN,12MM

€ 0.50

22

42032006
ref: 22

COLLAR-REAR HUB R.H

€ 7.00

23

42032005
ref: 23

COLLAR-REAR HUB L.H

€ 2.00

24

314B1200
ref: 24

NUT-HEX-FINE

€ 1.00
