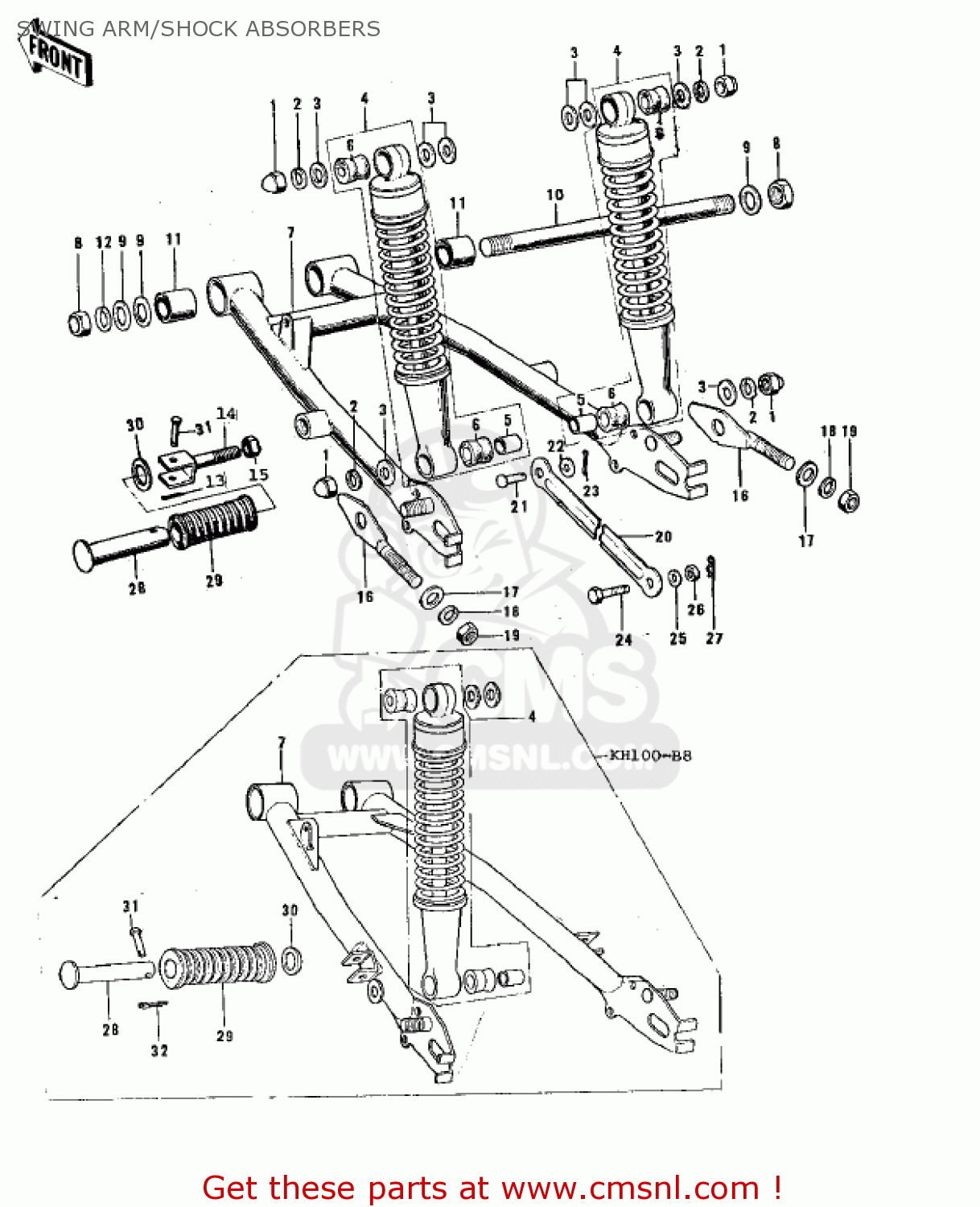

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92020014
ref: 1

NUT,CAP,12MM

€ 6.50

2

461F1200
ref: 2

WASHER-SPRING,12MM

€ 0.50

3

411B1200
ref: 3

WASHER-PLAIN,12MM

€ 0.50

4

45014038
ref: 4

SHOCK ABSORBER,REAR

€ 1,041.00

4

45014124
ref: 4
KH100-B8

SHOCK ABSORBER,REAR

€ 154.50

5

45016007
ref: 5

SHOCK ABSORBER BUSHING

€ 9.00

6

45017014
ref: 6

SHOCK ABSORBER BUSHING,RUBBER

€ 6.50

7

33001023
ref: 7

SWING ARM

€ 253.00

7

33001093
ref: 7
KH100-B8

SWING ARM

€ 313.00

8

314B1000
ref: 8

NUT,10MM

€ 0.50

9

410B1000
ref: 9

WASHER-PLAIN-SMALL,10

€ 0.50

10

33032009
ref: 10

SHAFT-SWING ARM PIVOT

€ 12.50

11

92092006
ref: 11

BUSHING-RUBBER,SWING

€ 11.50

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

550D2015
ref: 13

PIN-COTTER,2.0X15

€ 1.00

14

33028011
ref: 14

HOLDER,STEP,RR

€ 16.50

15

315B1200
ref: 15

NUT,12MM

€ 0.50

16

33040008
ref: 16

ADJUSTER-CHAIN

€ 7.00

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

43007007
ref: 20

TORQUE LINK,REAR BRK

€ 6.50

21

43009001
ref: 21

PIN-REAR TORQUE LINK

€ 4.50

22

410B1000
ref: 22

WASHER-PLAIN-SMALL,10

€ 0.50

23

550D2520
ref: 23

PIN-COTTER,2.5X20

€ 1.00

24

92003003
ref: 24

BOLT-HEX HEAD,10X32

€ 4.00

25

461F1000
ref: 25

WASHER-SPRING,10MM

€ 0.50

26

314B1000
ref: 26

NUT,10MM

€ 0.50

27

554A0800
ref: 27

PIN-SNAP,8MM

€ 1.00

28

34028009
ref: 28

BAR-REAR FOOTREST

€ 24.00

29

92076024
ref: 29

DAMPER,STEP

€ 14.50

30

92022199
ref: 30

WASHER,20X30X2.3

€ 5.00

31

920431464
ref: 31

PIN

€ 5.50
