FRONT FORK
KH100B8 1977 CANADA

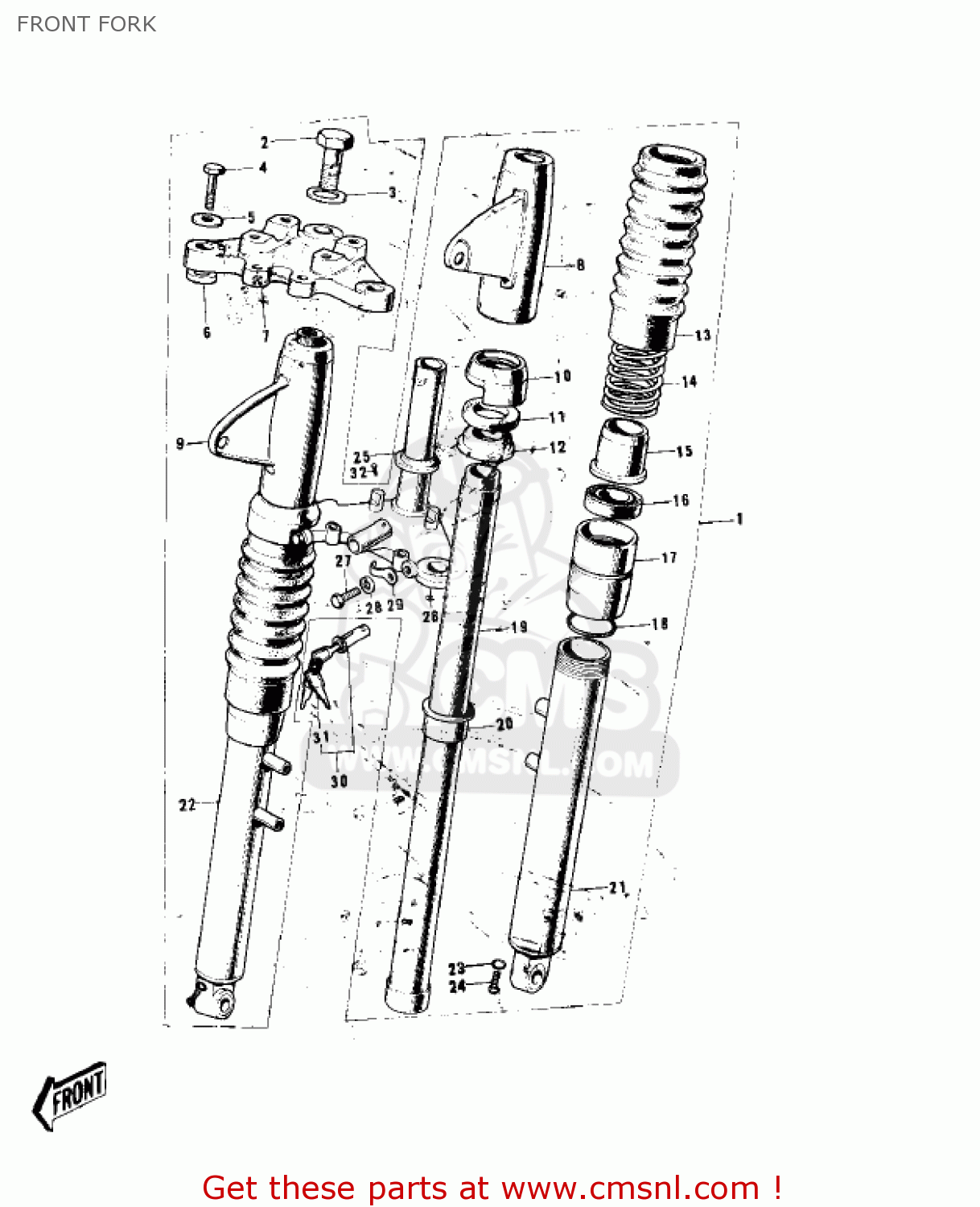

Front fork diagram KH100B8 1977 CANADA
FRONT FORK KH100B8 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
4400117821
ref: 1
FLAT BLACK
FRONT FORK,FLAT BLACK
€ 1,137.50
2
44041007
ref: 2
BOLT-STRNG STEM HEAD
€ 11.50
3
44043032
ref: 3
WASHER-FORK COVER
€ 2.50
3
44043016
ref: 3
KH100-B8
WASHER,FORK UPPER HOL
€ 7.00
4
44041020
ref: 4
BOLT-FORK TOP
€ 7.00
5
44043017
ref: 5
WASHER,FORK TOP
€ 3.50
6
44046002
ref: 6
RING-O,INNER PIPE,UPP (NAS)
€ 3.00
7
44039013
ref: 7
HOLDER-FORK UPPER
€ 103.00
8
4403307721
ref: 8
FLAT BLACK
FORK COVER,LH,FLAT BLACK
€ 95.50
9
4403407721
ref: 9
FLAT BLACK
FORK COVER,RH,FLAT BLACK
€ 95.50
10
44030004
ref: 10
RING-FORK COVER
€ 7.00
11
44045014
ref: 11
GASKET,FORK COVER
€ 2.50
12
44029011
ref: 12
FORK SPRING,GUIDE
€ 8.00
13
44027004
ref: 13
COVER-FORK DUST
€ 31.00
14
44026020
ref: 14
SPRING-FORK
€ 14.00
15
44010015
ref: 15
DUST SHIELD-FORK
€ 5.50
16
44009021
ref: 16
OIL SEAL,FORK
€ 14.00
17
44007008
ref: 17
NUT-FORK OUTER TUBE
€ 23.50
18
44046005
ref: 18
RING-O,OUTER PIPE
€ 5.50
19
44013010
ref: 19
TUBE-FORK INNER
€ 55.00
20
44015003
ref: 20
GUIDE,FORK INNER PIPE
€ 8.50
21
4400502915
ref: 21
METALLIC SILVER
TUBE-L.H OUTER
€ 81.00
22
4400602815
ref: 22
METALLIC SILVER
TUBE-R.H OUTER,SILVER
€ 58.50
23
44045002
ref: 23
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
24
220B0408
ref: 24
SCREW-PAN-CROS
€ 0.50
25
92047004
ref: 25
CONE-LOWER BEARING
€ 13.00
26
44037020
ref: 26
STEM-STEERING
€ 67.50
27
44041010
ref: 27
BOLT-PINCH
€ 5.00
28
461F1000
ref: 28
WASHER-SPRING,10MM
€ 0.50
29
92037022
ref: 29
CLAMP
€ 2.50
30
270165025
ref: 30
LOCK-ASSY,STEERING
€ 23.00
31
2700803421
ref: 31
REF. GRID F5,#27 FOR
KEY SET,#321
€ 22.00
31
2700803422
ref: 31
KEY SET,#322
€ 37.50
31
2700803423
ref: 31
KEY SET,#323
€ 31.00
31
2700803424
ref: 31
KEY SET,#324
€ 39.50
31
2700803425
ref: 31
KEY SET,#325
€ 18.50
31
2700803426
ref: 31
KEY SET,#326
€ 18.50
31
2700803427
ref: 31
KEY SET,#327
€ 18.50
31
2700803428
ref: 31
KEY SET,#328
€ 18.50
31
2700803429
ref: 31
KEY SET,#329
€ 18.50
31
2700803430
ref: 31
KEY SET,#330
€ 18.50
31
2700803435
ref: 31
KEY SET,#235
€ 18.50
31
2700803436
ref: 31
KEY SET,#236
€ 18.50
31
2700803437
ref: 31
KEY SET,#237
€ 20.50
31
2700803438
ref: 31
KEY SET,#238
€ 37.50
31
2700803439
ref: 31
KEY SET,#239
€ 33.50
31
2700803400
ref: 31
KEY SET,#240
€ 18.50
31
2700803440
ref: 31
KEY SET,#140
€ 31.00
31
2700803441
ref: 31
KEY SET,#141
€ 33.00
31
2700803442
ref: 31
KEY SET,#142
€ 37.50
31
2700803443
ref: 31
KEY SET,#143
€ 33.00
32
92099001
ref: 32
SCREW RIVET
€ 2.50
