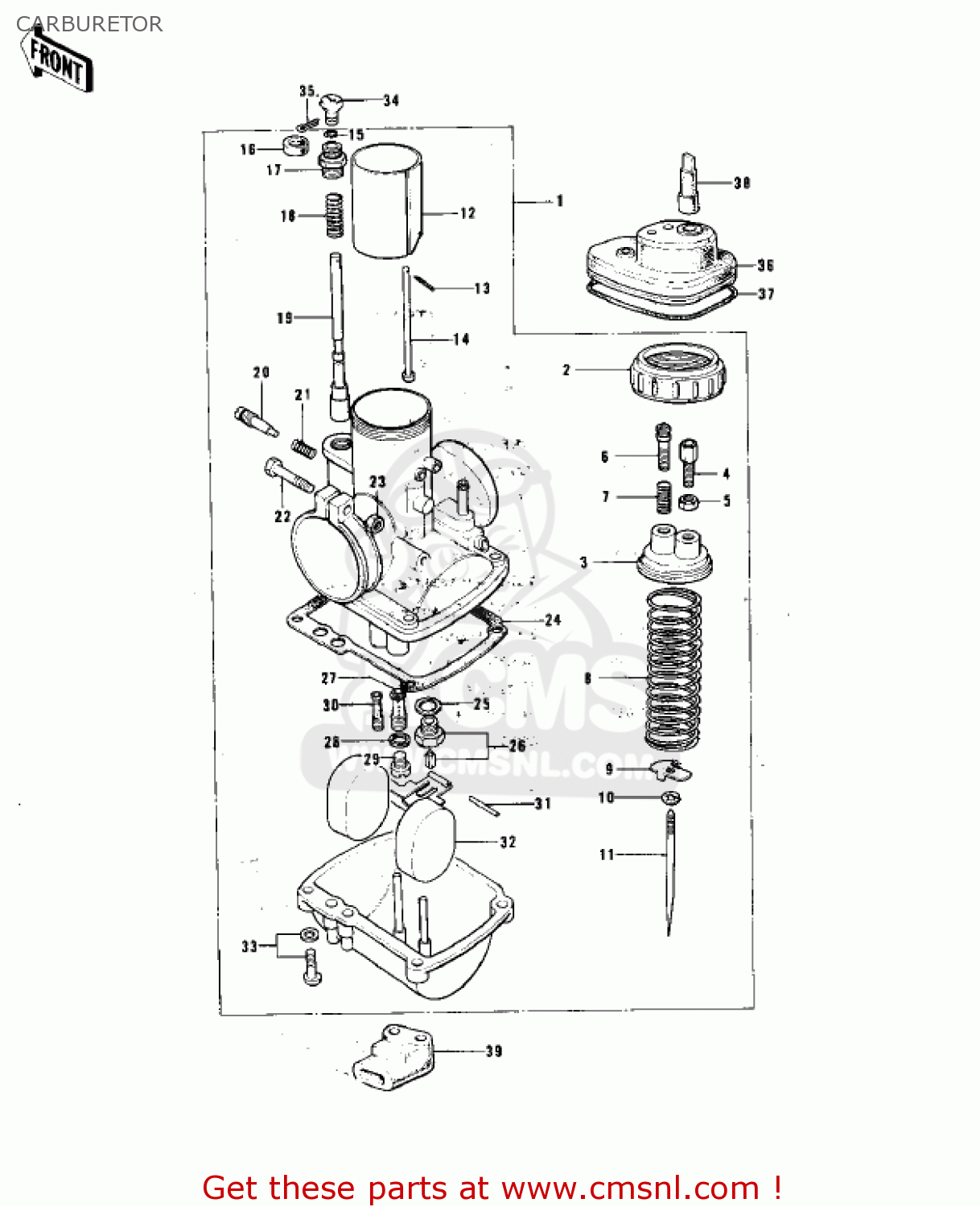

CARBURETOR

ref

part #

description

quantity

1

16001230
ref: 1

CARBURETOR ASSY

€ 184.50

2

16004010
ref: 2

CAP-CHAMBER,MIXING

€ 13.50

3

16005005
ref: 3

TOP-CHAMBER,MIXING

€ 12.50

4

16002002
ref: 4

ADJUSTER-CABLE,STARTE

€ 8.00

4

16002017
ref: 4
KH100-B8

ADJUSTER-CABLE

€ 8.00

5

16003004
ref: 5

NUT-CABLE ADJUST LOCK

€ 4.50

6

16021002
ref: 6

SCREW-THROTTLE STOP

€ 12.00

7

16022005
ref: 7

SPRING-THR STOP SCREW

€ 5.50

8

16006013
ref: 8

SPRING-THROTTLE VALVE

€ 10.00

9

16007020
ref: 9

SEAT-SPRING,THROTTLE

€ 7.00

10

16008010
ref: 10

CLAMP,E-TYPE

€ 5.00

11

16009059
ref: 11

NEEDLE-JET,4EJ7

€ 26.50

12

16025057
ref: 12

VALVE-THROTTLE,CA2.0

€ 80.50

13

550D1210
ref: 13

PIN-COTTER,1.2X10

€ 1.50

14

16024012
ref: 14

ROD,THROTTLE VALVE ST

€ 5.50

15

920371077
ref: 15

CLAMP

€ 3.00

16

16036012
ref: 16

BOOT,STARTER PLUNGER

€ 4.50

17

16012021
ref: 17

CAP-STARTER PLUNGER

€ 11.50

18

16013010
ref: 18

SPRING,STARTER PLUNGR

€ 3.50

19

16016012
ref: 19

PLUNGER,STARTER

€ 28.00

20

16014002
ref: 20

SCREW-PILOT AIR

€ 11.00

21

16022007
ref: 21

SPRING-THR STOP SCREW

€ 5.50

22

16010004
ref: 22

SCREW-CLAMP

€ 3.50

23

311B0600
ref: 23

NUT,6MM

€ 0.50

23

311B0600
ref: 23
KH100-B8

NUT,6MM

€ 0.50

24

16019021
ref: 24

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

25

16029002
ref: 25

WASHER-VALVE SEAT

€ 2.50

26

16030001
ref: 26

VALVE-FLOAT,#2.0

€ 40.50

26

16030009
ref: 26
KH100-B8

VALVE-FLOAT,#1.5

€ 30.50

27

16017068
ref: 27

JET-NEEDLE,O-2

€ 37.50

28

16034001
ref: 28

WASHER-MAIN JET

€ 2.50

29

920631032
ref: 29
STD

JET-MAIN,#A77.5R

€ 10.00

29

92063108
ref: 29
OPTION

JET-MAIN,#72.5R

€ 9.00

29

92063109
ref: 29
OPTION

JET-MAIN,#75R

€ 10.50

29

920631030
ref: 29
OPTION

JET-MAIN,#A80R

€ 11.00

29

92063124
ref: 29
OPTION

MAIN JET,#82.5R

€ 10.50

30

92064020
ref: 30

JET-PILOT,#17.5

€ 13.50

31

16032003
ref: 31

FLOAT PIN

€ 4.00

32

16031015
ref: 32

FLOAT

€ 40.50

33

16033012
ref: 33

SCREW-FLOAT CHAMBER

€ 1.00

34

92077022
ref: 34

KNOB,CARBURETOR

€ 7.00

35

550D1615
ref: 35

PIN-COTTER,1.6X15

€ 1.50

36

14038035
ref: 36

BOOT,CARBURETOR

€ 9.50

37

92081047
ref: 37

SPRING,COIL

€ 7.50

38

16147001
ref: 38

PLUG,12X40

€ 3.00

39

16136007
ref: 39

GROMMET,OVERFLOW PIPE

€ 5.50
