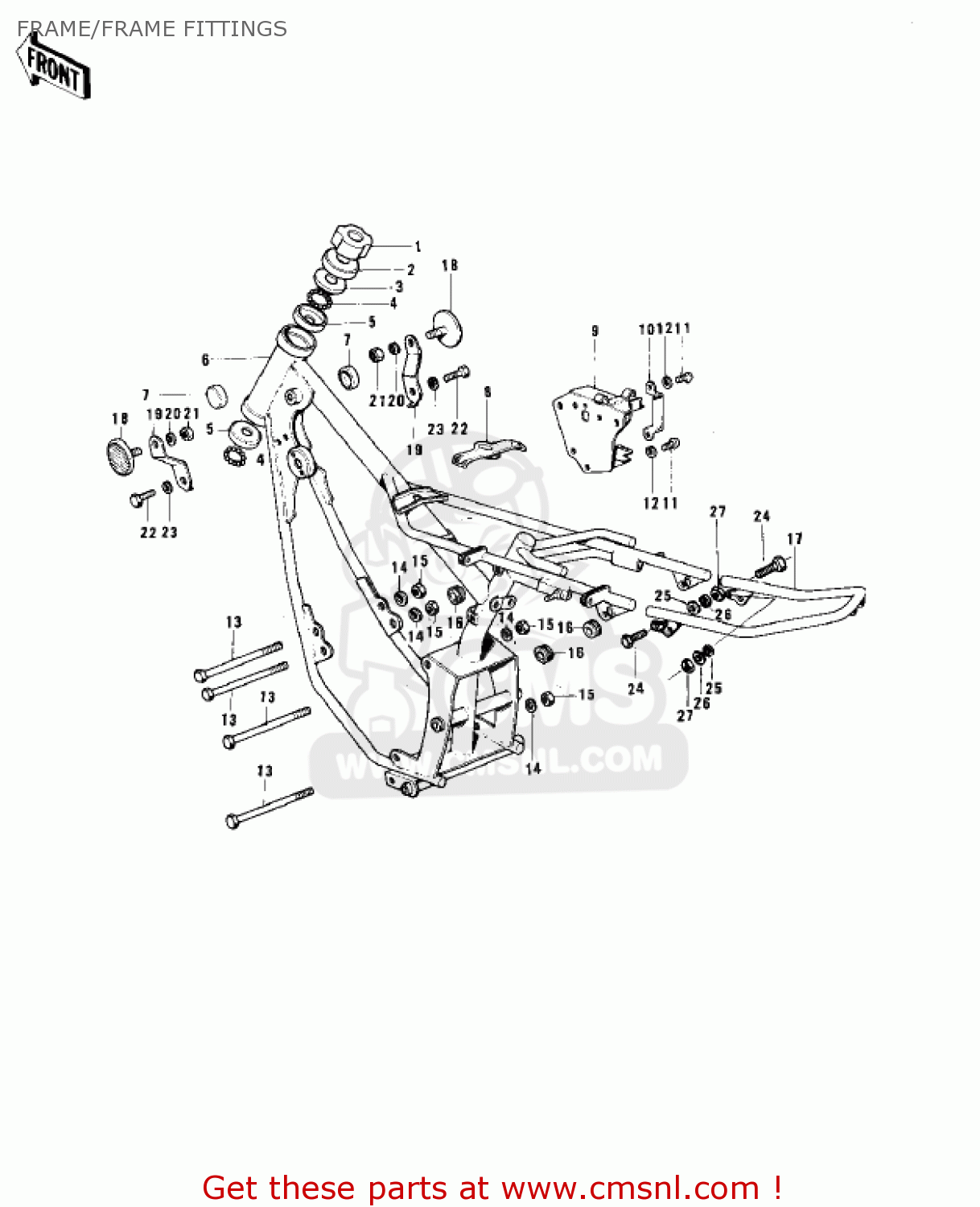

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098004
ref: 2

CAP-STEERING STEM

€ 4.00

3

92047014
ref: 3

RACE,STEERING STEM BE

€ 12.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048009
ref: 5

RACE,STRG STM

€ 14.00

6

32002134
ref: 6

FRAME

€ 1,032.50

7

92075101
ref: 7

DAMPER RUBBER-FL TANK

€ 4.00

8

92075226
ref: 8

FUEL TANK DAMPER,RUBBER

€ 20.00

9

32097040
ref: 9

BATTERY CASE

€ 67.50

10

32100002
ref: 10

BAND-BATTERY

€ 3.00

11

220B0612
ref: 11

SCREW-PAN HEAD,6X12

€ 1.00

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

920011603
ref: 13

BOLT,FLANGED,10X115

€ 7.00

14

461F1000
ref: 14

WASHER-SPRING,10MM

€ 0.50

15

314B1000
ref: 15

NUT,10MM

€ 0.50

16

92071056
ref: 16

GROMMET

€ 2.50

17

35032027
ref: 17

REAR FENDER STAY

€ 118.50

18

28012011
ref: 18

REFLECTOR,REFLEX

€ 30.00

19

28013007
ref: 19

REFLEX REFLECTOR BRACKET

€ 25.00

20

461F0500
ref: 20

WASHER-SPRING,5MM

€ 0.50

21

311B0500
ref: 21

NUT-HEX

€ 0.50

22

112G0612
ref: 22

BOLT-UPSET

€ 2.50

22

112G0612
ref: 22

BOLT-UPSET

€ 2.50

23

461F0600
ref: 23

WASHER-SPRING,6MM

€ 0.50

24

921501488
ref: 24

BOLT

€ 5.50

25

411B0800
ref: 25

WASHER-PLAIN,8MM

€ 0.50

26

461F0800
ref: 26

WASHER-SPRING,8MM

€ 0.50

27

311B0800
ref: 27

NUT,8MM

€ 0.50
