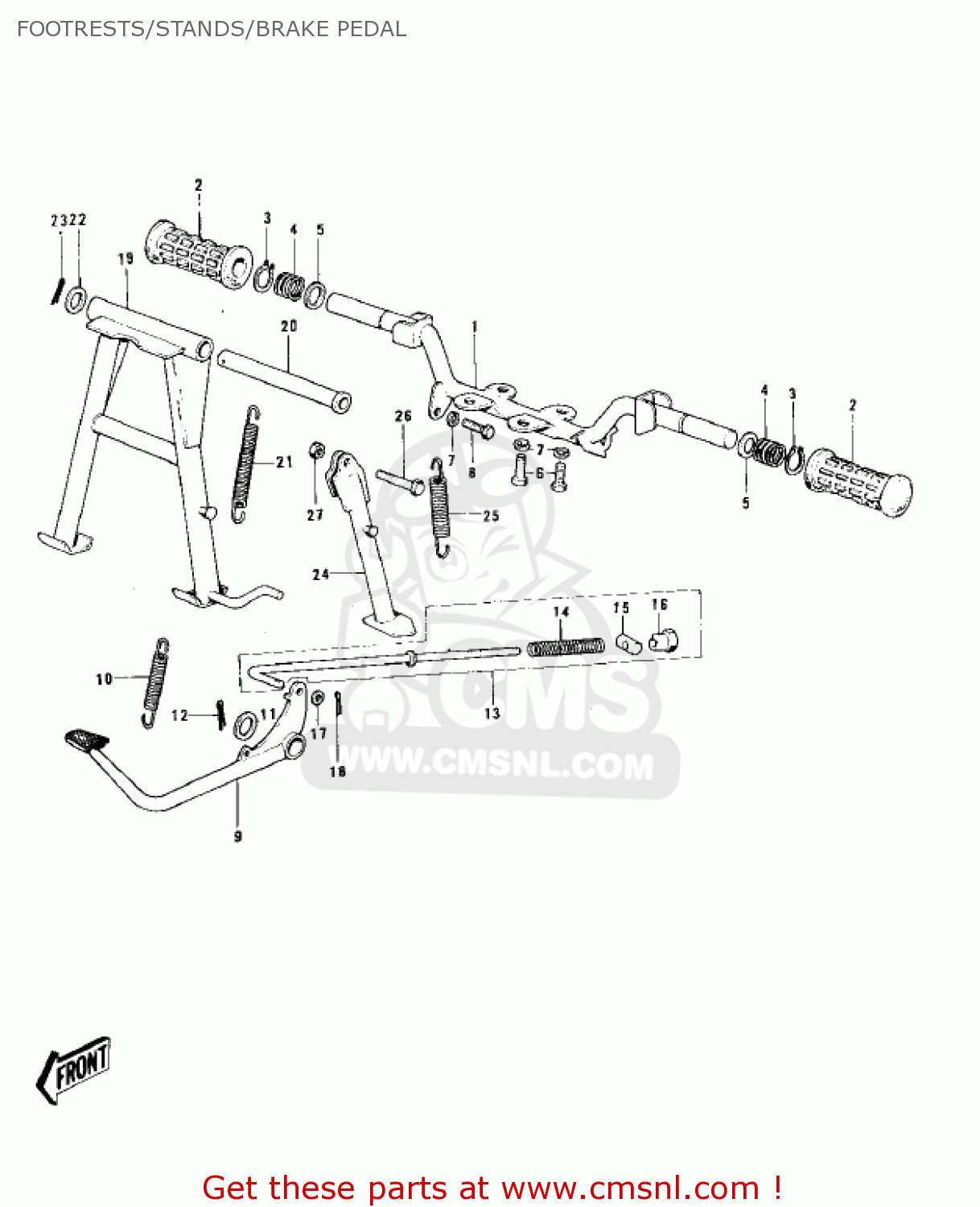

FOOTRESTS/STANDS/BRAKE PEDAL

ref

part #

description

quantity

1

34002048
ref: 1

FOOTREST BAR

€ 123.00

2

92076006
ref: 2

DAMPER,STEP

€ 10.00

3

480J1600
ref: 3

CIRCLIP-TYPE-C,16MM

€ 2.50

4

34006002
ref: 4

SPRING-FOOTREST PEG

€ 3.00

5

92022049
ref: 5

WASHER-FOLDING PEG

€ 2.00

6

115G0816
ref: 6

BOLT-HEX,HEAD 8X16

€ 0.50

6

116B0816
ref: 6

BOLT-HEX HEAD,8X16

€ 0.50

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

8

115G0820
ref: 8

BOLT,8X20

€ 2.00

8

115G0820
ref: 8

BOLT,8X20

€ 2.00

9

43001014
ref: 9

PEDAL-BRAKE

€ 19.50

10

43005005
ref: 10

SPRING-BRAKE PEDAL

€ 3.00

11

92022085
ref: 11

WASHER,15.3X24X1.2

€ 2.50

12

550D3030
ref: 12

PIN-COTTER,3.0X30

€ 1.50

13

430105003
ref: 13

BRAKE ROD ASSY

€ 15.00

14

43012001
ref: 14

SPRING,BRAKE ROD

€ 3.00

15

92043039
ref: 15

PIN,BRAKE ROD

€ 4.50

16

92015042
ref: 16

NUT-BRAKE ROD ADJUST

€ 4.00

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

550D2015
ref: 18

PIN-COTTER,2.0X15

€ 1.00

19

340111045
ref: 19

STAND-CENTER

€ 50.00

20

34019006
ref: 20

SHAFT-MAIN STAND

€ 9.00

21

34023005
ref: 21

SPRING-MAIN STAND

€ 6.50

22

92022085
ref: 22

WASHER,15.3X24X1.2

€ 2.50

23

550D3030
ref: 23

PIN-COTTER,3.0X30

€ 1.50

24

34024053
ref: 24

STAND,SIDE

€ 23.00

24

34024053
ref: 24
KH100-B8

STAND,SIDE

€ 23.00

25

34025001
ref: 25

SPRING,SIDE STAND

€ 9.50

25

34025005
ref: 25
KH100-B8

SPRING-SIDE STAND

€ 5.00

26

113G1025
ref: 26

BOLT-SMALL-FINE,10X25

€ 2.50

27

315B1000
ref: 27

NUT,10MM

€ 0.50
