Genuine KE Kawasaki Parts delivered quickly!


REAR HUB/BRAKE/CHAIN ('82-'83 KE

KE175-D2 KE175 1980 USA CANADA

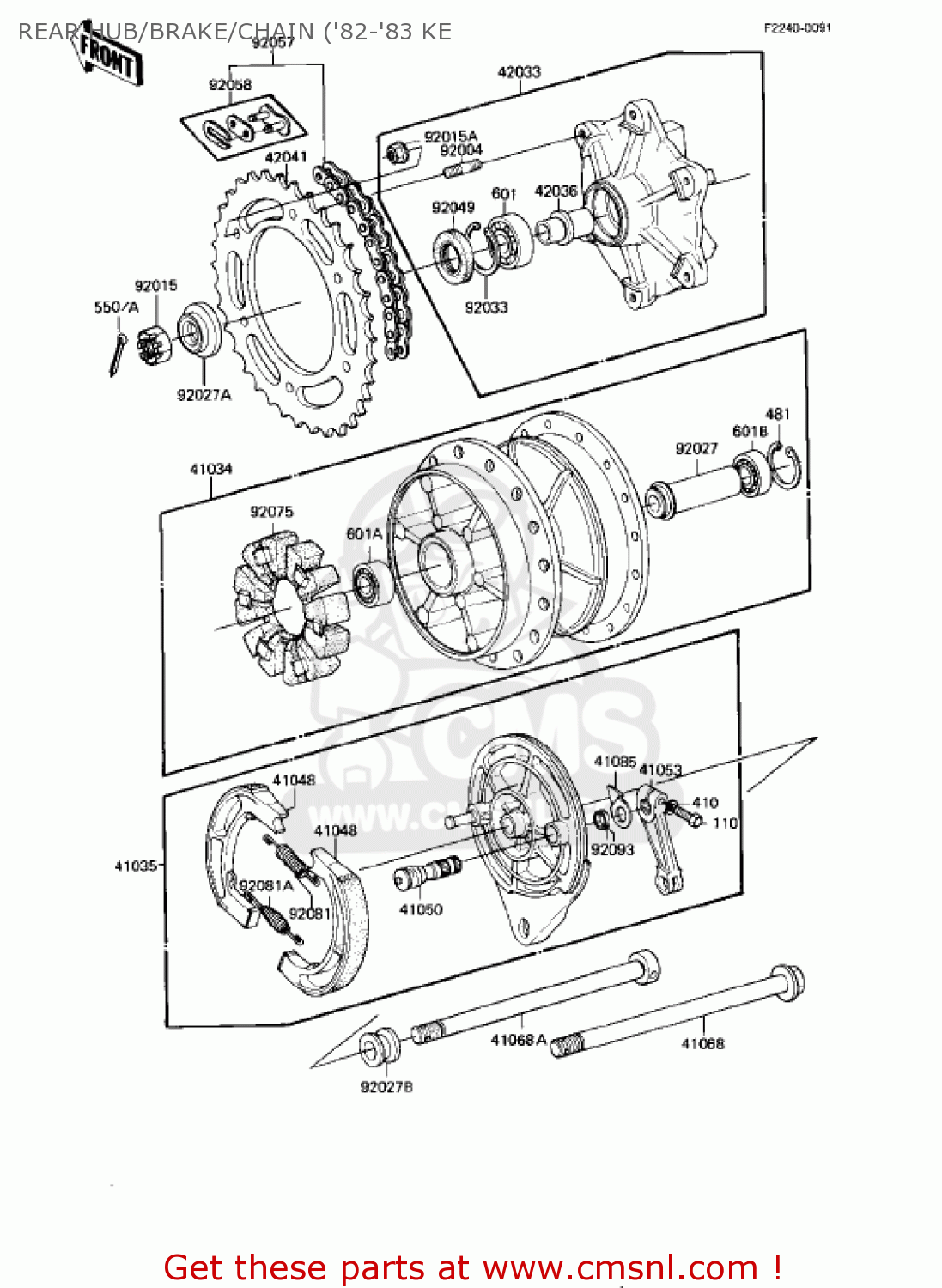

Rear hub/brake/chain ('82-'83 ke diagram KE175-D2 KE175 1980 USA CANADA

REAR HUB/BRAKE/CHAIN ('82-'83 KE KE175-D2 KE175 1980 USA CANADA
REAR HUB/BRAKE/CHAIN ('82-'83 KE KE175-D2 KE175 1980 USA CANADA
REAR HUB/BRAKE/CHAIN ('82-'83 KE KE175-D2 KE175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
41034
410341015
ref: 41034
DRUM ASSY,REAR BRAKE
€ 320.50
41035
410351017
ref: 41035
PANEL ASSY,REAR BRAKE
€ 232.00
41048
410481012
ref: 41048
SHOE,BRAKE (MCA)
410481012
€ 26.00
41050
410501011
ref: 41050
CAM-BRAKE
410501011
€ 25.00
41053
410531013
ref: 41053
LEVER-BRAKE CAM
€ 32.50
41068
410681103
ref: 41068
AXLE,RR,L=266
€ 60.50
41068A
410681103
ref: 41068A
AXLE,RR,L=266
€ 60.50
41085
41085017
ref: 41085
INDICATOR,BRAKE SHOE
€ 7.50
42033
420331007
ref: 42033
COUPLING ASSY,R.HUB
420331007
€ 113.00
42036
420361020
ref: 42036
SLEEVE,RR HUB COUPLIN
€ 15.50
42041
420411050
ref: 42041
SPROCKET,REAR,44T
420411050
€ 29.50
92004
920041015
ref: 92004
STUD,8X17
920041015
€ 2.50
92015
42045020
ref: 92015
NUT,14MM
42045020
€ 6.50
92015A
920151022
ref: 92015A
NUT, 8MM
920151022
€ 0.50
92027
920271099
ref: 92027
COLLAR,L=86
920271099
€ 13.00
92027A
920271100
ref: 92027A
COLLAR,AXLE,RR,L=21
€ 16.00
92027B
920271101
ref: 92027B
COLLAR,R.AXLE,L=16M/M
€ 8.00
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92049
92050060
ref: 92049
OIL SEAL,RR HUB BRNK
92050060
€ 12.00
92057
920571096
ref: 92057
CHAIN,DRV,EK428SH-PG
€ 36.00
92058
920581015
ref: 92058
JOINT-CHAIN,EK428SH
920581015
€ 3.50
92075
920751068
ref: 92075
DAMPER,SHOCK,RR HUB
920751068
€ 34.50
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
920811766
€ 5.50
92081A
920811550
ref: 92081A
SPRING,BRAKE SHOE
920811550
€ 6.00
92093
41051001
ref: 92093
DUST SHIELD-BRAKE CAM
41051001
€ 2.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
112G0625
€ 4.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
481J3500
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
550A
550D3030
ref: 550A
PIN-COTTER,3.0X30
550D3030
€ 1.50
601
601B6004
ref: 601
BEARING-BALL,#6004C3
601B6004
€ 10.50
601A
601B6202
ref: 601A
BEARING-BALL,#6202C3
601B6202
€ 14.50
601B
601B6202U
ref: 601B
BEARING-BALL,#6202UC3
601B6202U
€ 19.50
