METER ('82-'83 KE175-D4/D5)
KE175-D2 KE175 1980 USA CANADA

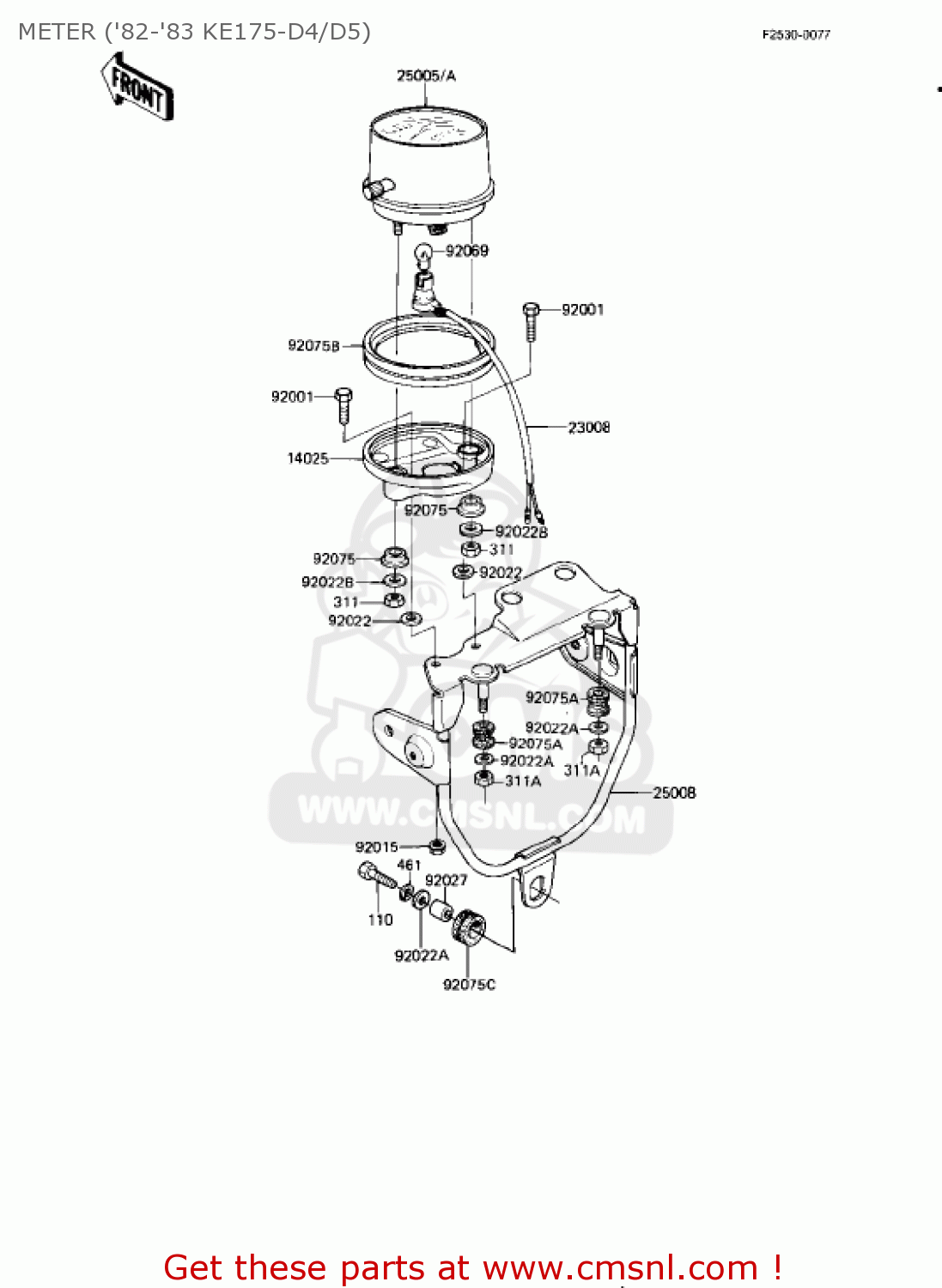

Meter ('82-'83 ke175-d4/d5) diagram KE175-D2 KE175 1980 USA CANADA
METER ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
14025
140251075
ref: 14025
COVER,METER
€ 18.50
23008
25010021
ref: 23008
SOCKET-ASSY,SPEEDOMET
€ 12.00
25005
250051049
ref: 25005
US
SPEEDOMETER,MPH
€ 221.50
25005A
250051050
ref: 25005A
CN
SPEEDOMETER,KPH
€ 240.00
25008
250081009
ref: 25008
BRACKET-METER
€ 31.00
92001
92003204
ref: 92001
BOLT
€ 3.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
920221039
ref: 92022
WASHER,METER,6MM
€ 2.00
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92022B
92022263
ref: 92022B
WASHER,PLAIN,6MM
€ 1.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069053
ref: 92069
BULB 6V 3W
€ 3.00
92075
25019023
ref: 92075
DAMPER RUBBER,METER
€ 2.50
92075A
92075024
ref: 92075A
DAMPER
€ 2.50
92075B
920751102
ref: 92075B
DAMPER,METER
€ 13.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
311A
311B0600
ref: 311A
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
