CRANKCASE ('82-'83 KE175-D4/D5)

KE175-D2 KE175 1980 USA CANADA

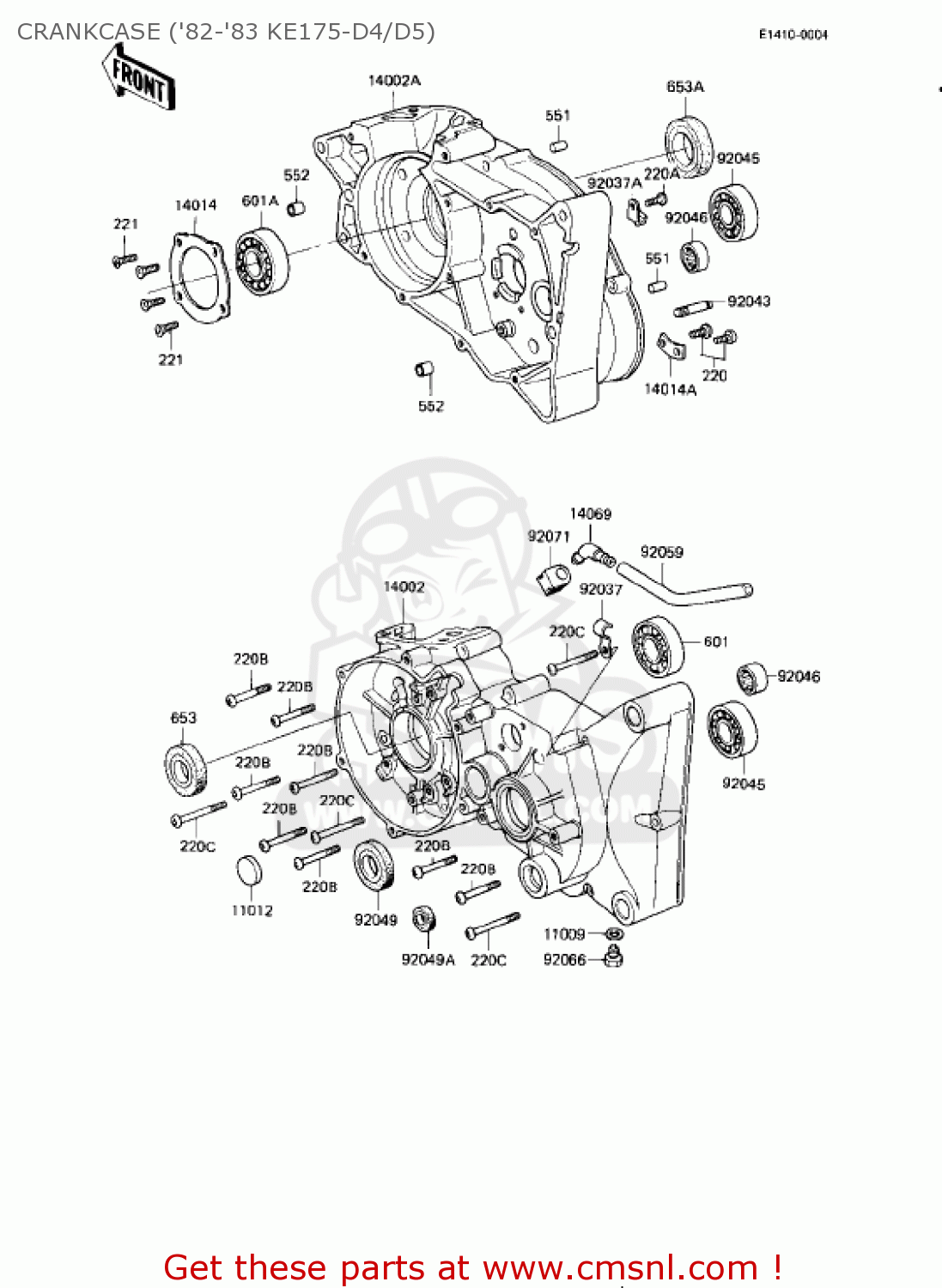

Crankcase ('82-'83 ke175-d4/d5) diagram KE175-D2 KE175 1980 USA CANADA

CRANKCASE ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA

CRANKCASE ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

11012

110121040
ref: 11012

CAP,DRIVE SHAFT SEAL

€ 4.50

14002

140021023
ref: 14002

CRANKCASE,LH,F.BLACK

€ 370.00

14002A

140021079
ref: 14002A

CRANKCASE,RH,F.BLACK

€ 370.00

14014

14014021
ref: 14014

HOLDER-CRANK BEARING

€ 2.00

14014A

14014022
ref: 14014A

HOLDER-MISSION BERNG

€ 2.00

14069

140691001
ref: 14069

BREATHER

€ 17.50

92037

92037016
ref: 92037

CLAMP,WIRING HARNESS

€ 1.50

92037A

92037157
ref: 92037A

CLAMP,OIL PIPE

€ 2.00

92043

92043117
ref: 92043

PIN,KICK PEDAL

€ 5.50

92045

920451046
ref: 92045

BEARING-BALL,6204C3

€ 22.00

92046

92046026
ref: 92046

BEARING-NEEDLE,#7E-HK

€ 24.50

92049

92050039
ref: 92049

OIL SEAL SC30426

€ 9.00

92049A

92051005A
ref: 92049A

OIL SEAL,TB13225.5

€ 5.50

92059

92059061
ref: 92059

PIPE-BREATHER

€ 3.00

92066

92067001
ref: 92066

PLUG-OIL DRAIN

€ 3.00

92071

92071042
ref: 92071

GROMMET

€ 2.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220B0614
ref: 220A

SCREW-PAN HEAD,6X14

€ 2.00

220B

220B0640
ref: 220B

SCREW-PAN HEAD,6X40

€ 2.00

220C

220B0660
ref: 220C

SCREW-PAN HEAD,6X60

€ 2.50

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

551

551A0816
ref: 551

PIN-DOWEL,8X16

€ 0.50

552

552B1012
ref: 552

PIN,DOWEL,6.5X10X12

€ 1.00

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

601A

601B6305
ref: 601A

BEARING-BALL,#6305C3

€ 30.00

653

920491250
ref: 653

SEAL-OIL

€ 12.00

653A

653B324507
ref: 653A

OIL SEAL,TB32457

€ 11.50
