HEADLIGHT ('82-'83 KE175-D4/D5)

KE175-D2 KE175 1980 USA CANADA

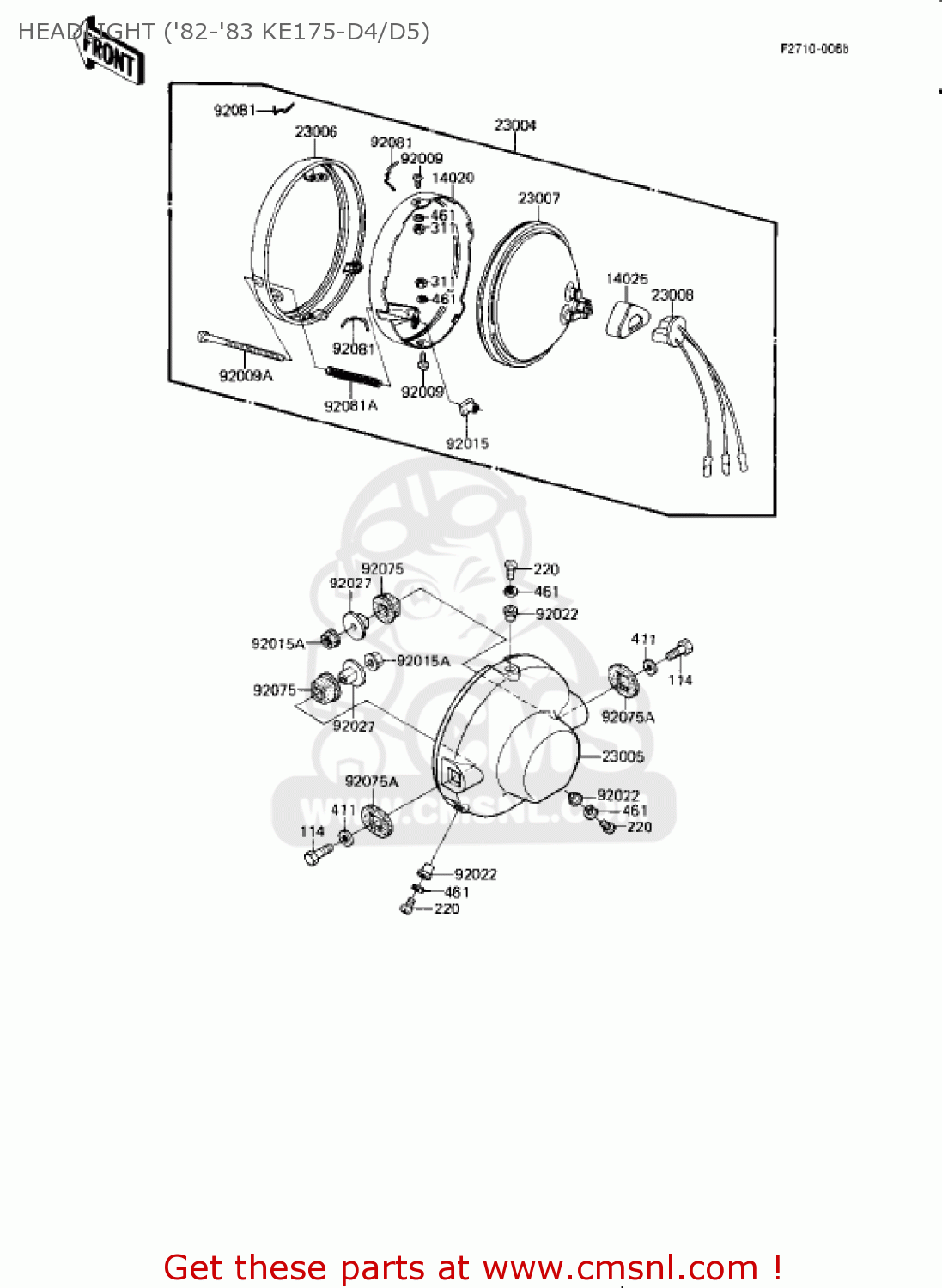

Headlight ('82-'83 ke175-d4/d5) diagram KE175-D2 KE175 1980 USA CANADA

HEADLIGHT ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA
HEADLIGHT ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA
HEADLIGHT ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
14020
23072002
ref: 14020
RETAINER,SEALED BEAM
23072002
€ 29.50
14025
23081001
ref: 14025
COVER,HD LAMP SOCKET
23081001
€ 6.50
23004
230041018
ref: 23004
HEADLAMP,UNIT
€ 135.50
23005
2300510076Z
ref: 23005
BODY-COMP-HEAD LAMP,B
2300510076Z
€ 71.50
23006
230061004
ref: 23006
RIM-LAMP
€ 56.00
23007
23007073
ref: 23007
SEALED BEAM UNIT
23007073
€ 229.50
23008
23008044
ref: 23008
SOCKET-ASSY,HEAD LAMP
23008044
€ 15.00
92009
23019026
ref: 92009
SCREW,LENS FITTING
23019026
€ 3.00
92009A
23019027
ref: 92009A
SCREW,FOCUS ADJUSTING
€ 3.00
92015
23020012
ref: 92015
NUT,ADJUSTING
23020012
€ 2.50
92015A
920151014
ref: 92015A
NUT,8MM
920151014
€ 0.50
92022
23021010
ref: 92022
WASHER
23021010
€ 2.50
92027
920271105
ref: 92027
COLLAR,L=15.6
920271105
€ 4.50
92075
920751077
ref: 92075
DAMPER,HEAD LAMP
920751077
€ 3.00
92075A
920751078
ref: 92075A
DAMPER,HEAD LAMP
920751078
€ 3.00
92081
23009015
ref: 92081
SPRING,HEAD LAMP LENS
23009015
€ 3.50
92081A
23014012
ref: 92081A
SPRING,FOCUS ADJUST
€ 3.50
114
114N0830
ref: 114
BOLT-SMALL,8X30
€ 2.50
220
220B0512
ref: 220
SCREW-PAN-CROS
220B0512
€ 0.50
311
311B0400
ref: 311
NUT-HEX,4MM
311B0400
€ 0.50
411
411D0800
ref: 411
WASHER,PLAIN,8MM
€ 2.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
