FENDERS ('82-'83 KE175-D4/D5)
KE175-D2 KE175 1980 USA CANADA

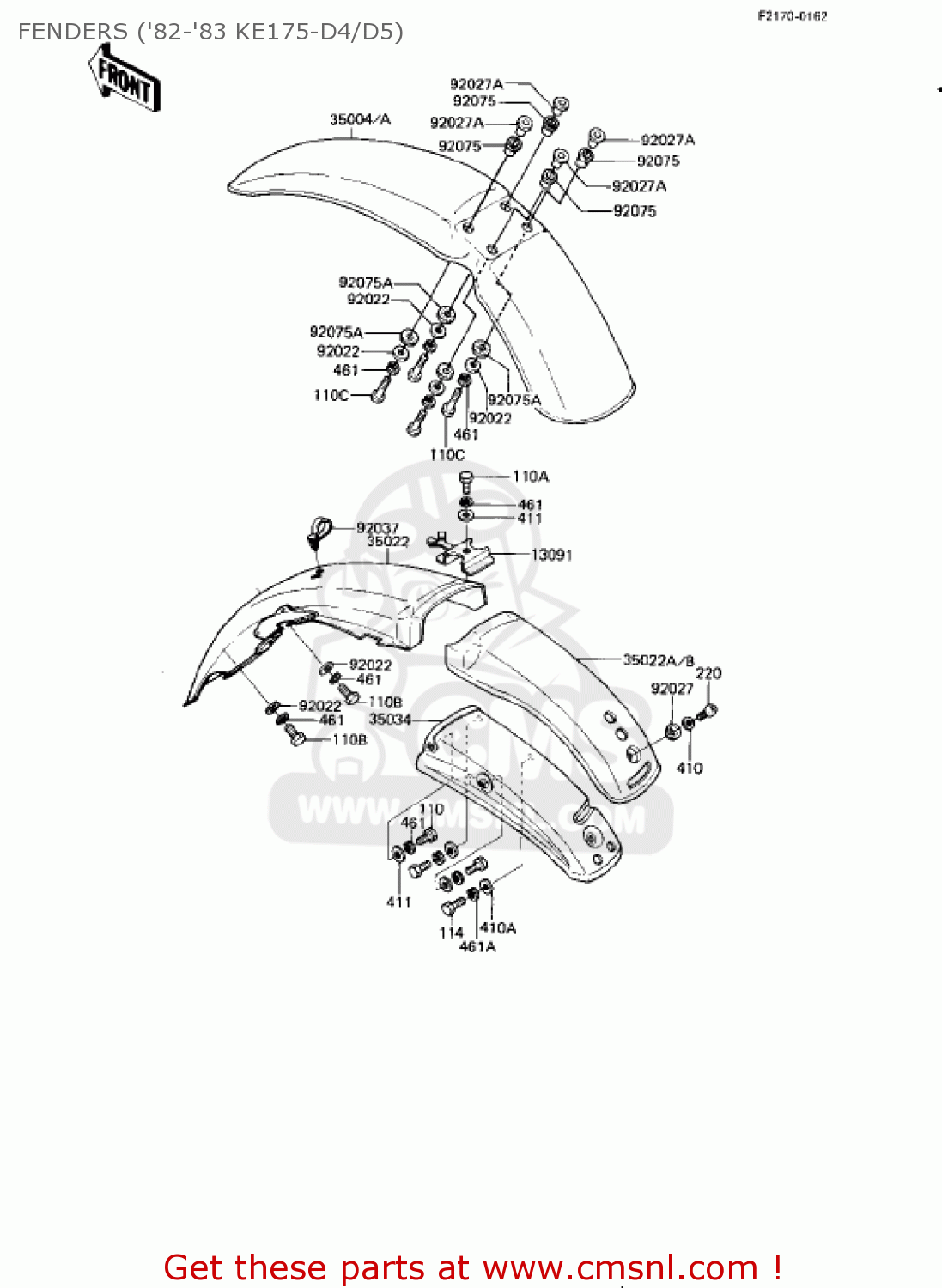

Fenders ('82-'83 ke175-d4/d5) diagram KE175-D2 KE175 1980 USA CANADA
FENDERS ('82-'83 KE175-D4/D5) KE175-D2 KE175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13091
130911022
ref: 13091
HOLDER,HARNESS
€ 6.50
35004
3500410246C
ref: 35004
FENDER-FRONT,EBONY (Canada)
€ 0.00
35004A
3500410246L
ref: 35004A
FENDER,FRONT,F.RED
€ 44.00
35022
350221017
ref: 35022
FENDER-COMP-REAR,FR
€ 45.50
35022A
3502210186C
ref: 35022A
FENDER-COMP-REAR,RR,EBONY (Can
€ 0.00
35022B
3502210186L
ref: 35022B
FENDER,REAR,F.RED
€ 42.00
35034
350341029
ref: 35034
REINFORCE,R.FENDER
€ 43.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271018
ref: 92027
COLLAR,L=3.5
€ 3.00
92027A
92027194
ref: 92027A
COLLAR
€ 3.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92075
92075103
ref: 92075
DAMPER
€ 2.50
92075A
92075121
ref: 92075A
DAMPER,FENDER
€ 2.50
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112B0614
ref: 110A
BOLT-UPSET 6X14
€ 2.50
110B
112G0616
ref: 110B
BOLT UPSET,6X16
€ 1.00
110C
112G0625
ref: 110C
BOLT-UPSET,6X25
€ 4.00
114
115G0818
ref: 114
BOLT SMALL-UPSET
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
410A
410B0800
ref: 410A
WASHER-PLAIN-SMALL,8M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
