CHASSIS ELECTRICAL EQUIPMENT ('8

KE175-D2 KE175 1980 USA CANADA

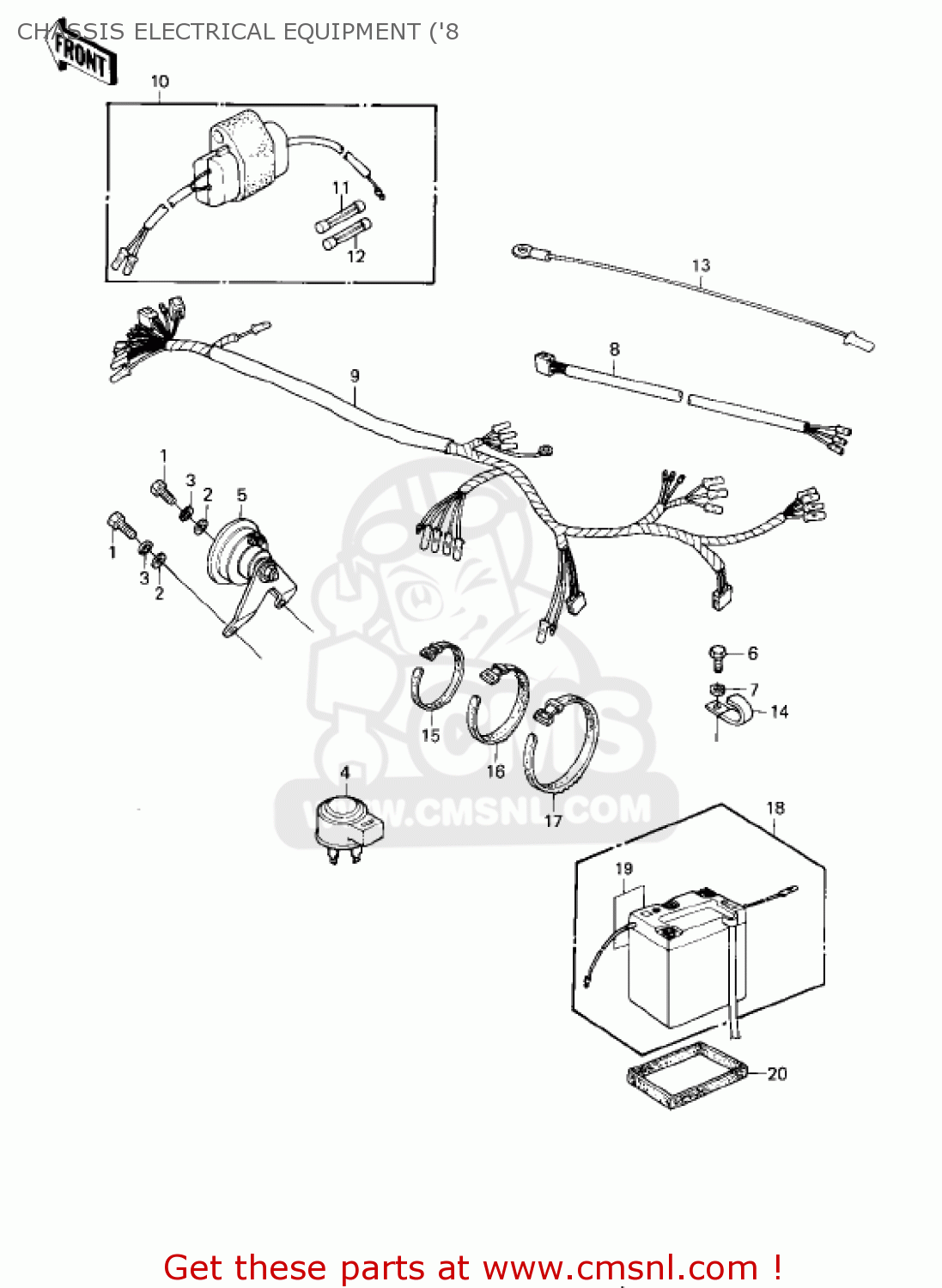

Chassis electrical equipment ('8 diagram KE175-D2 KE175 1980 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KE175-D2 KE175 1980 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE175-D2 KE175 1980 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE175-D2 KE175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
112G0616
ref: 1
BOLT UPSET,6X16
112G0616
€ 1.00
2
411B0600
ref: 2
WASHER-PLAIN,6MM
411B0600
€ 0.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
461F0600
€ 0.50
4
27002013
ref: 4
RELAY-ASSY,TURN SIGNA
27002013
€ 27.00
5
270031008
ref: 5
HORN
€ 36.00
6
112G0612
ref: 6
BOLT-UPSET
112G0612
€ 2.50
7
461F0600
ref: 7
WASHER-SPRING,6MM
461F0600
€ 0.50
8
260011007
ref: 8
HARNESS,TAIL LAMP
260011007
€ 10.50
9
260011049
ref: 9
WIRING HARNESS,MAIN
€ 116.50
10
260041010
ref: 10
FUSE-ASSY
260041010
€ 19.50
11
260061002
ref: 11
FUSE,10A,L=30M/M
260061002
€ 3.00
12
260061003
ref: 12
FUSE,15A,L=30M/M
260061003
€ 3.00
13
26011093
ref: 13
WIRE-LEAD
26011093
€ 6.00
14
920371069
ref: 14
CLAMP,L=60
920371069
€ 1.50
15
92072030
ref: 15
BAND,SHORT
92072030
€ 3.00
16
92072031
ref: 16
BAND,MIDDLE
92072031
€ 3.00
17
92072032
ref: 17
BAND,LONG
92072032
€ 3.00
18
K260121016
ref: 18
BATTERY,GS,6N6-1C
€ 12.50
19
560401036
ref: 19
WARNING, BATTERY
€ 2.00
20
32103023
ref: 20
DAMPER,BATTERY BOTTOM
€ 2.50
