CLUTCH ('80-'81 KE175-D2/D3)
KE175-D2 KE175 1980 USA CANADA

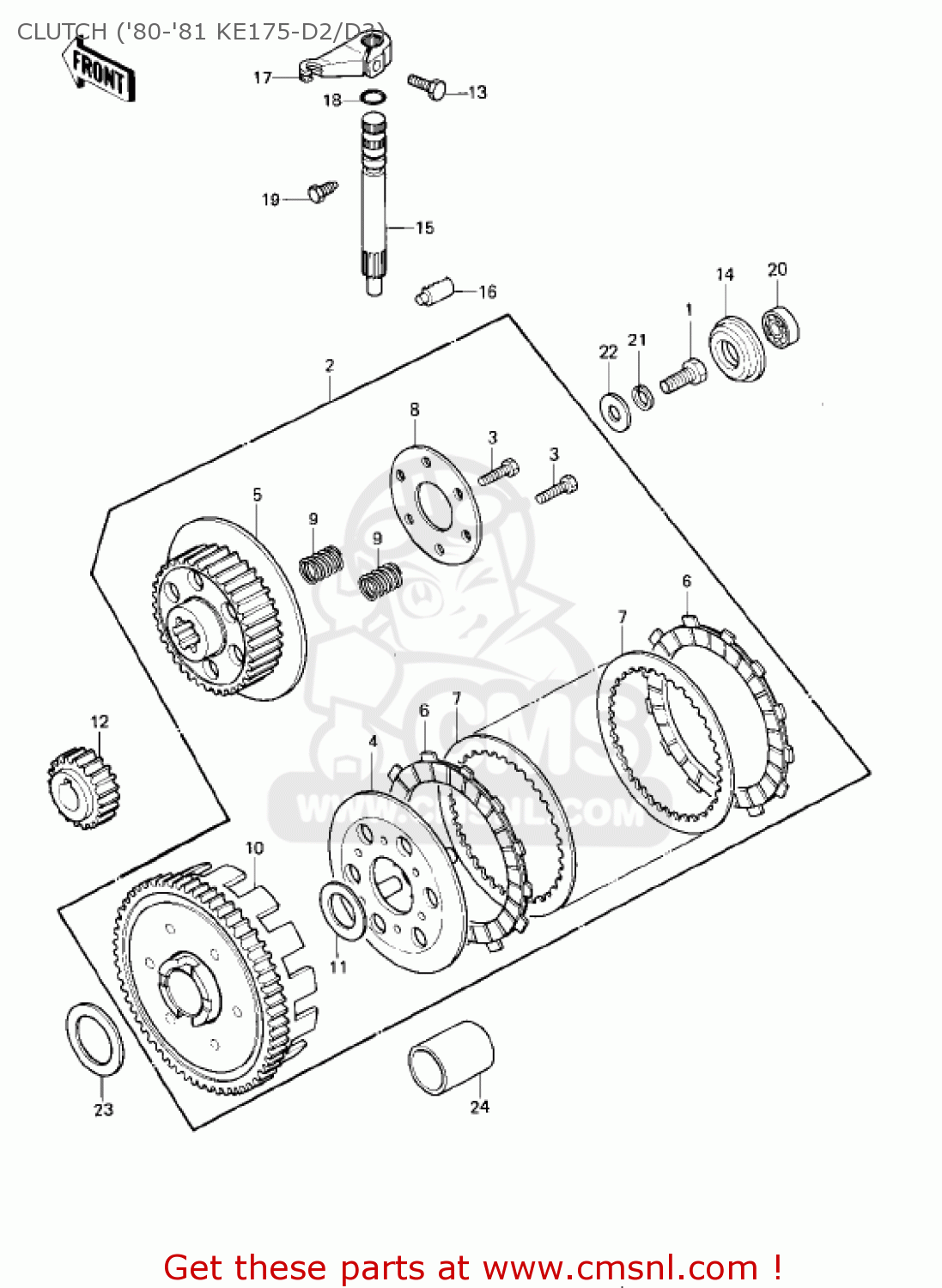

Clutch ('80-'81 ke175-d2/d3) diagram KE175-D2 KE175 1980 USA CANADA
CLUTCH ('80-'81 KE175-D2/D3) KE175-D2 KE175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
113G1022
ref: 1
BOLT,HEX HEAD,10X22
€ 2.50
2
130811050
ref: 2
CLUTCH-ASSY
€ 253.00
2
130811050
ref: 2
E/NO.003949~
CLUTCH-ASSY
€ 253.00
3
110G0520
ref: 3
BOLT
€ 2.50
4
13086017
ref: 4
WHEEL-CLUTCH
€ 25.00
5
13087041
ref: 5
HUB-CLUTCH
€ 37.50
6
130881015
ref: 6
PLATE-FRICTION (NAS)
€ 11.50
7
13089003
ref: 7
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
8
130911017
ref: 8
HOLDER,CLUTCH SPRING
€ 7.00
9
920811174
ref: 9
SPRING,CLUTCH
€ 2.50
10
130951024
ref: 10
HOUSING-COMP-CLUTCH
€ 277.00
11
92022168
ref: 11
WASHER-CLUTCH THRUST
€ 6.50
12
130971006
ref: 12
GEAR-PRIMARY SPUR,24T
€ 94.50
13
112G0618
ref: 13
BOLT-UPSET
€ 0.50
14
130911018
ref: 14
HOLDER,CLUTCH PUSHER
€ 8.00
15
131061002
ref: 15
SHAFT-CLUTCH RELEASE
€ 28.00
16
131141003
ref: 16
PUSHER,CHUTCH
€ 10.50
17
131681023
ref: 17
LEVER,CLUTCH RELEASE
€ 22.00
18
670B1509
ref: 18
O RING,9MM
€ 1.00
19
92003130
ref: 19
BOLT,CLUTCH RELEASE
€ 3.50
20
920451211
ref: 20
BEARING-BALL
€ 11.00
21
461F1000
ref: 21
WASHER-SPRING,10MM
€ 0.50
22
920221088
ref: 22
WASHER,10.2X28X2
€ 3.00
23
92022168
ref: 23
WASHER-CLUTCH THRUST
€ 6.50
24
92028014
ref: 24
BUSH-CLUTCH
€ 27.50
