FRONT FORK ('80-'81 KE175-D2/D3)

KE175-D2 KE175 1980 USA CANADA

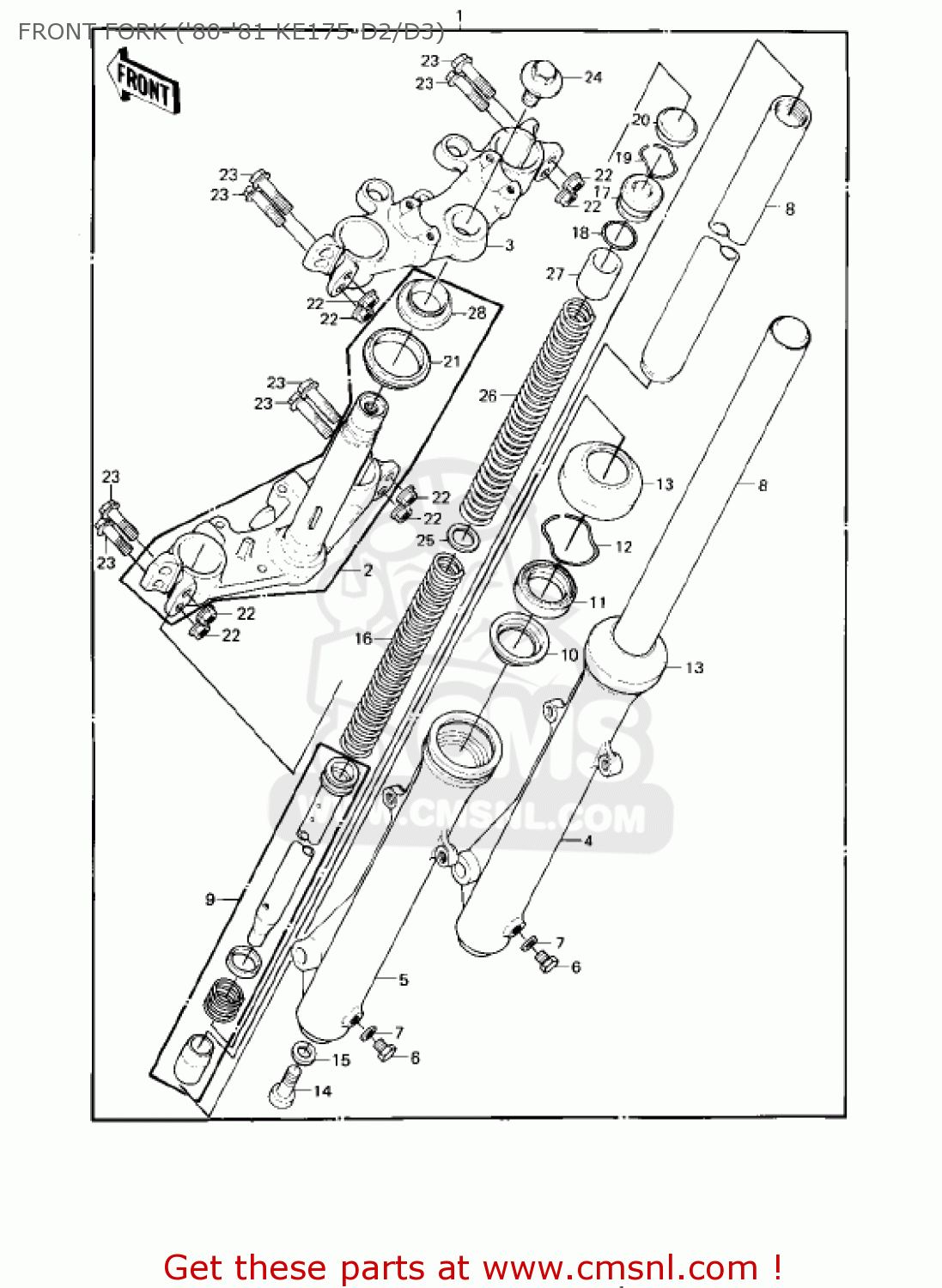

Front fork ('80-'81 ke175-d2/d3) diagram KE175-D2 KE175 1980 USA CANADA

FRONT FORK ('80-'81 KE175-D2/D3) KE175-D2 KE175 1980 USA CANADA

FRONT FORK ('80-'81 KE175-D2/D3) KE175-D2 KE175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

440011417
ref: 1

FORK-FRONT

€ 658.50

2

440371012
ref: 2

STEM,STEERING

€ 177.00

3

440391020
ref: 3

HEAD,STEERING STEM

€ 115.50

4

440061017
ref: 4

TUBE,R.H,FORK OUTER

€ 113.50

5

440051113
ref: 5

PIPE-LEFT FORK OUTER

€ 148.00

6

110B0608
ref: 6

BOLT-HEX HEAD,6X8

€ 0.50

7

44045047
ref: 7

GASKET,DRAIN PLUG (NAS)

€ 6.00

8

440131014
ref: 8

TUBE,FORK INNER

€ 179.50

9

440221015
ref: 9

CYLINDER FORK

€ 43.50

10

920261028
ref: 10

SPACER,OUTER TUBE

€ 4.50

11

920491268
ref: 11

SEAL-OIL,FORK

€ 25.50

12

920331022
ref: 12

RING,OIL SEAL STOPPER

€ 4.00

13

920931017
ref: 13

DUST SHIELD,FORK

€ 18.50

14

44041078
ref: 14

BOLT, FORK CYLINDER

€ 6.50

15

44045051
ref: 15

GASKET,FORK CYLINDER (NAS)

€ 4.00

16

440261019
ref: 16

SPRING,FORK LOWER

€ 17.00

17

440291012
ref: 17

SEAT,FORK SPRING

€ 14.00

18

920551060
ref: 18

RING-O,SPRING SEAT

€ 3.50

19

920331023
ref: 19

CIRCLIP

€ 3.00

20

110121061
ref: 20

CAP,RUBBER,FORK TOP

€ 9.50

21

44010027
ref: 21

SEAL,STEERING STEM

€ 7.50

22

920151055
ref: 22

NUT,8M/M

€ 3.00

23

920011136
ref: 23

BOLT,8X45

€ 7.00

24

920011741
ref: 24

BOLT,STEERING STEM HD

€ 6.50

25

440281005
ref: 25

WASHER,FORK SPRING

€ 2.50

26

440261034
ref: 26

SPRING,FORK,UPPER

€ 17.00

27

920261054
ref: 27

COLLAR,FORK SPRING

€ 6.50

28

92047010
ref: 28

CONE-STERNG BERG LOW

€ 10.00
