SWINGARM
KDX200-C3 1988 UNITED KINGDOM AL

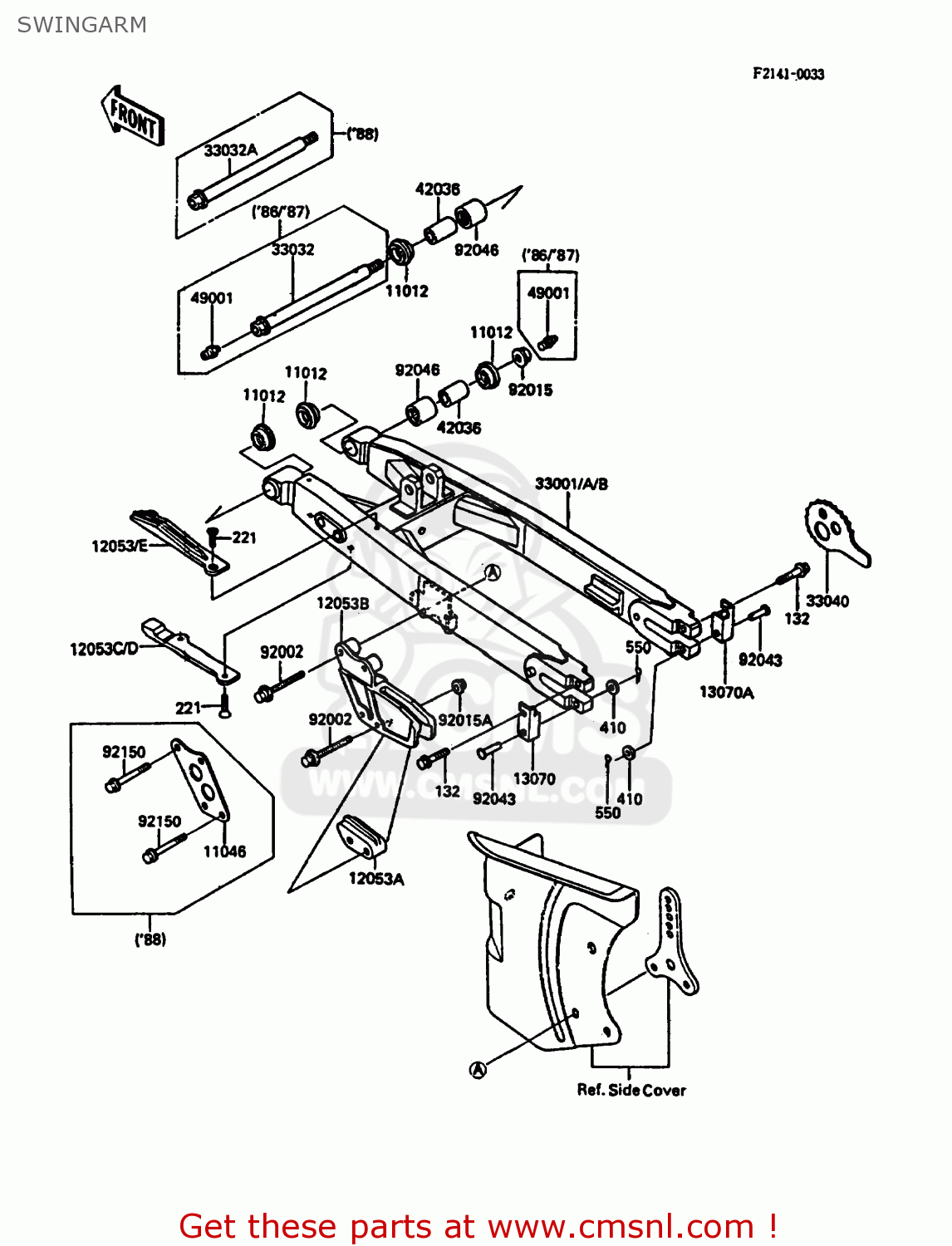

Swingarm diagram KDX200-C3 1988 UNITED KINGDOM AL
SWINGARM KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
11012
110121259
ref: 11012
CAP,SWING ARM
€ 15.00
11046
110451922
ref: 11046
BRACKET
€ 12.00
12053A
120531105
ref: 12053A
GUIDE-CHAIN,RR,INSIDE
€ 27.50
12053B
120531124
ref: 12053B
GUIDE-CHAIN,RR
€ 67.00
12053D
120531208
ref: 12053D
GUIDE-CHAIN,FR,LWR
€ 22.50
12053E
120531213
ref: 12053E
GUIDE-CHAIN,FR,UPP
€ 27.00
13070
130701141
ref: 13070
GUIDE,LH
€ 3.50
13070A
130701142
ref: 13070A
GUIDE,RH
€ 3.50
33001B
330011305
ref: 33001B
ARM-COMP-SWING
€ 524.00
33032A
330321138
ref: 33032A
SHAFT-SWING ARM
€ 31.00
33040
330401067
ref: 33040
ADJUSTER-CHAIN
€ 17.50
42036
420361171
ref: 42036
SLEEVE,L=36
€ 13.50
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92043
92043107
ref: 92043
PIN,6X17
€ 4.50
92046
920461128
ref: 92046
BEARING-NEEDLE,TA2030
€ 25.00
92150
921501001
ref: 92150
BOLT,FLANGED,6X52
€ 3.00
