FRONT BRAKE
KDX200-C3 1988 UNITED KINGDOM AL

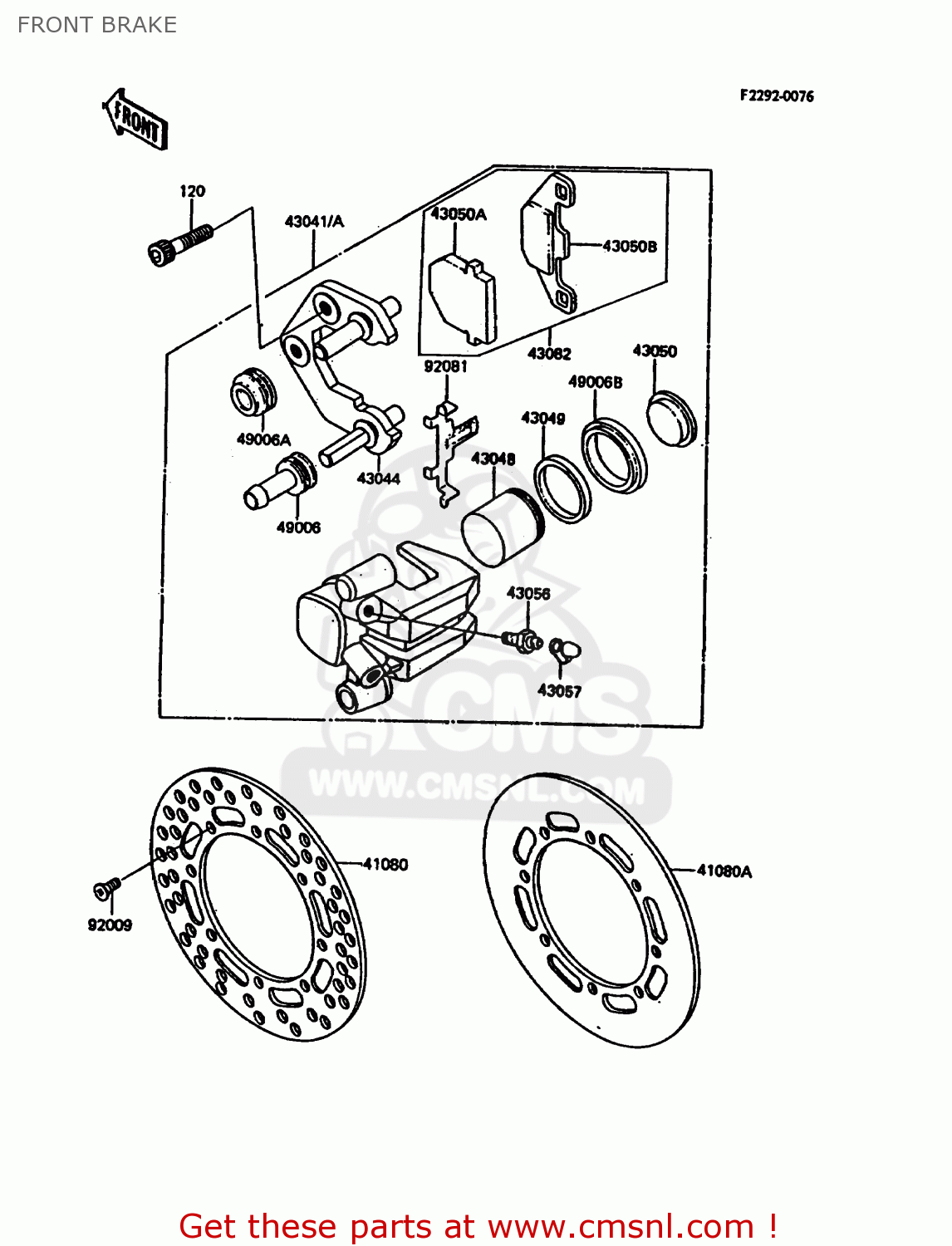

Front brake diagram KDX200-C3 1988 UNITED KINGDOM AL
FRONT BRAKE KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
120
120P0820
ref: 120
BOLT-SOCKET
€ 2.50
41080
410801147
ref: 41080
DISC,FR
€ 200.50
41080A
410801188
ref: 41080A
DISC,FR
€ 191.00
43041A
430411242
ref: 43041A
CALIPER-ASSY
€ 279.50
43044
430441034
ref: 43044
HOLDER-COMP-CALIPER
€ 98.50
43048
430481010
ref: 43048
PISTON-CALIPER
€ 66.50
43049
430491027
ref: 43049
PACKING,CALIPER (NAS)
€ 9.00
43050
430501051
ref: 43050
PAD-BRAKE
€ 14.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821084
ref: 43082
PAD-ASSY-BRAKE
€ 42.50
49006
490061054
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
€ 4.50
49006B
490061093
ref: 49006B
BOOT,CALIPER
€ 11.00
92009
920091375
ref: 92009
SCREW,6X10
€ 2.50
92081
920811341
ref: 92081
SPRING
€ 10.00
