GEAR CHANGE MECHANISM
KDX200-C3 1988 UNITED KINGDOM AL

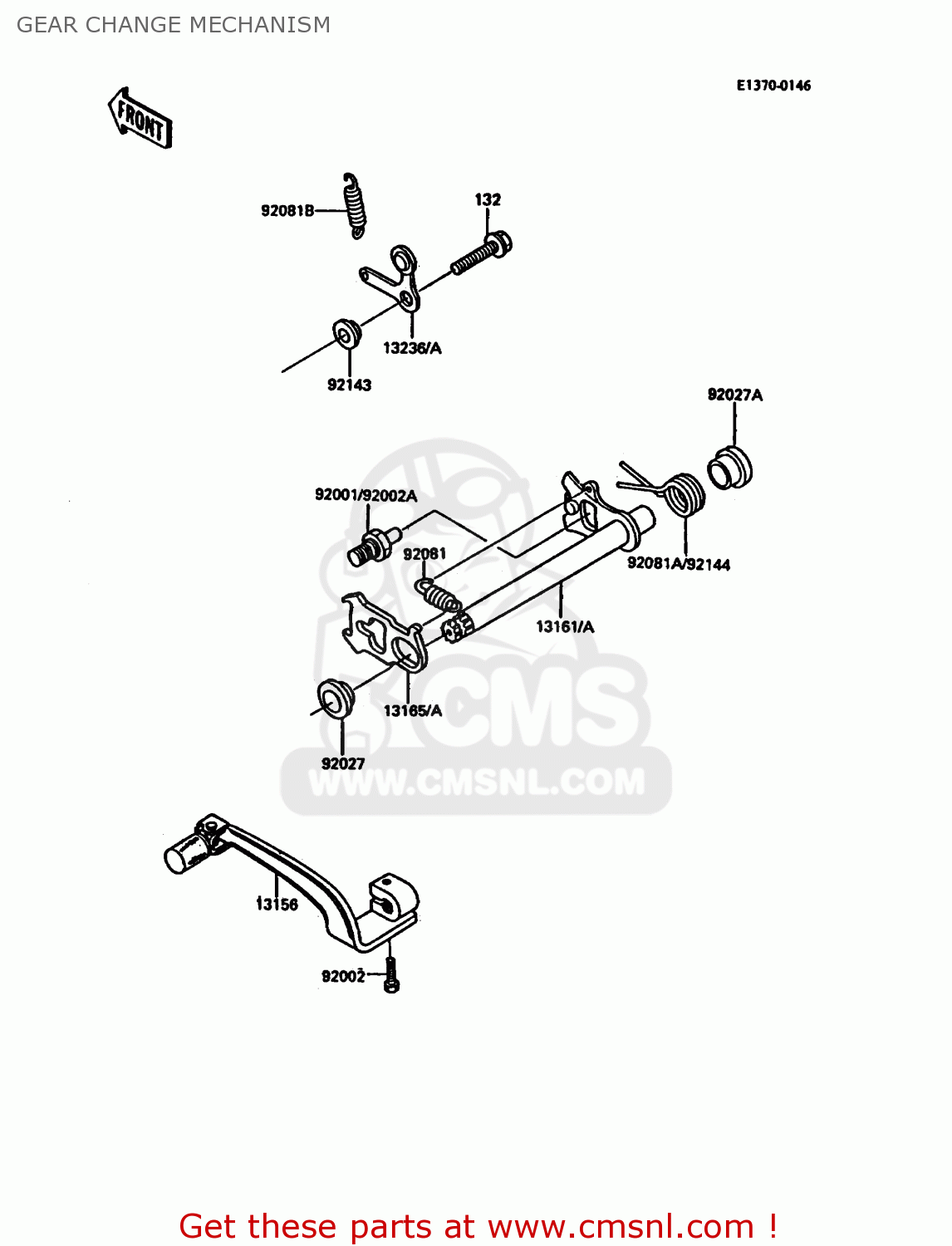

Gear change mechanism diagram KDX200-C3 1988 UNITED KINGDOM AL
GEAR CHANGE MECHANISM KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
13156
131561220
ref: 13156
LEVER-CHANGE,PEDAL
€ 51.50
13161A
131611148
ref: 13161A
LEVER-COMP-CHANGE SHA
€ 36.00
13165A
131651122
ref: 13165A
PAWL,CHANGE LEVER
€ 9.50
13236A
132361155
ref: 13236A
LEVER-COMP,POSITION
€ 8.00
92002
920021339
ref: 92002
BOLT,6X25
€ 2.50
92002A
920021601
ref: 92002A
BOLT,8X15
€ 5.00
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92027A
920271801
ref: 92027A
COLLAR,13X18X9
€ 5.50
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081B
92083012
ref: 92081B
SPRING,CHNG DRUM LEV
€ 3.00
92143
921431055
ref: 92143
COLLAR
€ 4.50
92144
921441142
ref: 92144
SPRING,CHANGE SHAFT R
€ 9.50
