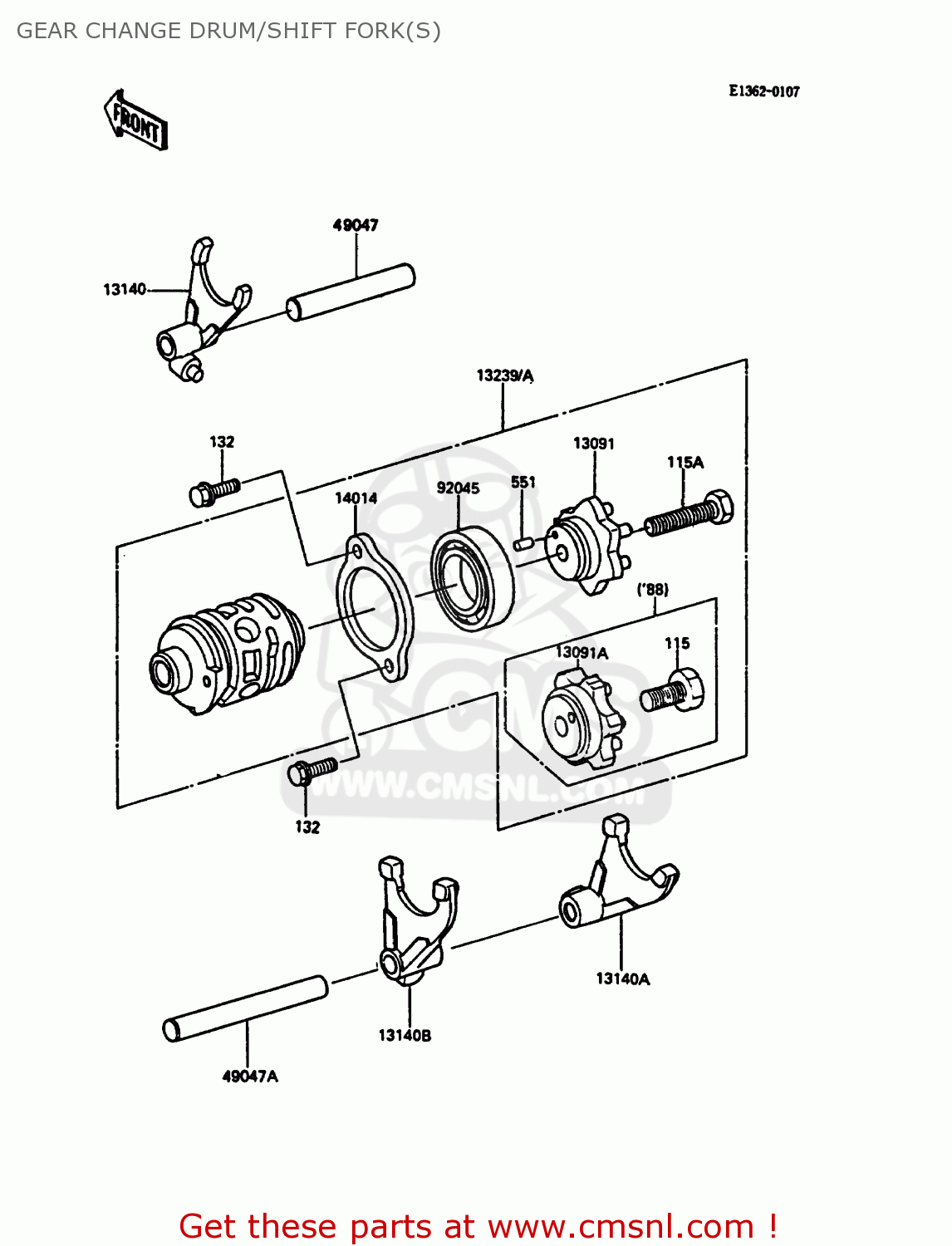

GEAR CHANGE DRUM/SHIFT FORK(S)

KDX200-C3 1988 UNITED KINGDOM AL

Gear change drum/shift fork(s) diagram KDX200-C3 1988 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

115

115G0818
ref: 115

BOLT SMALL-UPSET

€ 2.50

132

132G0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13091A

130911476
ref: 13091A

HOLDER,CHANGE DRUM

€ 78.00

13140

131401074
ref: 13140

FORK-SHIFT,5TH&TOP

€ 68.00

13140A

131401143
ref: 13140A

FORK-SHIFT,LOW&4TH

€ 68.00

13140B

131401144
ref: 13140B

FORK-SHIFT,2ND&3RD

€ 65.00

13239A

132391146
ref: 13239A

DRUM-ASSY-CHANGE

€ 87.50

14014

140141020
ref: 14014

PLATE-POSITION

€ 9.00

49047

490471017
ref: 49047

ROD-SHIFT,8X58

€ 10.50

49047A

490471065
ref: 49047A

ROD-SHIFT,8X82.5

€ 9.50

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00
