BRAKE PEDAL
KDX200-C3 1988 UNITED KINGDOM AL

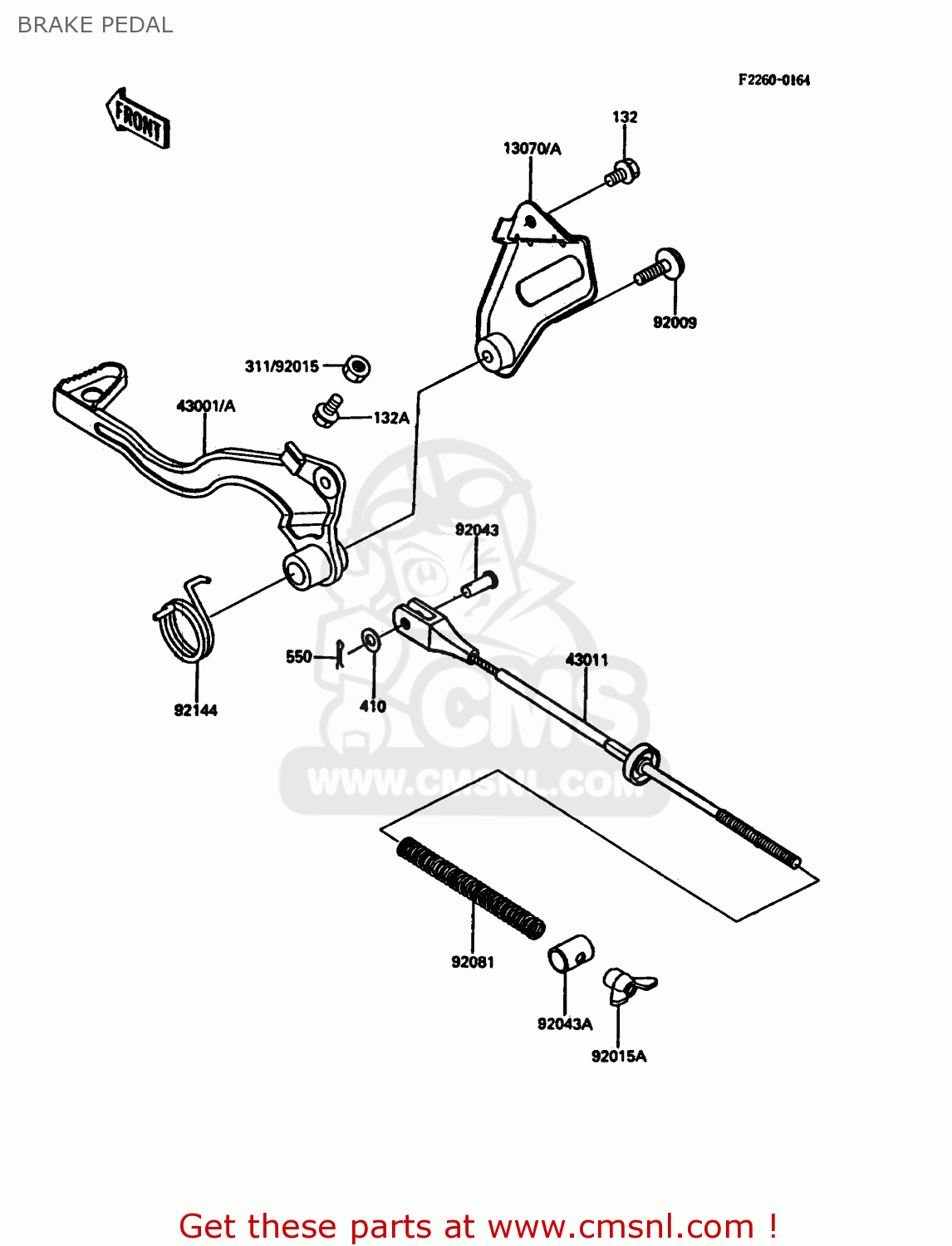

Brake pedal diagram KDX200-C3 1988 UNITED KINGDOM AL
BRAKE PEDAL KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13070A
130701190
ref: 13070A
GUIDE,BRAKE
€ 16.50
43001A
430011246
ref: 43001A
LEVER-BRAKE,PEDAL
€ 34.50
43011
430111126
ref: 43011
ROD-BRAKE
€ 24.50
92009
920091289
ref: 92009
SCREW,6X20
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92015A
920154004
ref: 92015A
NUT,BRAKE ADJUSTING
€ 4.50
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
€ 4.50
92043A
920431024
ref: 92043A
PIN,BRAKE
€ 6.00
92081
920811688
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92144
921441085
ref: 92144
SPRING,BRAKE PEDAL
€ 5.50
