FUEL TANK
KDX200-C3 1988 UNITED KINGDOM AL

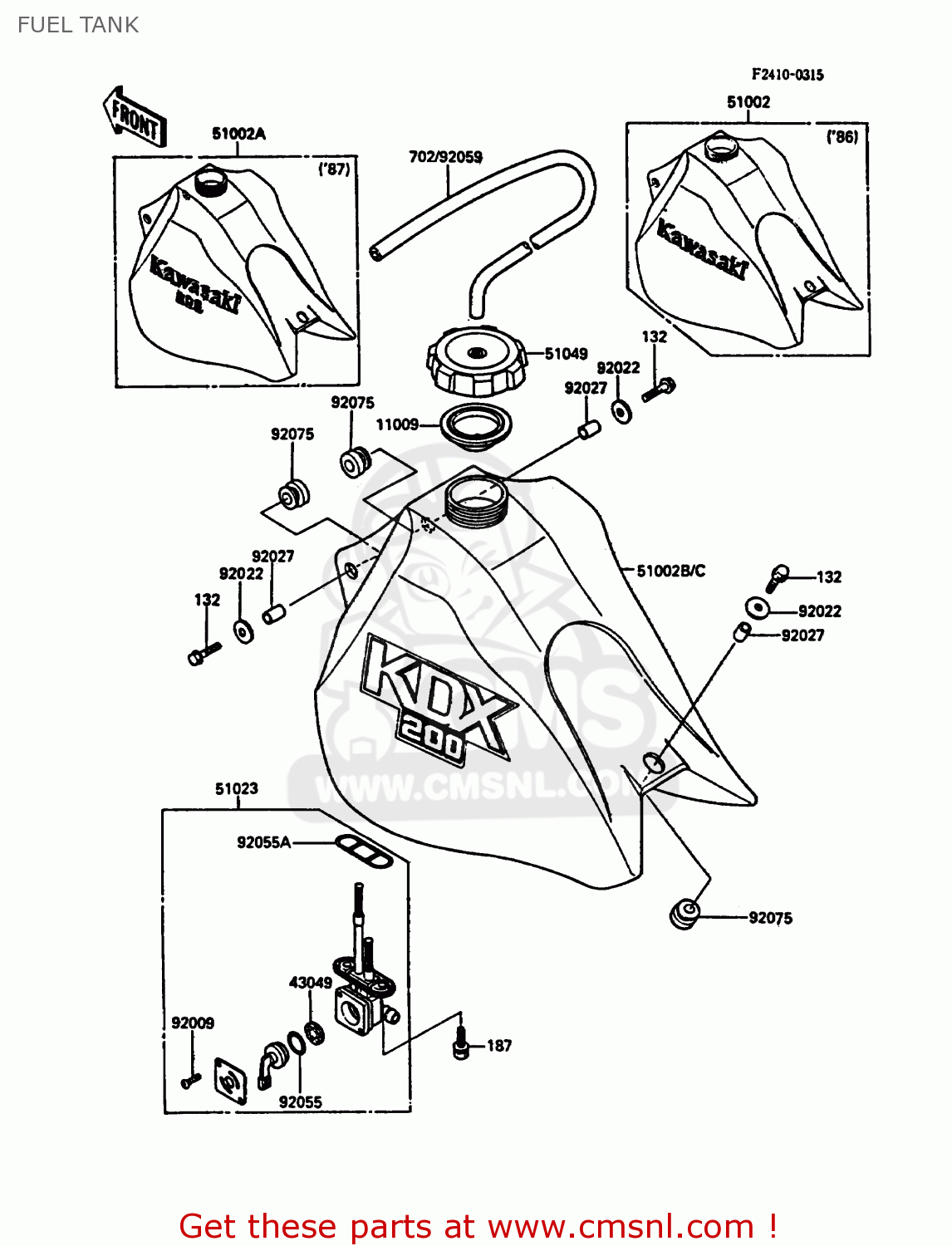

Fuel tank diagram KDX200-C3 1988 UNITED KINGDOM AL
FUEL TANK KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
702
702A05250
ref: 702
TUBE-RUBBER,5X250
€ 7.50
11009
110091276
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 7.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51002B
5100253506W
ref: 51002B
TANK-COMP-FUEL,L.GREE
€ 574.00
51002C
5100253676F
ref: 51002C
TANK-COMP-FUEL,P.WHIT
€ 394.50
51023
510231121
ref: 51023
TAP-ASSY,FUEL
€ 51.50
51049
510491007
ref: 51049
CAP-TANK,FUEL
€ 15.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92022
920221690
ref: 92022
WASHER
€ 2.50
92027
920271833
ref: 92027
COLLAR,6.8X10X17
€ 3.50
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551348
ref: 92055A
RING-O,FUEL TAP PACKI
€ 4.50
92075
920751660
ref: 92075
DAMPER
€ 5.50
