CLUTCH
KDX200-C3 1988 UNITED KINGDOM AL

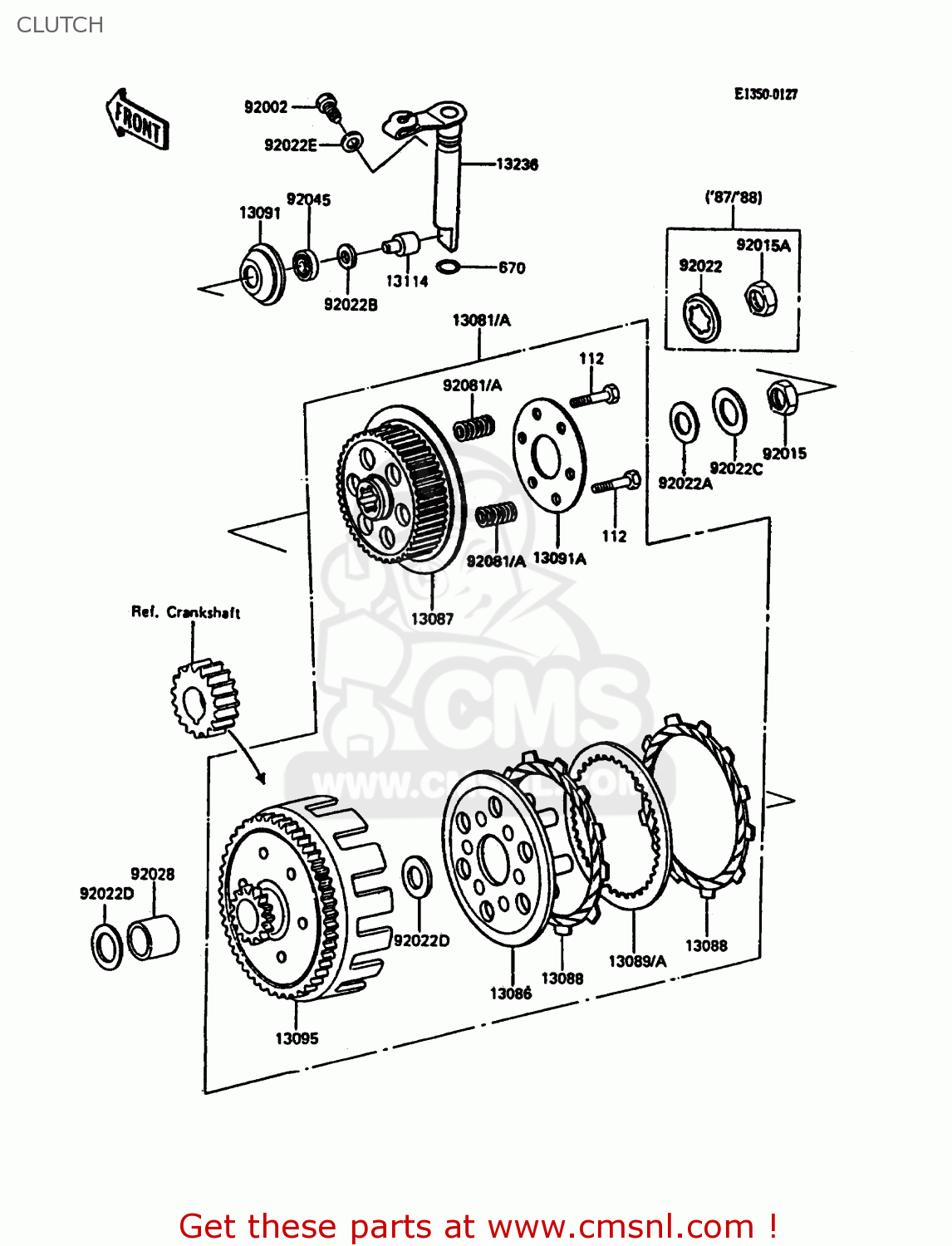

Clutch diagram KDX200-C3 1988 UNITED KINGDOM AL
CLUTCH KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
13081A
130811270
ref: 13081A
CLUTCH-ASSY
€ 775.00
13086
130861056
ref: 13086
WHEEL-CLUTCH
€ 33.00
13087
130871075
ref: 13087
HUB-CLUTCH
€ 86.50
13088
130881058
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13089
130891063
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.50
13091
130911134
ref: 13091
HOLDER,CLUTCH PUSHER
€ 9.50
13091A
130911478
ref: 13091A
HOLDER,CLUTCH SPRING
€ 12.00
13095
130951138
ref: 13095
HOUSING-COMP-CLUTCH
€ 212.50
13114
131141008
ref: 13114
PUSHER-CLUTCH
€ 12.50
13236
132361138
ref: 13236
LEVER-COMP,CLUTCH REL
€ 15.00
92002
920021706
ref: 92002
BOLT
€ 3.50
92015A
92016028
ref: 92015A
NUT
€ 9.50
92022
920221047
ref: 92022
WASHER,LOCK
€ 2.50
92022B
920221290
ref: 92022B
WASHER,7X12.5X0.8
€ 2.00
92022D
92022223
ref: 92022D
WASHER,20.5X30X1.4
€ 8.50
92022E
92022304
ref: 92022E
WASHER,PLAIN
€ 2.50
92028
920281388
ref: 92028
BUSHING,20X25X26.85
€ 19.50
92045
92045026
ref: 92045
BEARING,BALL,#627
€ 19.50
92081
92081123
ref: 92081
SPRING,CLUTCH
€ 4.50
