FRAME FITTINGS
KDX200-C3 1988 UNITED KINGDOM AL

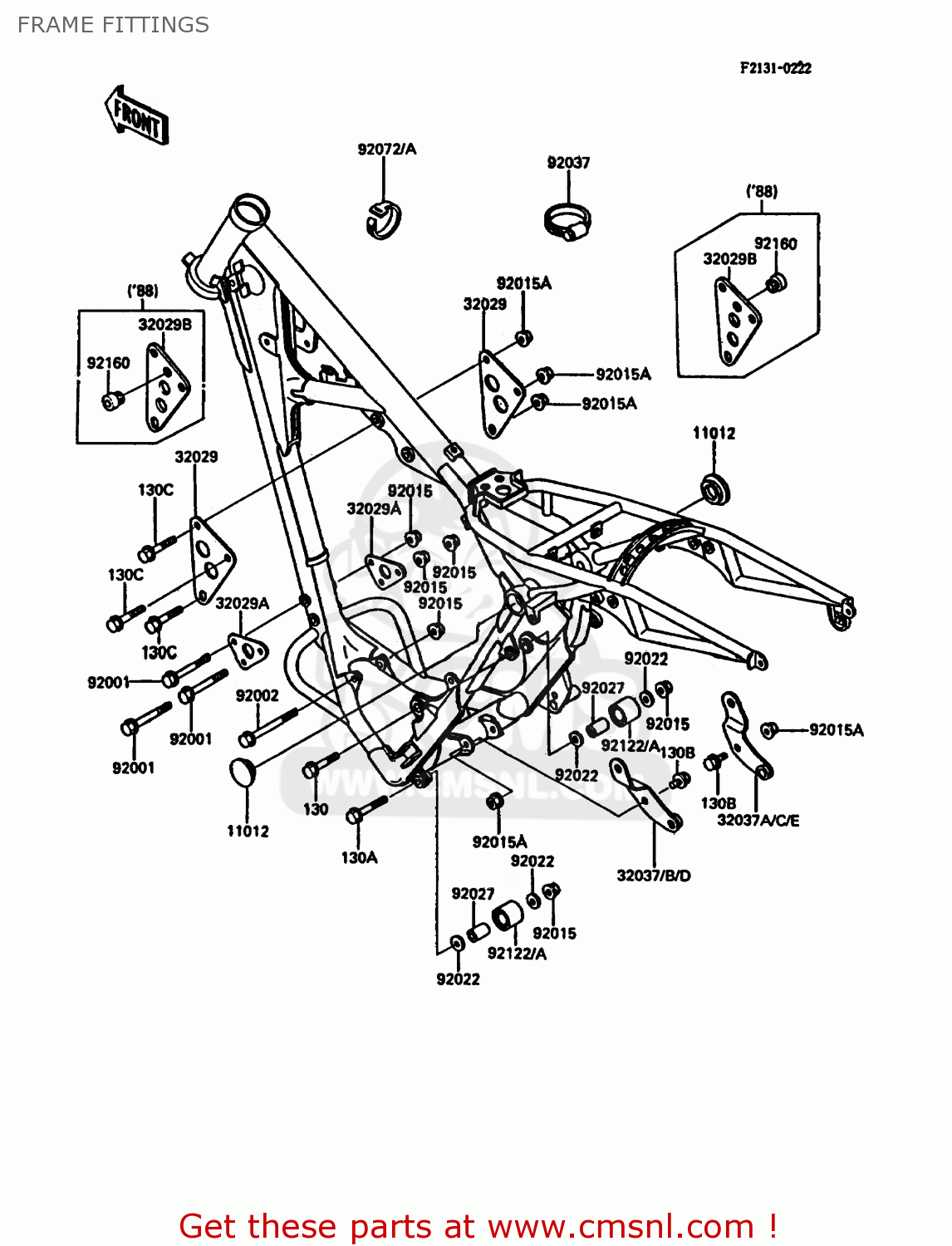

Frame fittings diagram KDX200-C3 1988 UNITED KINGDOM AL
FRAME FITTINGS KDX200-C3 1988 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
130A
130G0855
ref: 130A
BOLT-FLANGED,8X55
€ 1.50
130B
130P1020
ref: 130B
BOLT-FLANGED,10X20
€ 1.50
130C
130P1050
ref: 130C
BOLT-FLANGED
€ 3.50
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029A
320291458
ref: 32029A
BRACKET-ENGINE,FR
€ 12.00
32029B
320291584
ref: 32029B
BRACKET-ENGINE,UPP
€ 19.50
32037D
320371471
ref: 32037D
BRACKET-SHOCKABSORBER
€ 19.50
32037E
320371472
ref: 32037E
BRACKET-SHOCKABSORBER
€ 19.50
92001
920011928
ref: 92001
BOLT,8X67
€ 6.00
92002
920021849
ref: 92002
BOLT,FLANGED,8X90
€ 4.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92022
920221629
ref: 92022
WASHER,8.5X22X1.5
€ 4.00
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371586
ref: 92037
CLAMP,RESERVE TANK
€ 5.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92122A
921221144
ref: 92122A
ROLLER,CHAIN GUIDE
€ 19.50
92160
921601025
ref: 92160
DAMPER
€ 2.50
