TRANSMISSION
KDX125-A2 1991 EUROPE UK AR GR NR SA ST

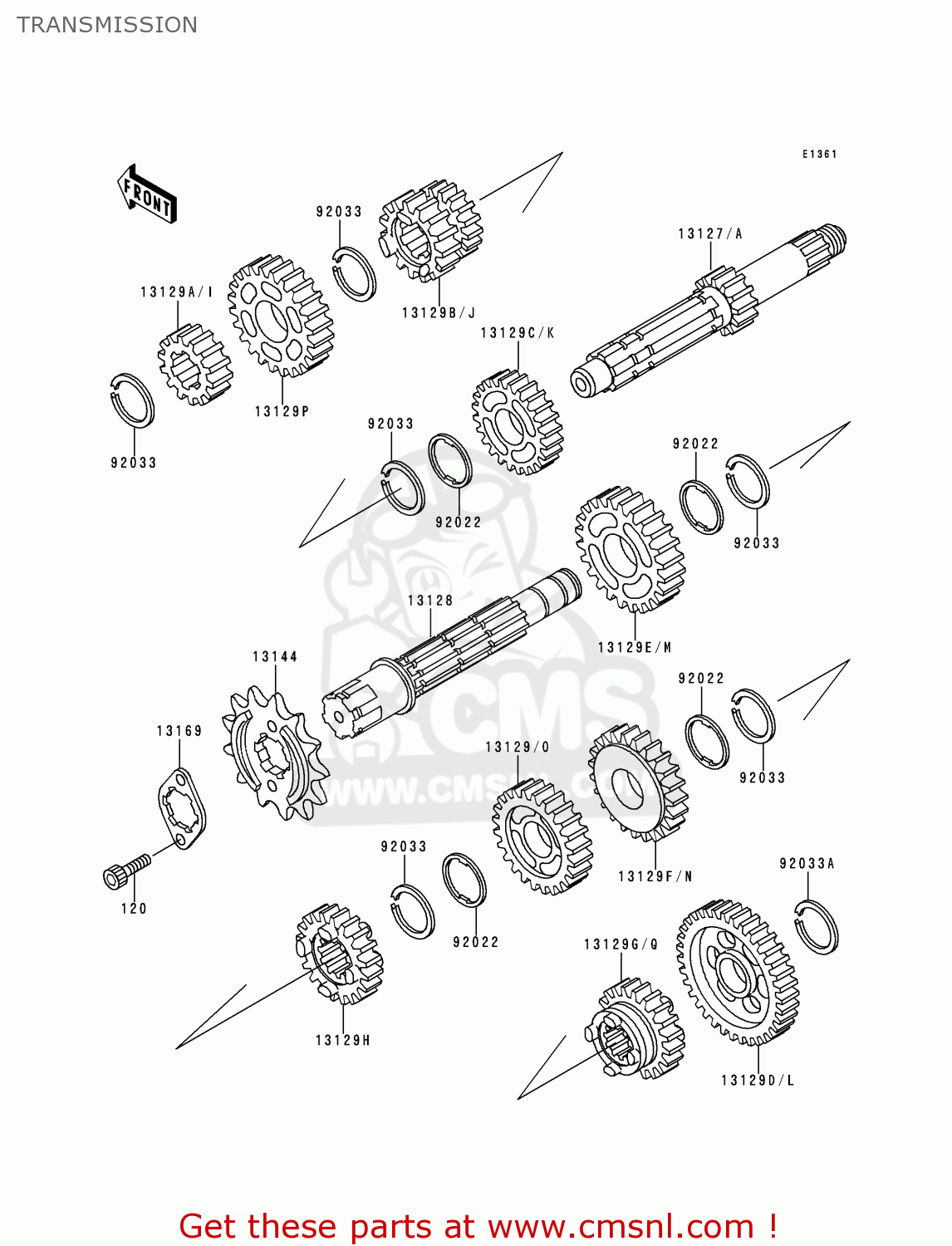

Transmission diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST
TRANSMISSION KDX125-A2 1991 EUROPE UK AR GR NR SA ST
×
prices are in EUR
ref
part #
description
quantity
13127
131271194
ref: 13127
ST
SHAFT-TRANSMISSION IN
€ 156.00
13127A
131271197
ref: 13127A
AREUGRNRSAUK
SHAFT-TRANSMISSION IN
€ 169.50
13128
131281134
ref: 13128
SHAFT-TRANSMISSION OU
€ 124.50
13129
131291559
ref: 13129
AREUGRNRSAUK
GEAR,OUTPUT 4TH,24T
€ 67.00
13129A
131291788
ref: 13129A
AREUGRNRSAUK
GEAR,INPUT 2ND,14T
€ 52.50
13129B
131291789
ref: 13129B
AREUGRNRSAUK
GEAR,INPUT 3RD&4TH,17
€ 100.00
13129C
131291790
ref: 13129C
AREUGRNRSAUK
GEAR,INPUT 5TH,24T
€ 67.00
13129D
131291791
ref: 13129D
AREUGRNRSAUK
GEAR,OUTPUT LOW,31T
€ 95.00
13129E
131291792
ref: 13129E
AREUGRNRSAUK
GEAR,OUTPUT 2ND,27T
€ 84.00
13129F
131291793
ref: 13129F
AREUGRNRSAUK
GEAR,OUTPUT 3RD,24T
€ 69.50
13129G
131291795
ref: 13129G
AREUGRNRSAUK
GEAR,OUTPUT 5TH,22T
€ 61.50
13129H
131291796
ref: 13129H
GEAR,OUTPUT TOP,21T
€ 73.00
13129I
131291884
ref: 13129I
ST
GEAR,INPUT 2ND,15T
€ 58.50
13129J
131291885
ref: 13129J
ST
GEAR,INPUT 3RD&4TH,18
€ 87.50
13129K
131291886
ref: 13129K
ST
GEAR,INPUT 5TH,25T
€ 78.00
13129L
131291888
ref: 13129L
ST
GEAR,OUTPUT LOW,30T
€ 78.00
13129M
131291889
ref: 13129M
ST
GEAR,OUTPUT 2ND,26T
€ 78.00
13129N
131291890
ref: 13129N
ST
GEAR,OUTPUT 3RD,23T
€ 90.00
13129O
131291924
ref: 13129O
ST
GEAR,OUTPUT 4TH,23T
€ 59.50
120
120Q0608
ref: 120
BOLT-SOCKET
€ 2.00
13129P
131291925
ref: 13129P
GEAR,INPUT TOP,26T
€ 58.00
13129Q
131291957
ref: 13129Q
ST
GEAR,OUTPUT 5TH,22T
€ 76.00
13144
131441177
ref: 13144
SPROCKET-OUTPUT,15T
€ 32.50
13169
131691541
ref: 13169
PLATE,SPROCKET
€ 3.00
92022
920221033
ref: 92022
WASHER,TOOTHED,20.3X2
€ 4.50
92033
920331214
ref: 92033
RING-SNAP,18.7MM
€ 2.50
92033A
920331215
ref: 92033A
RING-SNAP,14MM
€ 2.50
