FRAME
KDX125-A2 1991 EUROPE UK AR GR NR SA ST

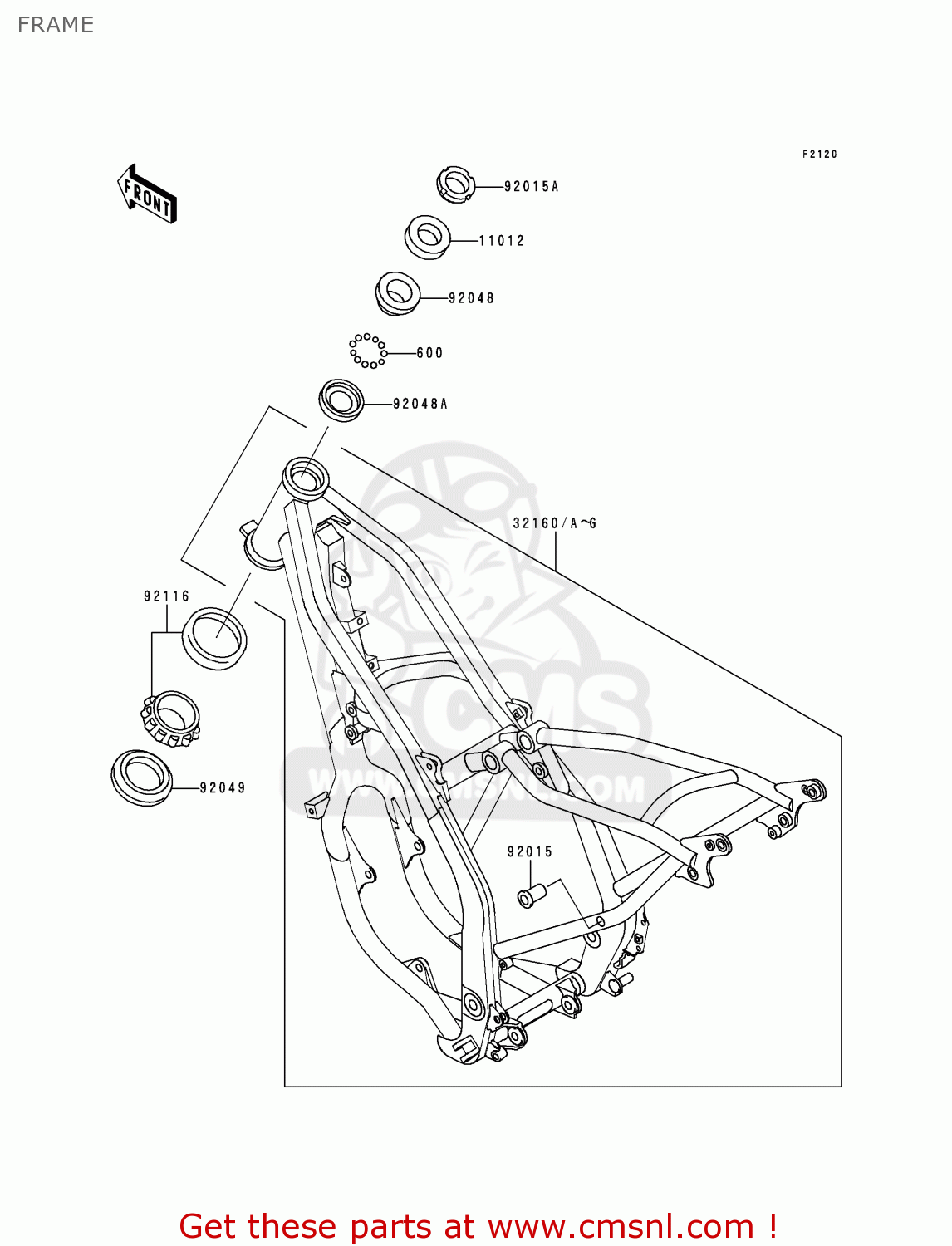

Frame diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST
FRAME KDX125-A2 1991 EUROPE UK AR GR NR SA ST
×
prices are in EUR
ref
part #
description
quantity
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
11012
46098018
ref: 11012
CAP,STEERING STEM
€ 4.00
32160B
321601171CC
ref: 32160B
ST
FRAME-COMP,L.GREEN
€ 591.50
32160C
321601171W1
ref: 32160C
ST
FRAME-COMP,BLUE NO.1
€ 837.50
32160D
321601200CC
ref: 32160D
AREUGRSAUK
FRAME-COMP,L.GREEN
€ 837.50
32160E
321601200W1
ref: 32160E
AREUGRSAUK
FRAME-COMP,BLUE NO.1
€ 837.50
32160F
321601209CC
ref: 32160F
NR
FRAME-COMP,L.GREEN
€ 591.50
32160G
321601209W1
ref: 32160G
NR
FRAME-COMP,BLUE NO.1
€ 837.50
92015
920151759
ref: 92015
NUT,POP,6MM
€ 3.00
92015A
92090022
ref: 92015A
NUT,STEERING LOCK,25M
€ 18.50
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048009
ref: 92048A
RACE,STRG STM
€ 14.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
