CRANKSHAFT/PISTON

KDX125-A2 1991 EUROPE UK AR GR NR SA ST

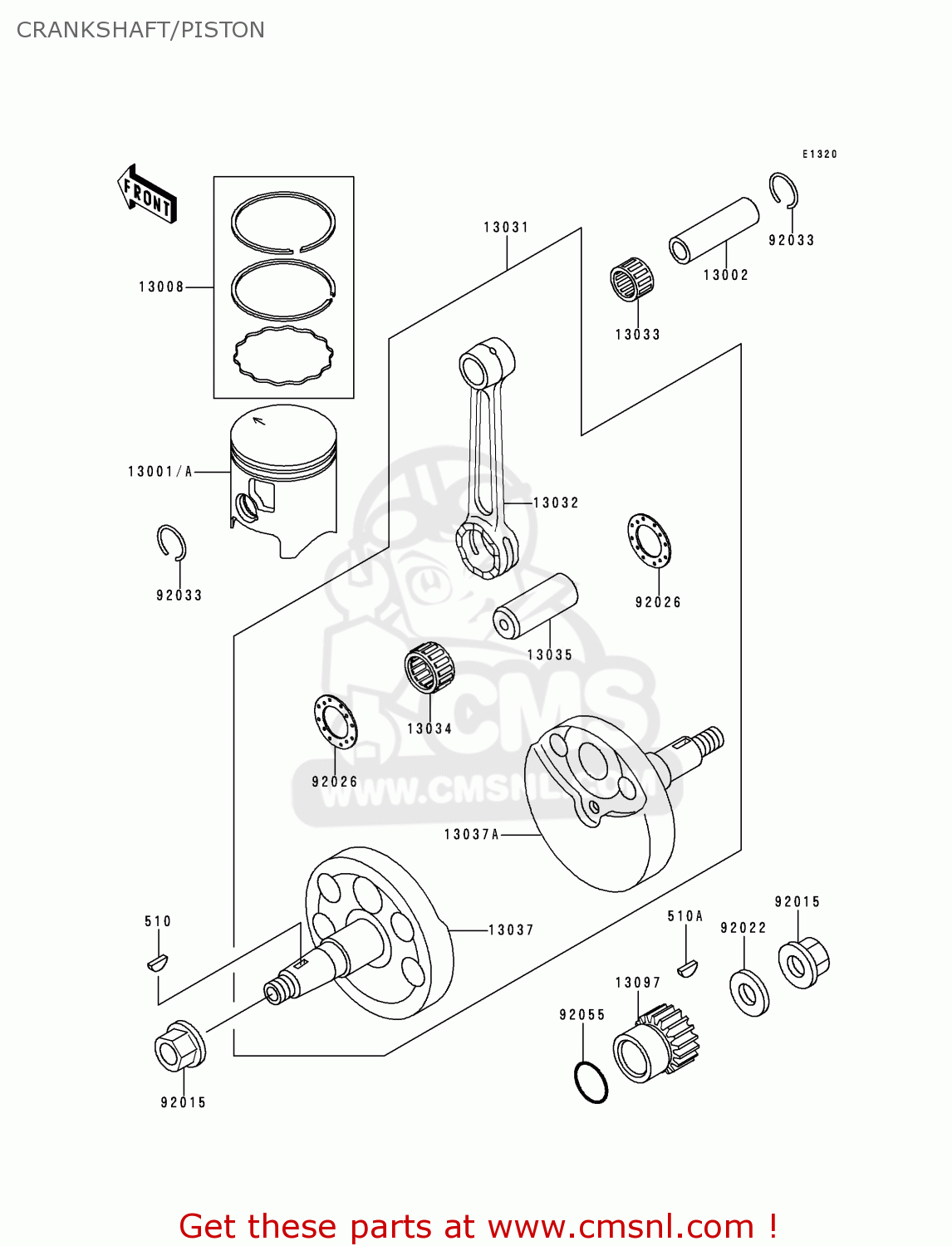

Crankshaft/piston diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST

CRANKSHAFT/PISTON KDX125-A2 1991 EUROPE UK AR GR NR SA ST
CRANKSHAFT/PISTON KDX125-A2 1991 EUROPE UK AR GR NR SA ST
CRANKSHAFT/PISTON KDX125-A2 1991 EUROPE UK AR GR NR SA ST
prices are in EUR
ref
part #
description
quantity
510
510A3200
ref: 510
KEY-WOODRUFF
510A3200
€ 1.50
510A
510A5100
ref: 510A
KEY-WOODRUFF
510A5100
€ 1.50
13001A
130011346
ref: 13001A
PISTON-ENGINE
130011346
€ 99.50
13002
130021066
ref: 13002
PIN-PISTON
130021066
€ 18.00
13008
130081126
ref: 13008
RING-SET-PISTON
130081126
€ 55.50
13031
130311304
ref: 13031
CRANKSHAFT-COMP
€ 440.00
13032
130321146
ref: 13032
ROD-CONNECTING
130321146
€ 50.50
13033
130331056
ref: 13033
BEARING-SMALL END
130331056
€ 24.00
13034
130341070B4
ref: 13034
BEARING
130341070B4
€ 30.50
13035
13035101001
ref: 13035
PIN-CRANK
13035101001
€ 33.00
13037
130371385
ref: 13037
CRANKSHAFT,LH
130371385
€ 237.00
13037A
130371399
ref: 13037A
CRANKSHAFT,RH
130371399
€ 214.00
13097
130971256
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 103.00
92015
920151156
ref: 92015
NUT,12MM
920151156
€ 4.50
92022
920221831
ref: 92022
WASHER
920221831
€ 3.50
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
920261136
€ 5.50
92033
920331242
ref: 92033
RING-SNAP,PISTON PIN
920331242
€ 2.50
92055
92055086
ref: 92055
RING-O
92055086
€ 2.50
