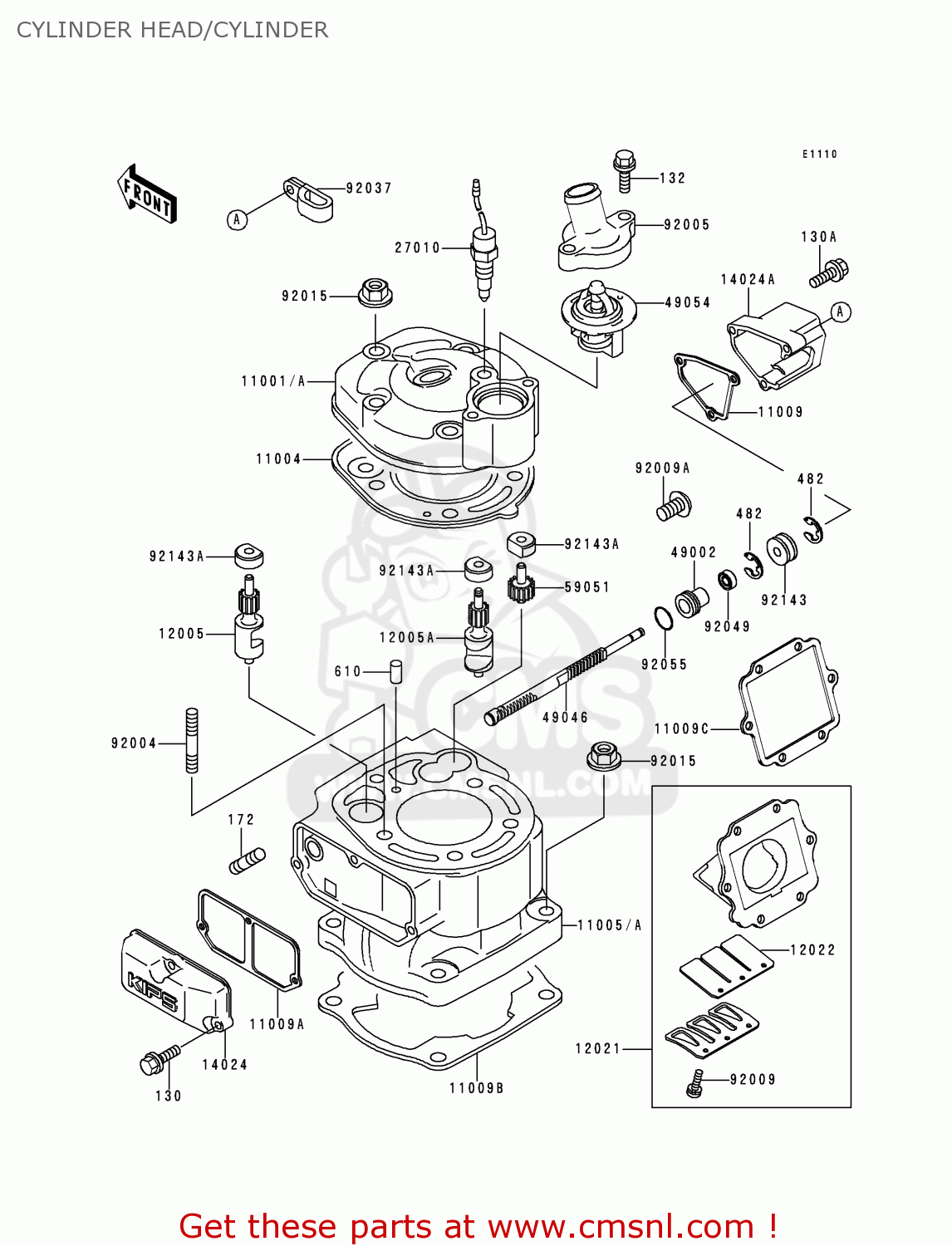

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

130

130G0520
ref: 130

BOLT-FLANGED

€ 1.00

130A

130G0525
ref: 130A

BOLT-FLANGED

€ 0.50

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

172

172G0822
ref: 172

BOLT-STUD,8X22

€ 1.50

482

482J4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

11001

110011322
ref: 11001
ST

HEAD-CYLINDER

€ 140.50

11001A

110011347
ref: 11001A
AREUGRNRSAUK

HEAD-CYLINDER

€ 167.00

11004

110041205
ref: 11004

GASKET-HEAD (NAS)

€ 25.00

11005

110051614
ref: 11005
AREUGRNRSAUK

CYLINDER-ENGINE

€ 570.50

11005A

110051648
ref: 11005A
ST

CYLINDER-ENGINE

€ 435.00

11009

110091934
ref: 11009

GASKET,RH,GOVERNOR (NAS)

€ 4.00

11009A

110091938
ref: 11009A

GASKET,LH,RESONATOR (NAS)

€ 3.50

11009B

110091940
ref: 11009B

GASKET,CYLINDER BASE (NAS)

€ 6.50

11009C

110091941
ref: 11009C

GASKET,REED VALVE (NAS)

€ 6.00

12005

120051113
ref: 12005

VALVE-EXHAUST,LH

€ 44.00

12005A

120051114
ref: 12005A

VALVE-EXHAUST,RH

€ 43.00

12021

120211083
ref: 12021

VALVE-ASSY-REED

€ 107.50

12022

120221063
ref: 12022

VALVE-REED

€ 18.50

14024

140241565
ref: 14024

COVER,RESONATOR

€ 22.50

14024A

140241786
ref: 14024A

COVER,GOVERNOR

€ 12.00

27010

270101278
ref: 27010
ST

SWITCH,WARNING

€ 85.00

49002

490021083
ref: 49002

GUIDE-VALVE

€ 12.50

49046

490461068
ref: 49046

ROD-GOVERNOR

€ 59.00

49054

490541063
ref: 49054

THERMOSTAT

€ 46.00

59051

590511190
ref: 59051

GEAR-SPUR,IDLE

€ 23.50

92004

920041009
ref: 92004

STUD, 8X35

€ 4.00

92005

920051205
ref: 92005

FITTING,THERMOSTAT

€ 20.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92009A

920091502
ref: 92009A

SCREW

€ 2.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92037

920371608
ref: 92037

CLAMP

€ 5.50

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92055

920551399
ref: 92055

RING-O,14.5X1.5

€ 3.00

92143

921431056
ref: 92143

COLLAR

€ 6.50

92143A

921431147
ref: 92143A

COLLAR,VALVE

€ 9.00

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

all assemblies
