FRAME FITTING

KDX125-A2 1991 EUROPE UK AR GR NR SA ST

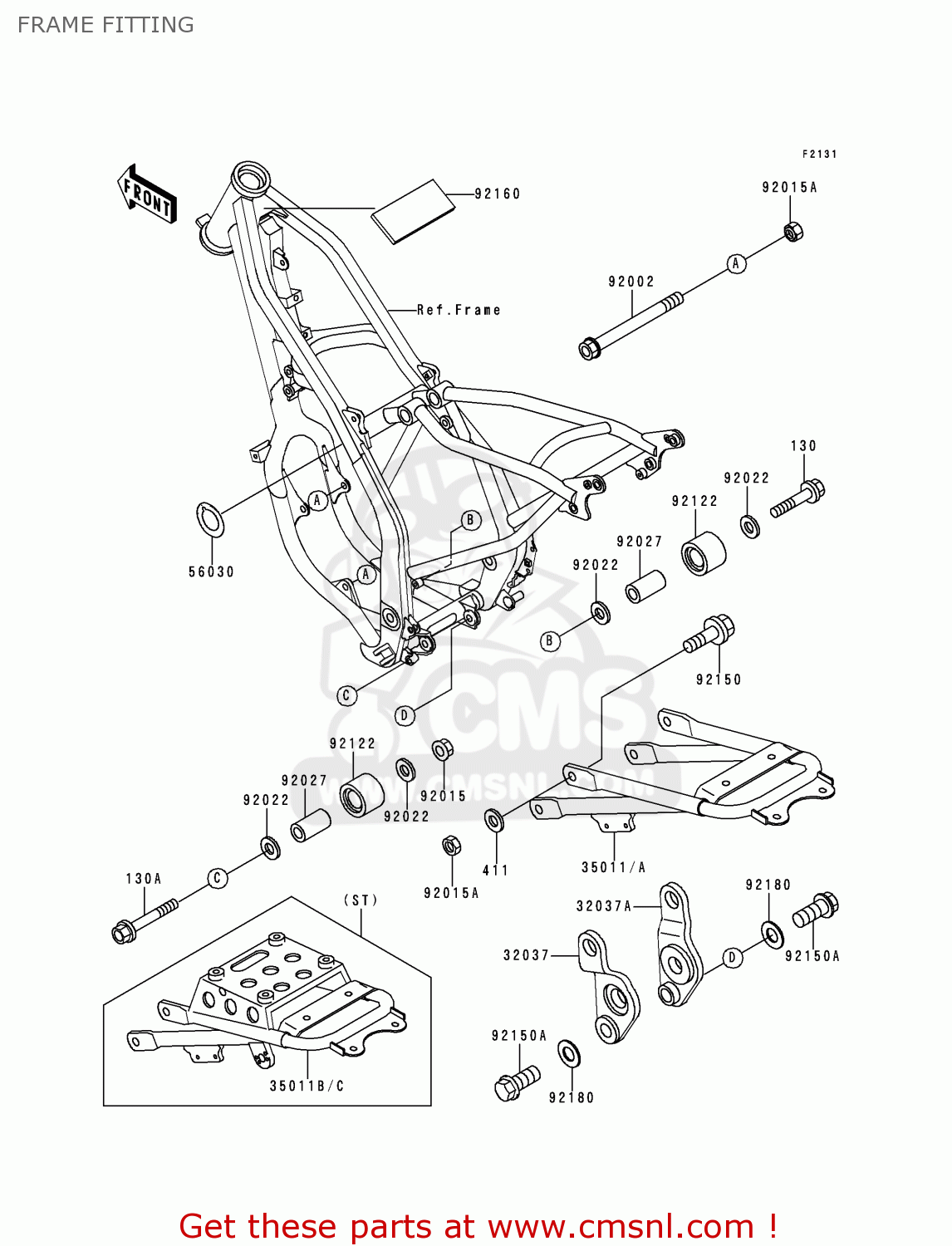

Frame fitting diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST

FRAME FITTING KDX125-A2 1991 EUROPE UK AR GR NR SA ST
FRAME FITTING KDX125-A2 1991 EUROPE UK AR GR NR SA ST
FRAME FITTING KDX125-A2 1991 EUROPE UK AR GR NR SA ST
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
130G0840
€ 1.00
130A
130G0855
ref: 130A
BOLT-FLANGED,8X55
130G0855
€ 1.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
411B1000
€ 0.50
32037
320371548
ref: 32037
BRACKET-SHOCKABSORBER
€ 41.50
32037A
320371549
ref: 32037A
BRACKET-SHOCKABSORBER
€ 41.50
35011
350111529CC
ref: 35011
AREUGRNRSAUK
STAY,REAR FRAME,L.GRE
€ 123.50
35011A
350111529W1
ref: 35011A
AREUGRNRSAUK
STAY,REAR FRAME,BLUE
€ 123.50
35011B
350111543CC
ref: 35011B
ST
STAY,REAR FRAME,L.GRE
€ 112.00
35011C
350111543W1
ref: 35011C
ST
STAY,REAR FRAME,BLUE
€ 112.00
56030
560301116
ref: 56030
LABEL,IGNITION
€ 3.00
92002
920021491
ref: 92002
BOLT,FLANGED,10X105
920021491
€ 8.00
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92015A
920151429
ref: 92015A
NUT,10MM
920151429
€ 4.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
920271670
€ 4.50
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
921221153
€ 7.00
92150
921501174
ref: 92150
BOLT,FLANGED,10X30
921501174
€ 3.50
92150A
921501359
ref: 92150A
BOLT,FLANGED,12X30
921501359
€ 5.00
92160
921601073
ref: 92160
DAMPER
€ 5.00
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
921801060
€ 2.50
