CRANKCASE
KDX125-A2 1991 EUROPE UK AR GR NR SA ST

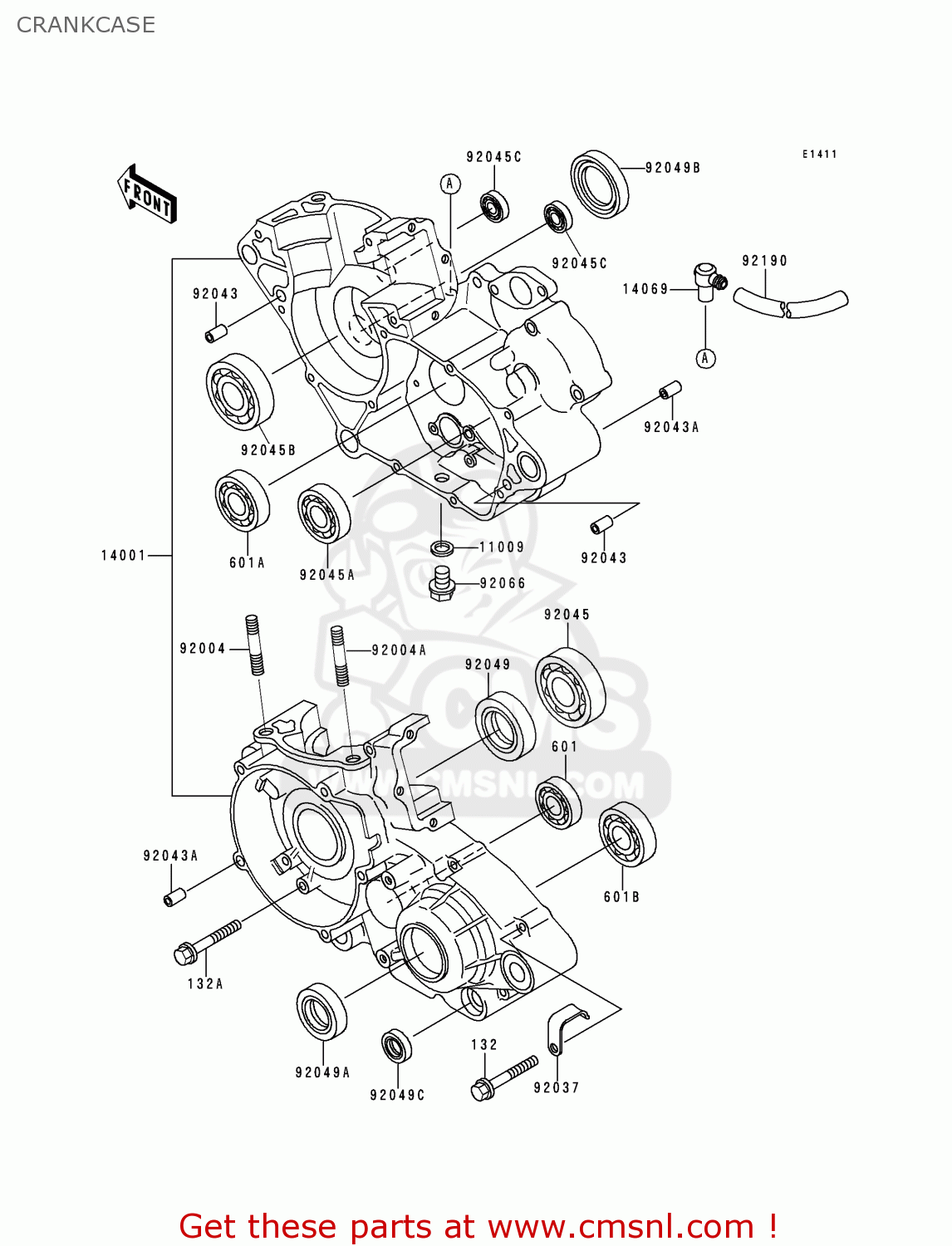

Crankcase diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST
CRANKCASE KDX125-A2 1991 EUROPE UK AR GR NR SA ST
×
prices are in EUR
ref
part #
description
quantity
132
132G0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
601
601B6202
ref: 601
BEARING-BALL,#6202C3
€ 14.50
601A
601B6204
ref: 601A
BEARING-BALL,#6204C3
€ 8.00
601B
601B6304
ref: 601B
BEARING-BALL,#6304C3
€ 31.00
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015282
ref: 14001
SET-CRANKCASE
€ 734.50
14069
14069003
ref: 14069
BREATHER
€ 7.00
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041142
ref: 92004A
STUD,8X28.5
€ 6.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92045
920451061
ref: 92045
BEARING-BALL,R-6205C3
€ 30.50
92045A
920451169
ref: 92045A
BEARING-BALL,6202X19
€ 17.50
92045B
920451209
ref: 92045B
BEARING-BALL
€ 32.50
92045C
920451212
ref: 92045C
BEARING-BALL
€ 11.50
92049
920491187
ref: 92049
SEAL-OIL,TC25406
€ 5.50
92049A
920491257
ref: 92049A
SEAL-OIL,TC20376.5
€ 7.00
92049B
920491301
ref: 92049B
SEAL-OIL
€ 13.50
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
€ 5.50
92066
920661241
ref: 92066
PLUG
€ 4.00
92190
920591868
ref: 92190
TUBE,6X9X380
€ 8.00
