OIL TANK
KDX125-A2 1991 EUROPE UK AR GR NR SA ST

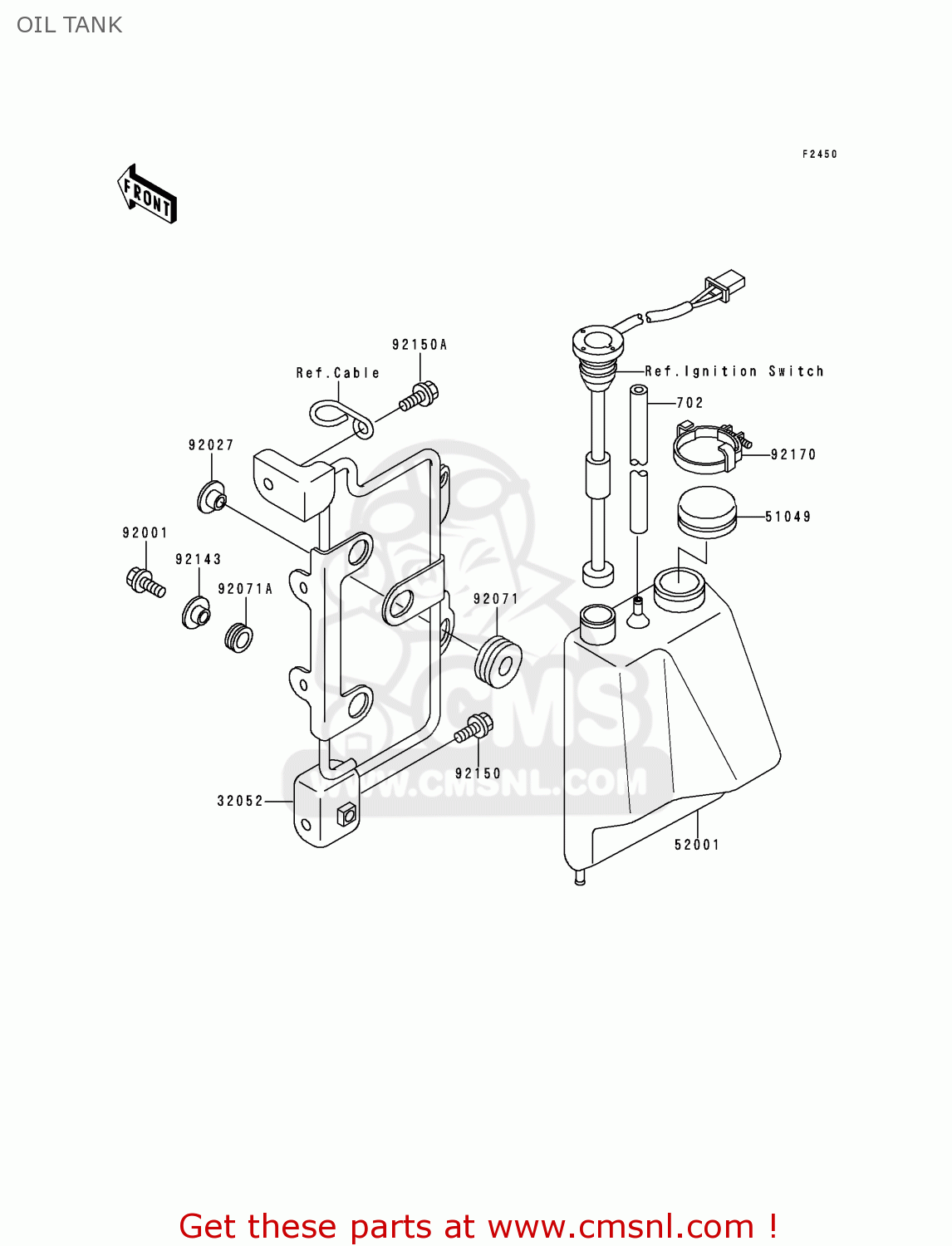

Oil tank diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST
OIL TANK KDX125-A2 1991 EUROPE UK AR GR NR SA ST
×
prices are in EUR
ref
part #
description
quantity
702
702A05400
ref: 702
TUBE,RUBBER,5X400
€ 7.50
32052
320521305
ref: 32052
BRACKET-TANK,OIL
€ 109.50
51049
510491004
ref: 51049
CAP-OIL,TANK
€ 10.00
52001
520011080
ref: 52001
TANK-OIL
€ 71.50
92001
920011826
ref: 92001
BOLT,6X20
€ 2.50
92027
920271166
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92071
920711043
ref: 92071
GROMMET,SIDE COVER
€ 3.50
92071A
920711115
ref: 92071A
GROMMET,RESERVOIR TAN
€ 3.50
92143
921431019
ref: 92143
COLLAR,L=7.4
€ 3.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501506
ref: 92150A
BOLT
€ 3.00
92170
921701039
ref: 92170
CLAMP,OIL TANK CAP
€ 12.50
