RADIATOR
KDX125-A2 1991 EUROPE UK AR GR NR SA ST

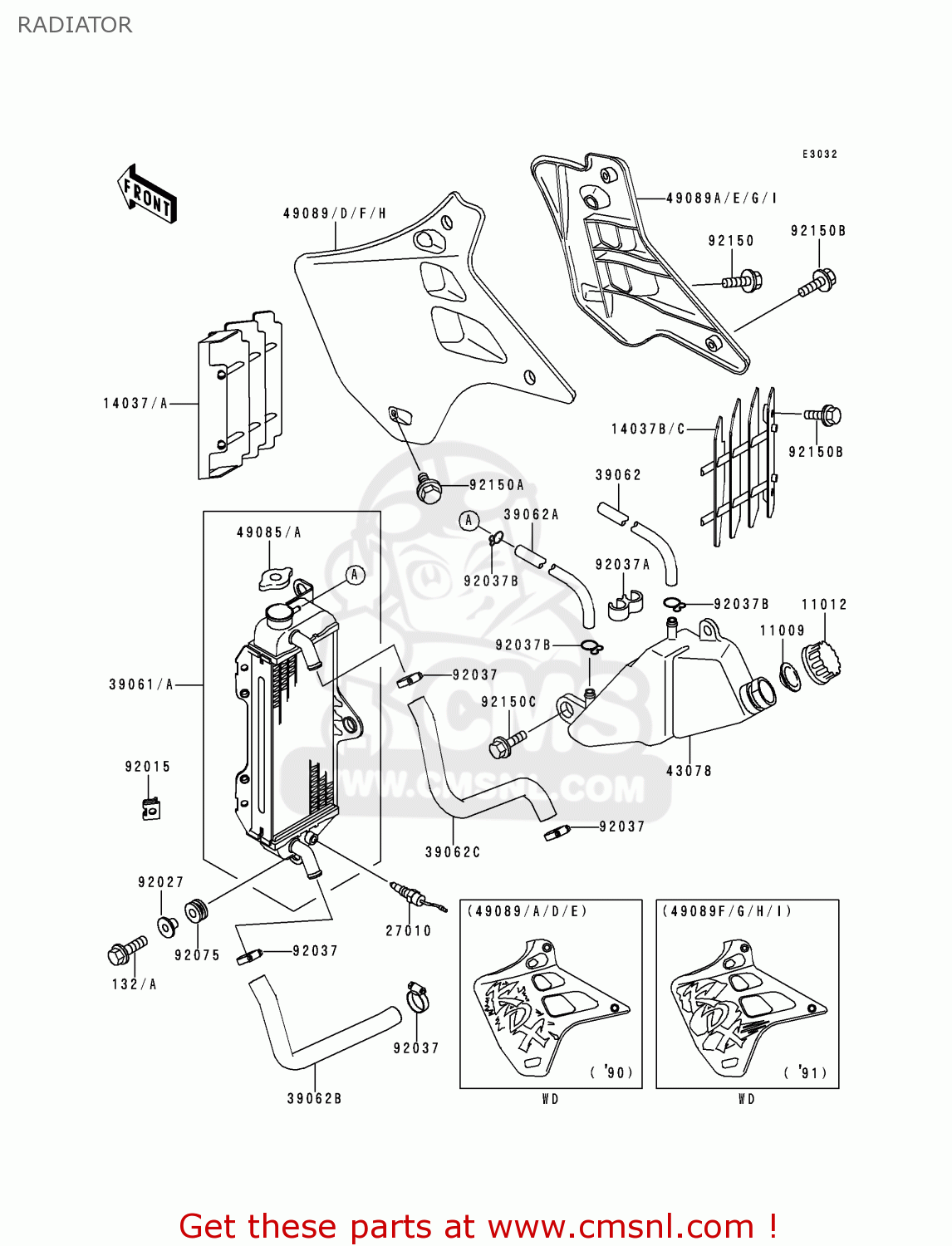

Radiator diagram KDX125-A2 1991 EUROPE UK AR GR NR SA ST
RADIATOR KDX125-A2 1991 EUROPE UK AR GR NR SA ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371099BV
ref: 14037
SCREEN,LH,BLUE 24
€ 14.00
14037A
1403710996W
ref: 14037A
SCREEN,L.GREEN
€ 16.50
14037B
140371121BV
ref: 14037B
SCREEN,RH,BLUE 24
€ 12.00
14037C
1403711216W
ref: 14037C
SCREEN,RH,L.GREEN
€ 19.00
27010
270101199
ref: 27010
AREUGRNRSAUK
SWITCH,WARNING
€ 114.00
39061
390611150
ref: 39061
ST
RADIATOR-ASSY
€ 288.00
39061A
390611163
ref: 39061A
AREUGRNRSAUK
RADIATOR-ASSY
€ 430.00
39062
390621315
ref: 39062
HOSE-COOLING,5X9X500
€ 8.00
39062A
390621334
ref: 39062A
HOSE-COOLING,5X9X1050
€ 8.00
39062B
390621373
ref: 39062B
HOSE-COOLING,RADIATOR
€ 27.00
39062C
390621374
ref: 39062C
HOSE-COOLING,HEAD-RAD
€ 29.50
43078
430781118
ref: 43078
RESERVOIR
€ 38.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49085A
490851059
ref: 49085A
CAP-ASSY-PRESSURE
€ 39.50
49089F
4908951196W
ref: 49089F
SHROUD-ENGINE,LH,L.GR
€ 78.00
49089G
4908951206W
ref: 49089G
SHROUD-ENGINE,RH,L.GR
€ 79.50
49089H
490895121BV
ref: 49089H
SHROUD-ENGINE,LH,BLUE
€ 78.00
49089I
490895122BV
ref: 49089I
SHROUD-ENGINE,RH,BLUE
€ 72.50
92015
920151487
ref: 92015
ST
NUT
€ 3.00
92015
920151487
ref: 92015
AREUGRNRSAUK
NUT
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92037A
920371603
ref: 92037A
CLAMP
€ 3.00
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
132
132G0620
ref: 132
ST
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
AREUGRNRSAUK
BOLT-FLANGED-SMALL
€ 3.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501435
ref: 92150B
BOLT
€ 2.50
92150C
921501504
ref: 92150C
BOLT
€ 3.00
