REAR HUB
EX500B6 GPZ500S 1993 FRANCE NL FG ST

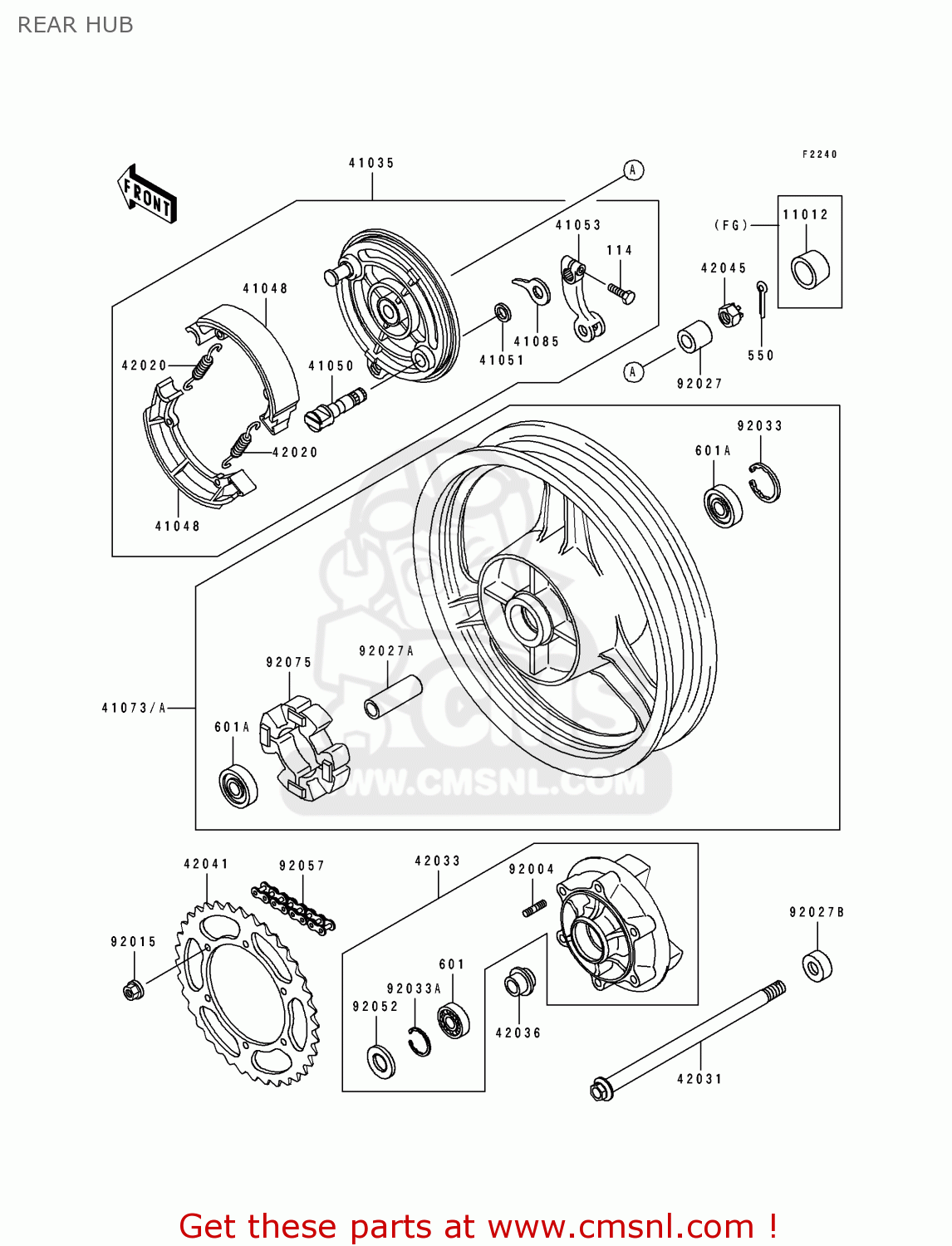

Rear hub diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
REAR HUB EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
€ 32.50
11012
110121592
ref: 11012
FG
CAP,AXLE NUT
€ 5.00
41035
410351244
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 351.50
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
€ 26.00
41050
410501065
ref: 41050
CAM-BRAKE
€ 29.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
€ 2.50
41053
410531069
ref: 41053
LEVER-BRAKE CAM
€ 36.50
41073
410731413GE
ref: 41073
WHEEL-ASSY,RR,G.GRAY
€ 639.50
41073A
410731413T6
ref: 41073A
FGFRNL
WHEEL-ASSY,RR,WHITE N
€ 609.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
€ 5.50
42031
42031053
ref: 42031
AXLE,REAR
€ 49.50
42033
420331114
ref: 42033
COUPLING-ASSY,RR HUB
€ 204.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
€ 34.00
42041
420411279
ref: 42041
SPROCKET-HUB,42T
€ 40.00
42045
42045014
ref: 42045
NUT CASTLE, 16M/M
€ 6.50
92004
920041146
ref: 92004
STUD,10X24
€ 4.00
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92027
920271484
ref: 92027
COLLAR,REAR AXLE,RH,L
€ 7.50
92027A
920271772
ref: 92027A
COLLAR,REAR BRAKE DRU
€ 9.50
92027B
920271784
ref: 92027B
COLLAR,RR HUB
€ 16.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571296
ref: 92057
CHAIN,DRIVE,EK520SX-O
€ 151.50
92075
920751687
ref: 92075
DAMPER,SHOCK,RR HUB
€ 54.50
