FUEL TANK
EX500B6 GPZ500S 1993 FRANCE NL FG ST

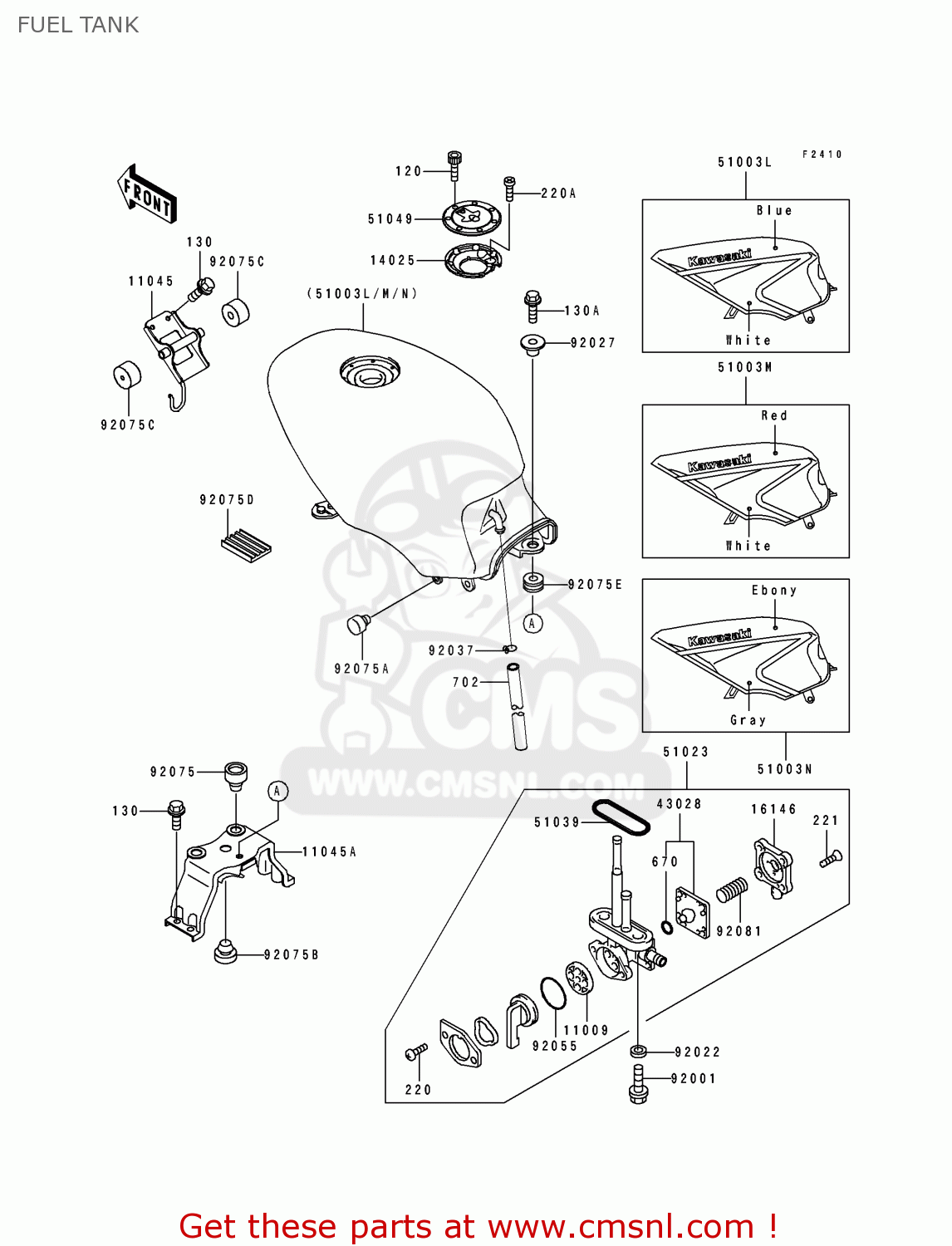

Fuel tank diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
FUEL TANK EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
€ 4.00
11045
110451362
ref: 11045
BRACKET,FUEL TANK,FR
€ 28.50
11045A
110451363
ref: 11045A
BRACKET,FUEL TANK,RR
€ 39.00
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
51003L
510035409S3
ref: 51003L
FRNL
TANK-COMP-FUEL,BLUE/W
€ 906.00
51003M
510035410GP
ref: 51003M
FGNL
TANK-COMP-FUEL,RED/WH
€ 734.00
51003N
510035413FG
ref: 51003N
TANK-COMP-FUEL,EBONY/
€ 741.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
51023
510231142
ref: 51023
TAP-ASSY,FUEL
€ 95.50
51039
51039003
ref: 51039
'O' RING
€ 4.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
€ 88.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
€ 4.50
92037
920371712
ref: 92037
CLAMP
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075021
ref: 92075A
DAMPER
€ 3.00
92075B
920751045
ref: 92075B
DAMPER,STAND STOPPER
€ 5.00
92075C
920751115
ref: 92075C
DAMPER,FUEL TANK FRON
€ 4.00
92075D
920751489
ref: 92075D
DAMPER,SIDE BAG BRACK
€ 6.00
92075E
920751736
ref: 92075E
DAMPER
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
