FENDER
EX500B6 GPZ500S 1993 FRANCE NL FG ST

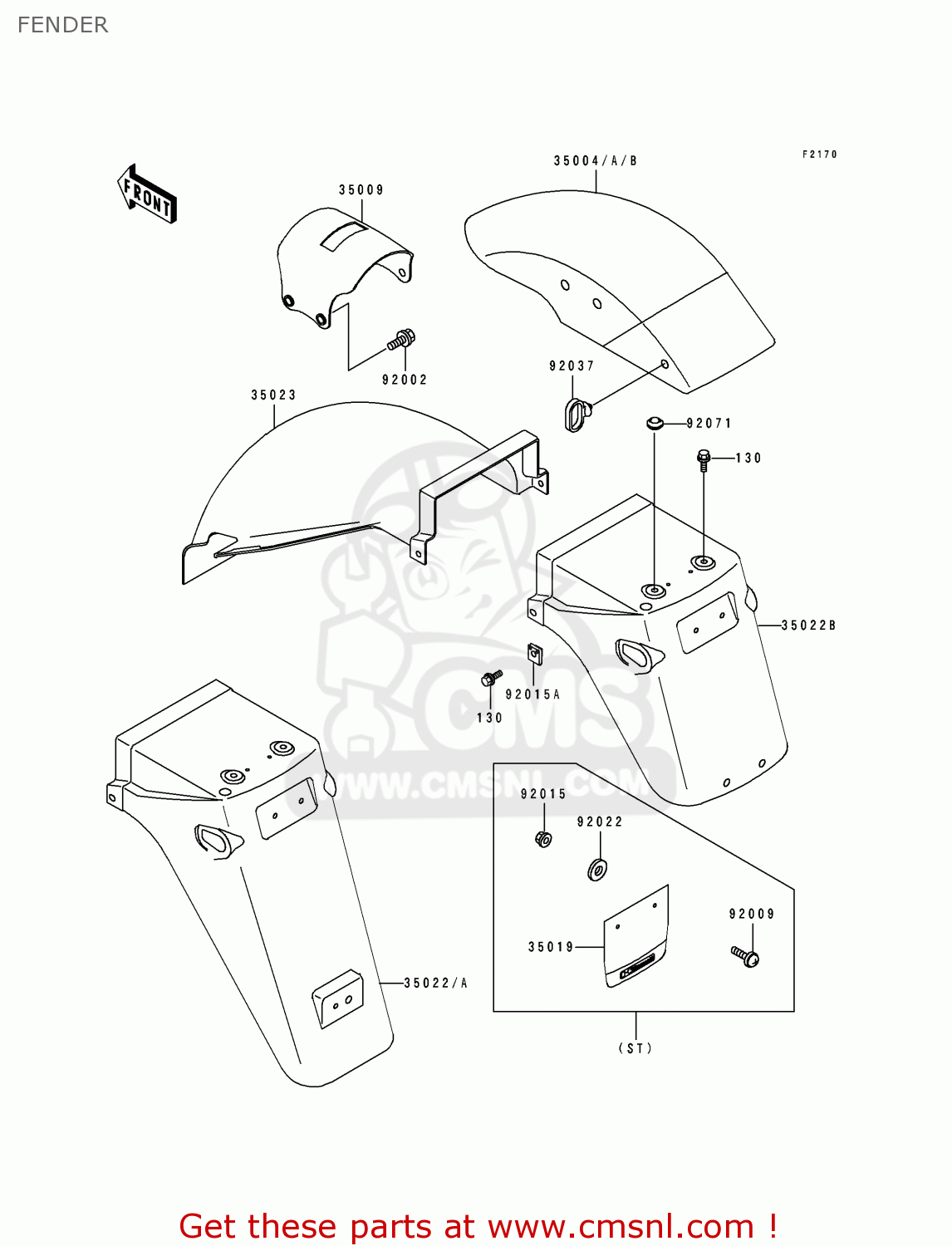

Fender diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
FENDER EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
130
130B0616
ref: 130
BOLT-FLANGED,6X16
€ 0.50
35004
350041188GR
ref: 35004
FGNL
FENDER-FRONT,RED/BLAC
€ 117.00
35004A
350041188M3
ref: 35004A
FRNL
FENDER-FRONT,BLACK/BL
€ 167.00
35004B
350041188P3
ref: 35004B
FENDER-FRONT,F.BLACK/
€ 117.00
35009
350091070
ref: 35009
BRACE,FRONT FENDER
€ 37.00
35019
350191207
ref: 35019
ST
FLAP,RR
€ 17.00
35022
3502212286Z
ref: 35022
FG
FENDER-COMP-REAR,RR,B
€ 91.00
35022A
3502212326Z
ref: 35022A
ST
FENDER-COMP-REAR,RR,B
€ 89.00
35022B
3502212366Z
ref: 35022B
FRNL
FENDER-COMP-REAR,RR,B
€ 88.50
35023
350231183
ref: 35023
FENDER-REAR,FR
€ 50.50
92002
920021200
ref: 92002
BOLT,FLANGED,8X16
€ 3.00
92009
920091662
ref: 92009
ST
SCREW
€ 2.50
92015
920151367
ref: 92015
ST
NUT,FLANGED,6MM
€ 0.50
92015A
920151678
ref: 92015A
NUT
€ 3.50
92022
92022125
ref: 92022
ST
WASHER,6.5X20X1.6
€ 1.00
92037
920371459
ref: 92037
CLAMP,CABLE
€ 14.50
92071
92071019
ref: 92071
GROMMET,10MM
€ 2.50
