FRONT CALIPER
EX500B6 GPZ500S 1993 FRANCE NL FG ST

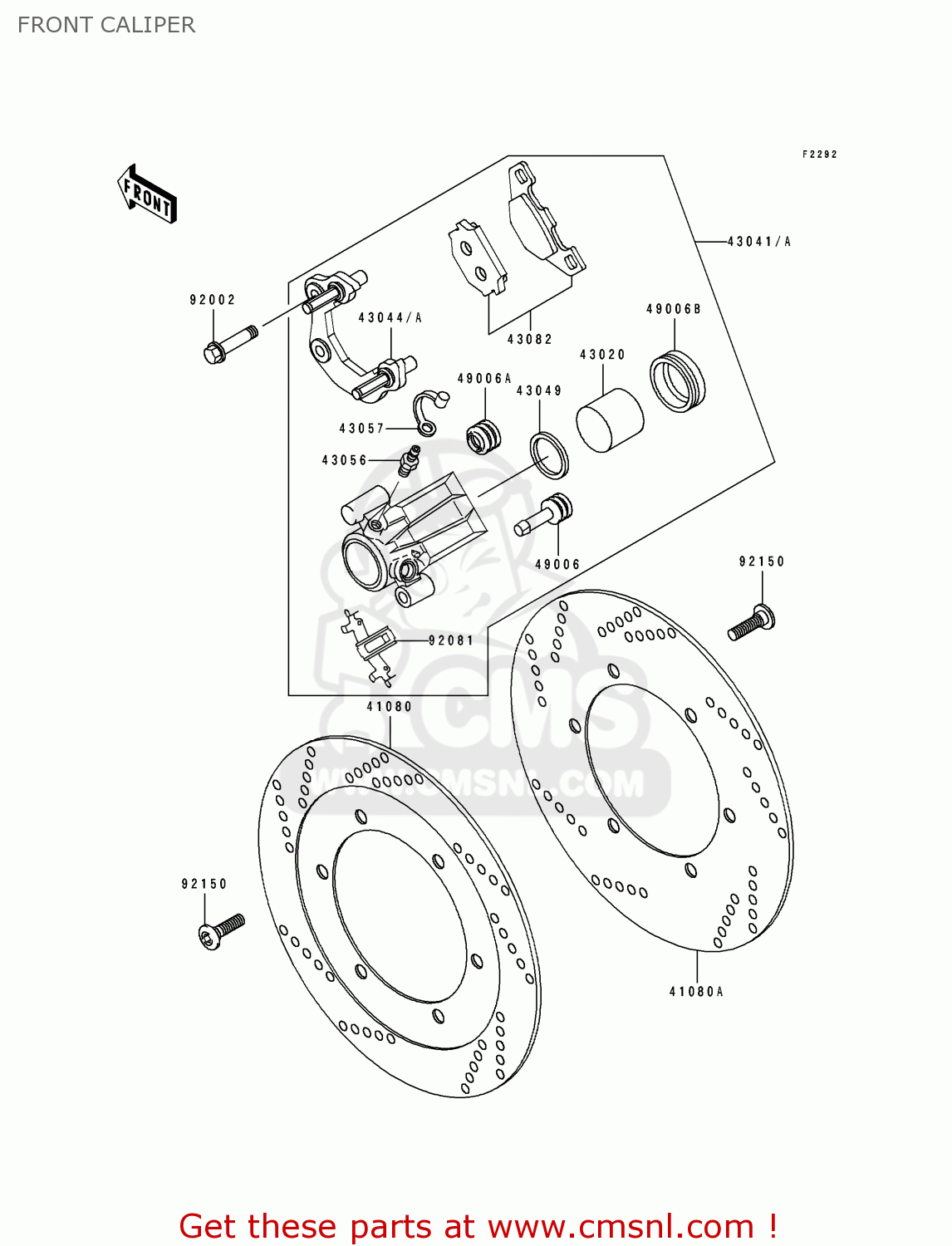

Front caliper diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
FRONT CALIPER EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
41080
410801214
ref: 41080
DISC,FR,LH
€ 257.50
41080A
410801215
ref: 41080A
DISC,FR,RH
€ 253.00
43020
430201082
ref: 43020
PISTON-COMP-BRAKE
€ 49.00
43041
430411467DJ
ref: 43041
CALIPER-ASSY,FR,RH,BL
€ 441.00
43041A
430411468DJ
ref: 43041A
CALIPER-ASSY,FR,LH,BL
€ 522.50
43044
430441027
ref: 43044
HOLDER-COMP-CALIPER,F
€ 118.50
43044A
430441028
ref: 43044A
HOLDER-COMP-CALIPER
€ 121.50
43049
430491026
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 9.00
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821056
ref: 43082
PAD-ASSY-BRAKE,FR (NAS)
€ 42.50
49006
490061054
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
€ 4.50
49006B
490061091
ref: 49006B
BOOT,PISTON
€ 11.00
92002
920021489
ref: 92002
BOLT,FLANGED,8X42
€ 6.00
92081
920811341
ref: 92081
SPRING
€ 10.00
92150
921501132
ref: 92150
BOLT,DISC PLATE,8X30
€ 5.00
