CARBURETOR PARTS
EX500B6 GPZ500S 1993 FRANCE NL FG ST

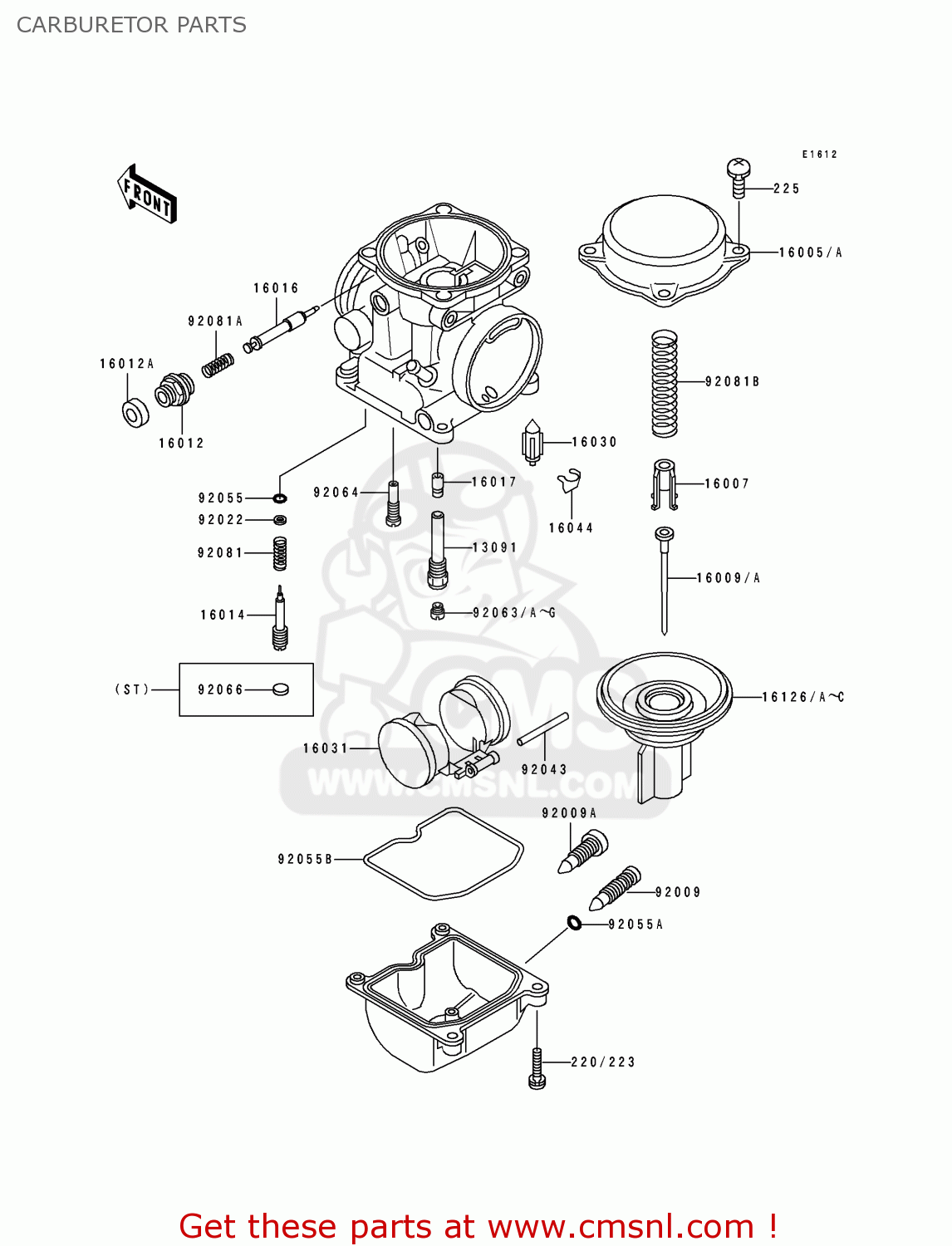

Carburetor parts diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
CARBURETOR PARTS EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
€ 30.50
16005A
160051059
ref: 16005A
FG
TOP-CHAMBER,MIXING,50
€ 55.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091342
ref: 16009
FGFRNL
NEEDLE-JET,N36N
€ 24.00
16009A
160091465
ref: 16009A
ST
NEEDLE-JET,N36U
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261173
ref: 16126
FRNL
VALVE,VACUUM
€ 159.50
16126A
161261173
ref: 16126A
FG
VALVE,VACUUM
€ 159.50
16126B
161261186
ref: 16126B
FG
VALVE,VACUUM,50PS
€ 53.50
16126C
161261192
ref: 16126C
FGST
VALVE,VACUUM,27PS
€ 130.50
92009
920091095
ref: 92009
ST
SCREW,DRAIN
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
ST
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
€ 9.50
220
220D0414
ref: 220
FGFRNL
SCREW-PAN-CROS
€ 2.00
223
223C0416
ref: 223
ST
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92063A
920631015
ref: 92063A
ST
MAIN JET,#138
€ 9.50
92063B
920631069
ref: 92063B
FGFRNL
MAIN JET,2ND #125
€ 9.50
92063C
920631074
ref: 92063C
MAIN JET,2ND #128
€ 9.50
92063D
920631075
ref: 92063D
FGFRNL
MAIN JET,2ND #130
€ 9.50
92063E
920631075
ref: 92063E
ST
MAIN JET,2ND #130
€ 9.50
92063F
920631076
ref: 92063F
ST
JET-MAIN,#132
€ 9.50
92063G
920631076
ref: 92063G
FGFRNL
JET-MAIN,#132
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
€ 17.50
