CRANKSHAFT
EX500B6 GPZ500S 1993 FRANCE NL FG ST

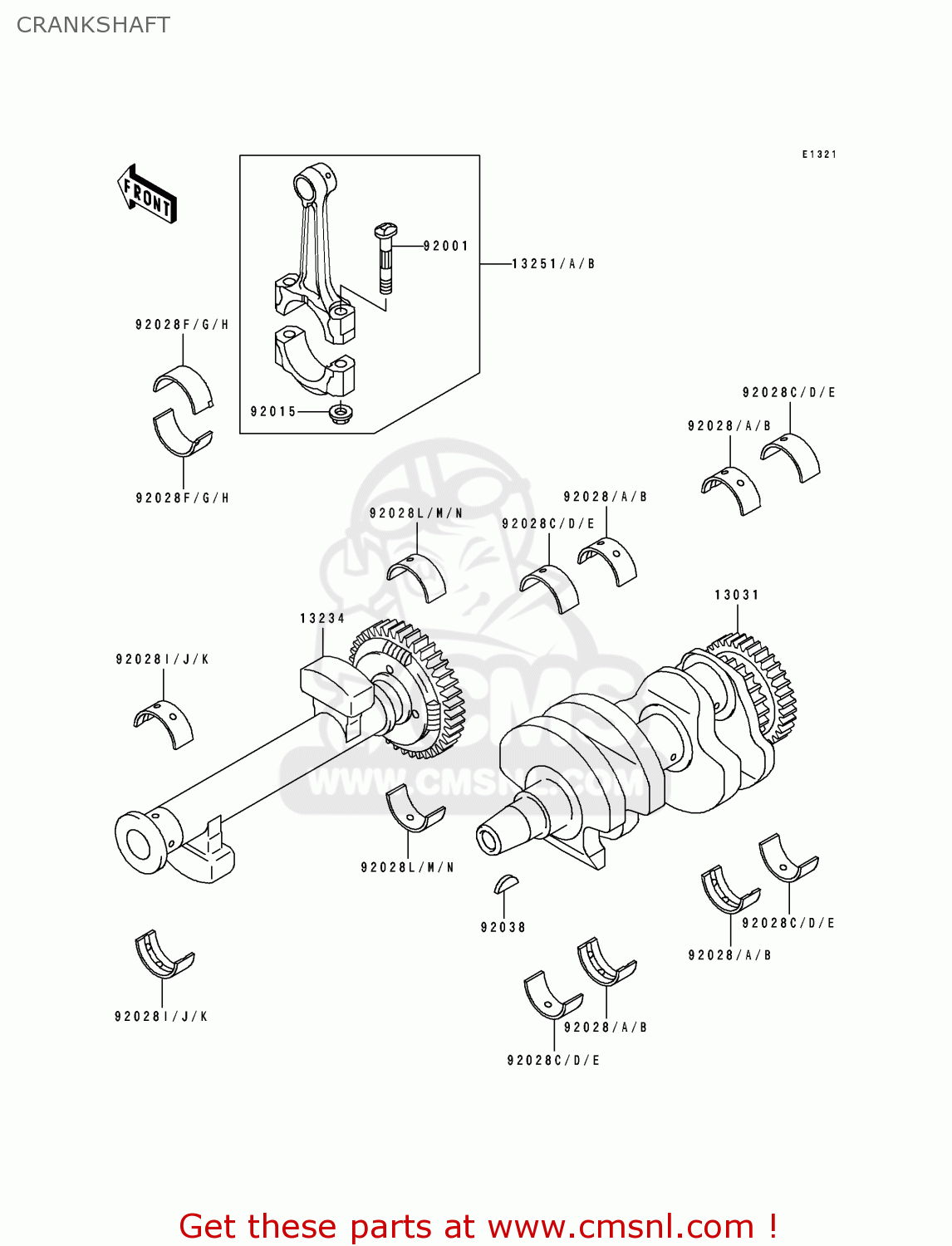

Crankshaft diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
CRANKSHAFT EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
13031
130311303
ref: 13031
CRANKSHAFT-COMP
€ 1,263.00
13234
132341071
ref: 13234
SHAFT-COMP,BALANCER
€ 622.50
13251
132511067HH
ref: 13251
ROD-ASSY-CONNECTING,H
€ 179.50
13251A
132511067II
ref: 13251A
ROD-ASSY-CONNECTING,I
€ 179.50
13251B
132511067JJ
ref: 13251B
ROD-ASSY-CONNECTING,J
€ 179.50
92001
920011887
ref: 92001
BOLT,CONNECTING ROD,8
€ 6.00
92015
920151311
ref: 92015
NUT,FLANGED,8MM
€ 4.50
92028
920281100
ref: 92028
BUSHING,CRANKSHAFT,BL
€ 11.00
92028A
920281101
ref: 92028A
BUSHING,CRANKSHAFT,BL
€ 11.00
92028B
920281102
ref: 92028B
BUSHING,CRANKSHAFT,BR
€ 11.00
92028C
920281272
ref: 92028C
BUSHING,CRANKSHAFT,BL
€ 19.00
92028D
920281273
ref: 92028D
BUSHING,CRANKSHAFT,BL
€ 19.00
92028E
920281274
ref: 92028E
BUSHING,CRANKSHAFT,BR
€ 19.00
92028F
920281348
ref: 92028F
BUSHING,CONNECTING RO
€ 13.50
92028G
920281349
ref: 92028G
BUSHING,CONNECTING RO
€ 13.50
92028H
920281350
ref: 92028H
BUSHING,CONNECTING RO
€ 13.50
92028I
920281495
ref: 92028I
BUSHING,BALANCER,LH,B
€ 13.50
92028J
920281496
ref: 92028J
BUSHING,BALANCER,LH,B
€ 13.50
92028K
920281497
ref: 92028K
BUSHING,BALANCER,LH,B
€ 13.50
92028L
920281653
ref: 92028L
BUSHING,BALANCER,RH,B
€ 10.50
92028M
920281654
ref: 92028M
BUSHING,BALANCER,RH,B
€ 10.50
92028N
920281655
ref: 92028N
BUSHING,BALANCER,RH,B
€ 10.50
92038
92038001
ref: 92038
WOODRUFF KEY
€ 3.00
