IGNITION SWITCH
EX500B6 GPZ500S 1993 FRANCE NL FG ST

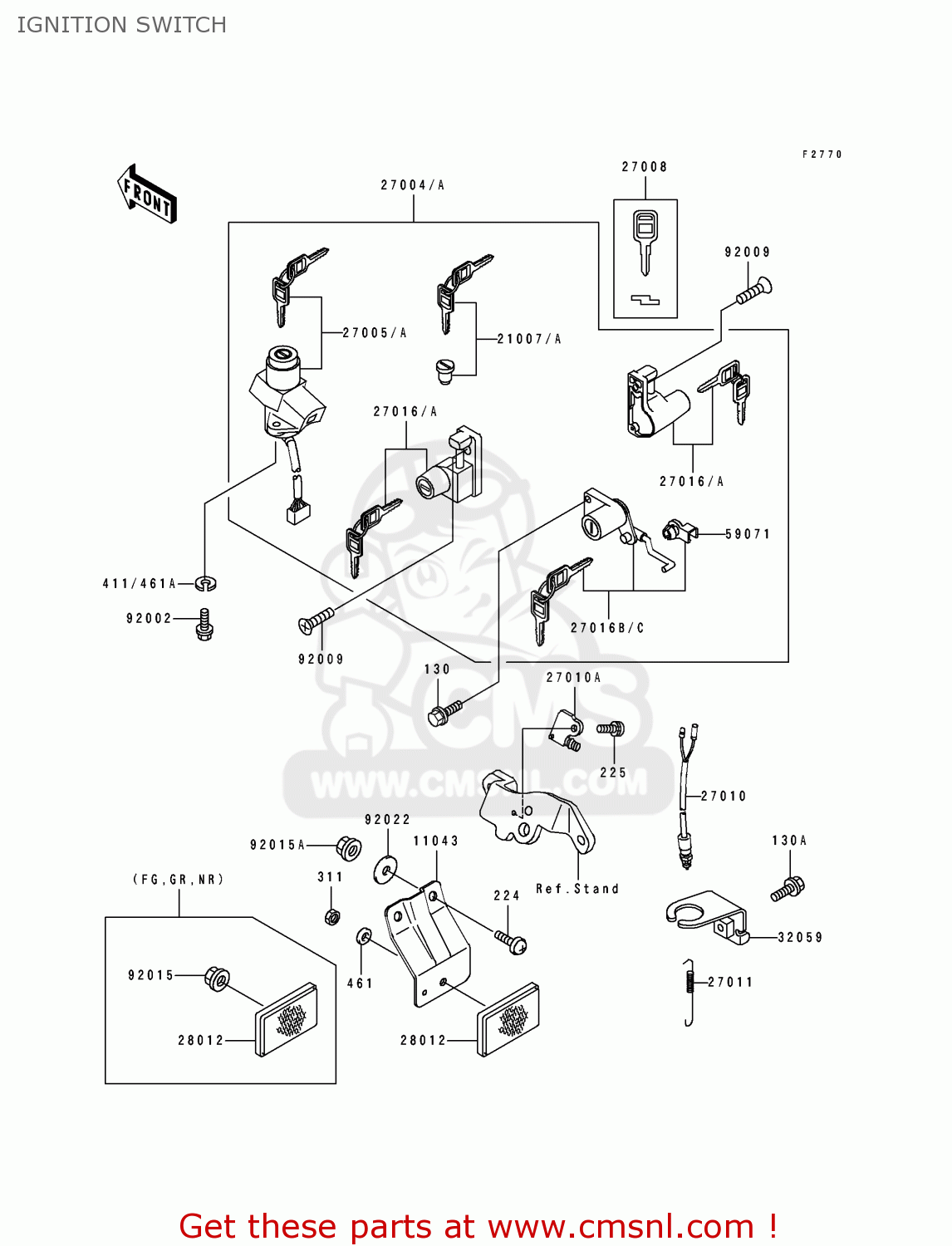

Ignition switch diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
IGNITION SWITCH EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
11043
110431078
ref: 11043
FRNL
BRACKET-B,REFLECTOR
€ 13.50
21007
210075012
ref: 21007
FRNLST
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075013
ref: 21007A
FG
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045301
ref: 27004
FG
SWITCH-ASSY
€ 281.00
27004A
270045328
ref: 27004A
FRNLST
SWITCH-ASSY
€ 257.00
27005
270055071
ref: 27005
FG
SWITCH-ASSY-IGNITION
€ 143.00
27005A
270055075
ref: 27005A
FRNLST
SWITCH-ASSY-IGNITION
€ 150.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101185
ref: 27010A
SWITCH,BRAKE/SIDE STA
€ 25.50
27011
27011006
ref: 27011
SPRING-BRAKE LAMP SW
€ 3.50
27016
270165091
ref: 27016
FRNLST
LOCK-ASSY,HELMET
€ 24.00
27016A
270165092
ref: 27016A
FG
LOCK-ASSY,HELMET
€ 24.00
27016B
270165123
ref: 27016B
FRNLST
LOCK-ASSY,SEAT
€ 24.00
27016C
270165124
ref: 27016C
FG
LOCK-ASSY,SEAT
€ 24.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591081
ref: 32059
BRACKET-SWITCH,REAR B
€ 5.50
59071
590711103
ref: 59071
JOINT
€ 5.50
92002
920021333
ref: 92002
BOLT
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
130
130B0510
ref: 130
BOLT-FLANGED
€ 1.50
130A
130B0614
ref: 130A
BOLT-FLANGED
€ 0.50
224
224C0614
ref: 224
FRNL
SCREW-PAN-WP-CROS
€ 2.50
225
225C0416
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311B0500
ref: 311
FRNL
NUT-HEX
€ 0.50
411
411E0600
ref: 411
FRNLST
W-PLAIN-S
€ 0.50
461
461F0500
ref: 461
FRNL
WASHER-SPRING,5MM
€ 0.50
461A
461L0600
ref: 461A
FG
WASHER-SPRING
€ 0.50
92015
920151259
ref: 92015
FGST
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
FRNL
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
FRNL
WASHER,6.5X20X1.6
€ 1.00
