FRONT HUB
EX500B6 GPZ500S 1993 FRANCE NL FG ST

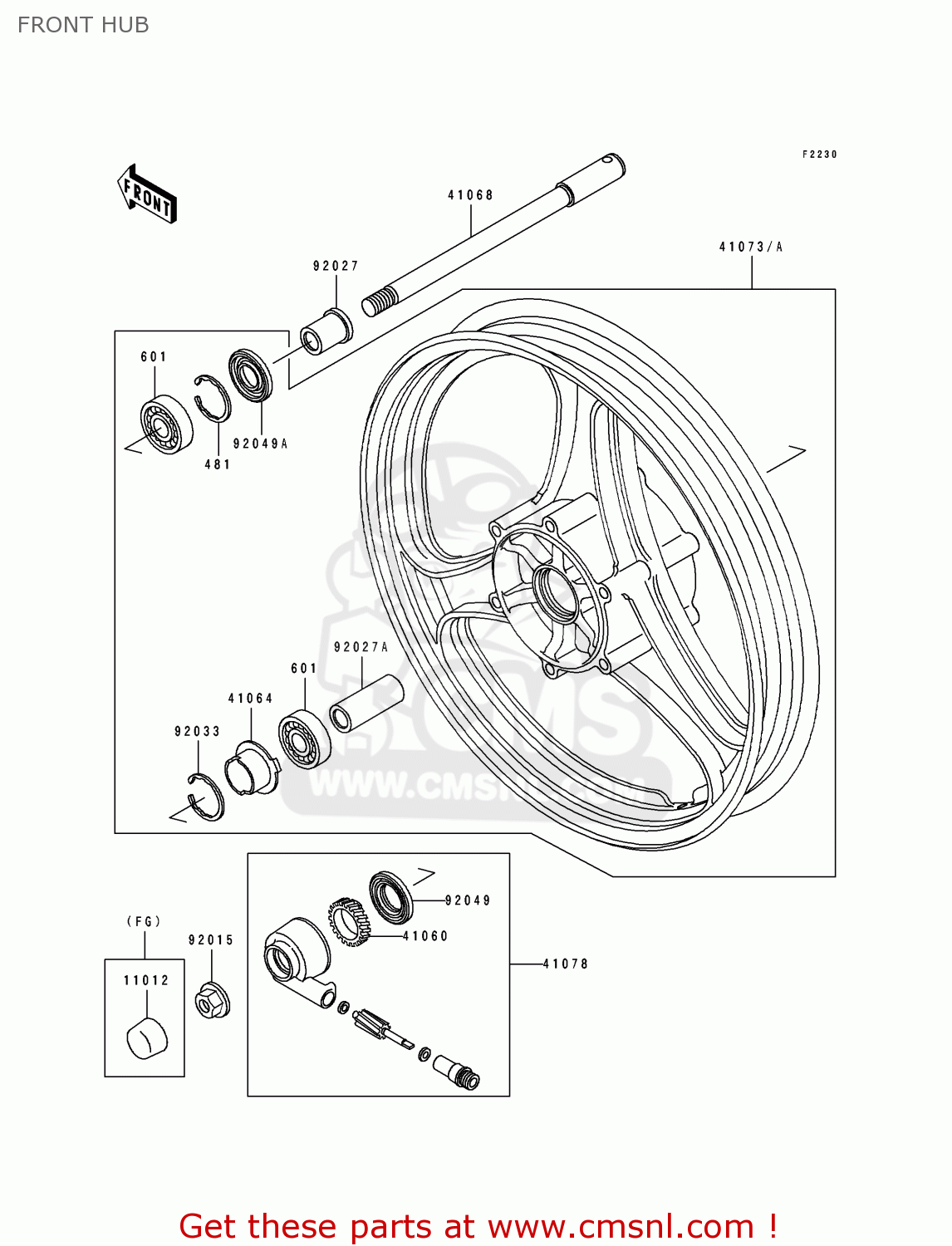

Front hub diagram EX500B6 GPZ500S 1993 FRANCE NL FG ST
FRONT HUB EX500B6 GPZ500S 1993 FRANCE NL FG ST
×
prices are in EUR
ref
part #
description
quantity
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
11012
110121591
ref: 11012
FG
CAP,AXLE NUT
€ 3.00
41060
410601107
ref: 41060
GEAR-METER SCREW,23T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
€ 44.50
41073
410731412GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
€ 606.50
41073A
410731412T6
ref: 41073A
FGFRNL
WHEEL-ASSY,FR,WHITE N
€ 577.50
41078
410781055
ref: 41078
CASE-ASSY-METER GEAR
€ 102.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92027A
920271505
ref: 92027A
COLLAR,15.2X22X55
€ 8.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491348
ref: 92049A
SEAL-OIL
€ 7.50
