TURN SIGNALS

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

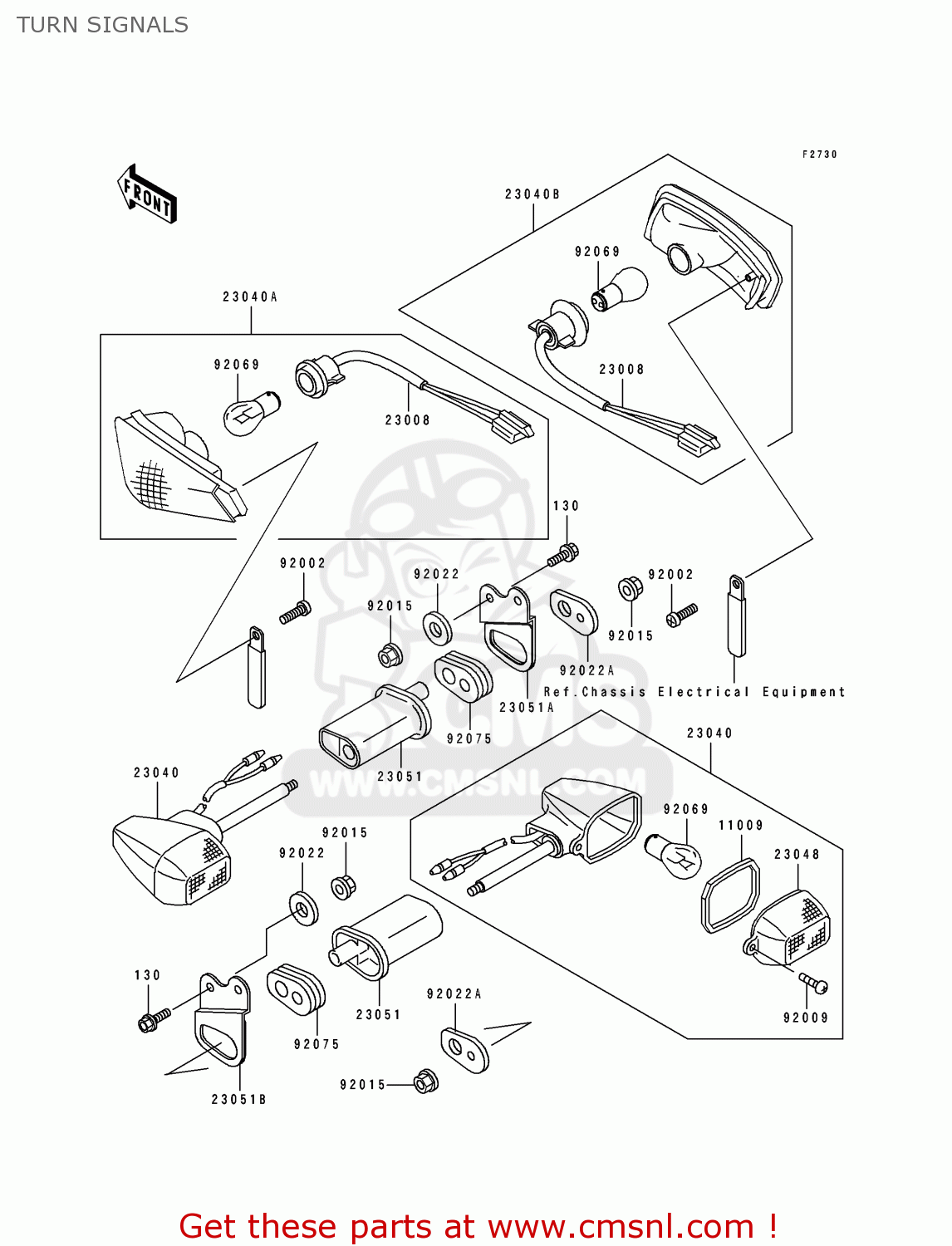

Turn signals diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

TURN SIGNALS EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
TURN SIGNALS EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
TURN SIGNALS EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091576
€ 4.50
23008
230081273
ref: 23008
SOCKET-ASSY,SIGNAL LA
230081273
€ 16.50
23040
230401143
ref: 23040
LAMP-SIGNAL,RR
230401143
€ 38.50
23040A
230401189
ref: 23040A
LAMP-SIGNAL,FR,LH
230401189
€ 43.00
23040B
230401190
ref: 23040B
LAMP-SIGNAL,FR,RH
230401190
€ 40.50
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
230481068
€ 12.00
23051
230511164
ref: 23051
BRACKET-SIGNAL LAMP,F
230511164
€ 7.50
23051A
230511211
ref: 23051A
BRACKET-SIGNAL LAMP,R
230511211
€ 9.00
23051B
230511212
ref: 23051B
BRACKET-SIGNAL LAMP,R
€ 9.50
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
920091142
€ 3.00
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022A
920221672
ref: 92022A
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069

ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
