GENERATOR

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

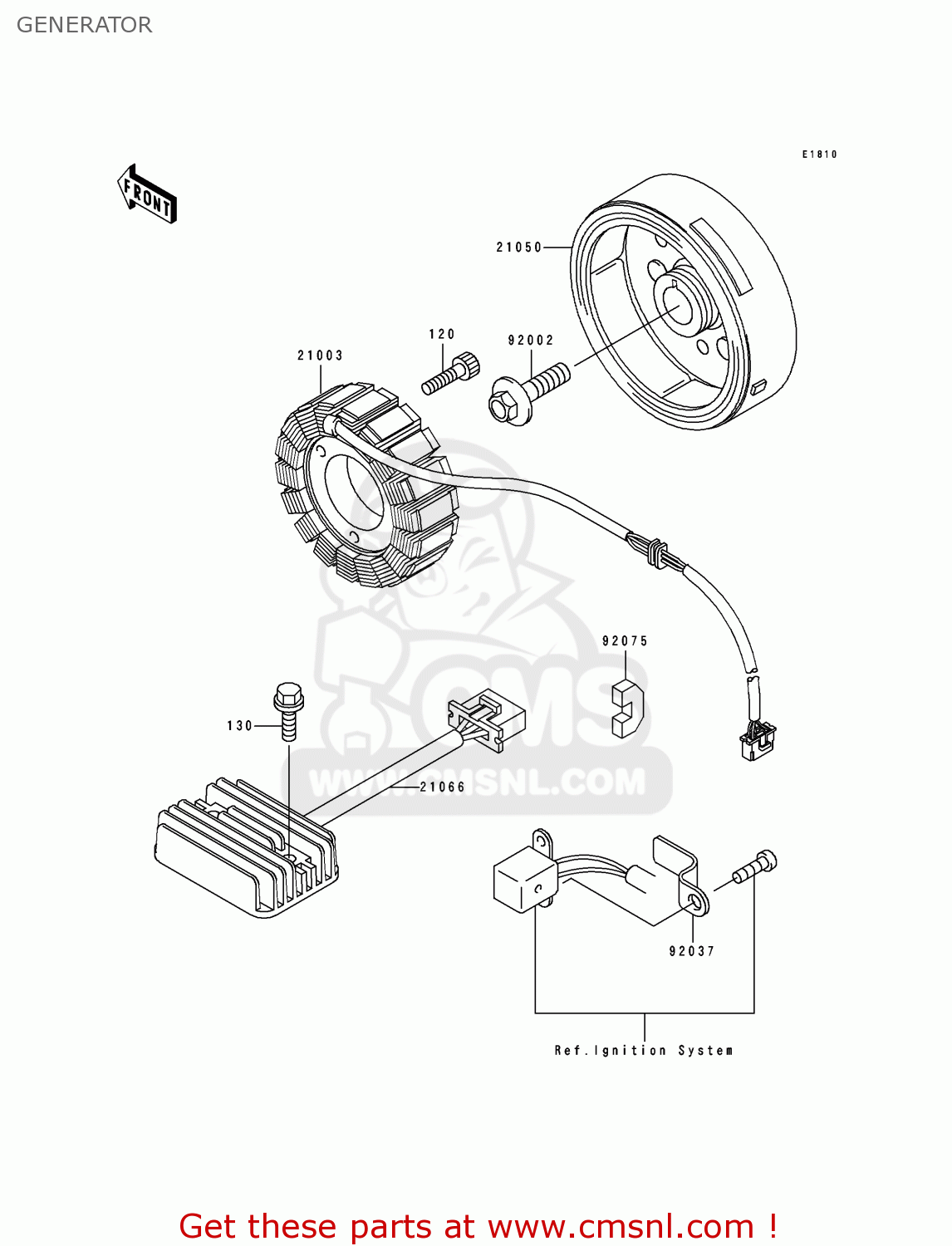

Generator diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

GENERATOR EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

GENERATOR EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

130

130B0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

21003

210031154
ref: 21003

STATOR

€ 484.00

21050

210501129
ref: 21050

FLYWHEEL

€ 459.50

21066

210661030
ref: 21066

REGULATOR-VOLTAGE

€ 176.00

92002

920021688
ref: 92002

BOLT,10X28

€ 7.00

92037

920371919
ref: 92037

CLAMP

€ 3.00

92075

920751811
ref: 92075

DAMPER

€ 4.00
