IGNITION SYSTEM

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

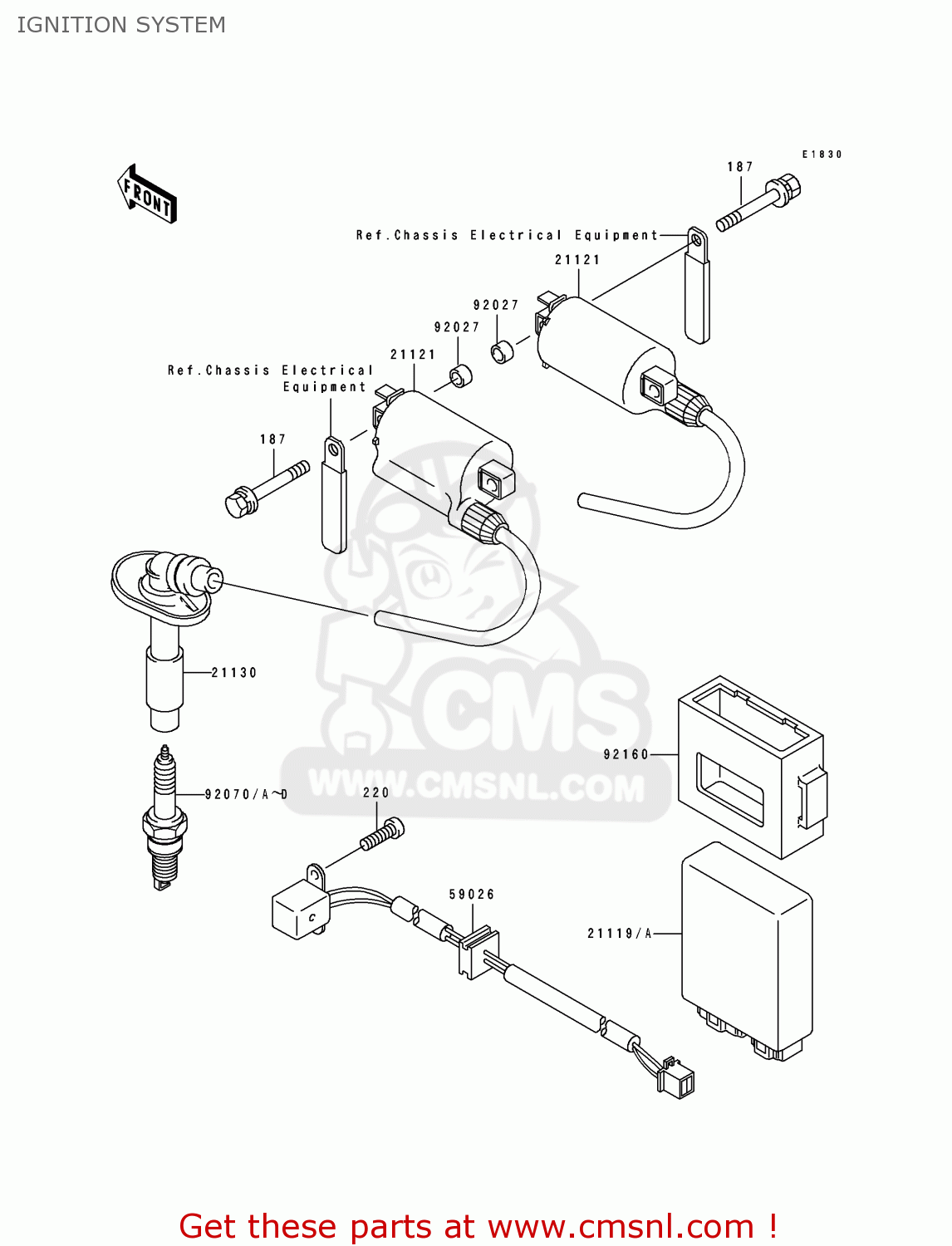

Ignition system diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

prices are in EUR

ref

part #

description

quantity

187

187G0625
ref: 187

BOLT-UPSET-WSP

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21119

211191229
ref: 21119

IGNITER

€ 195.00

21121

211211163
ref: 21121

COIL-IGNITION

€ 144.50

21130

211301056
ref: 21130

CAP-SPARK PLUG

€ 38.00

59026

590261086
ref: 59026

COIL-PULSING

€ 111.00

92027

92027103
ref: 92027

COLLAR

€ 2.50

92070

920701154
ref: 92070

CR7HSA (NGK SPARKPLUG

€ 4.00

92070A

920701155
ref: 92070A

CR8HSA (NGK SPARKPLUG

€ 4.00

92070B

ref: 92070B

92070C

ref: 92070C

92160

921601137
ref: 92160

DAMPER

€ 20.50
