FENDERS
EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

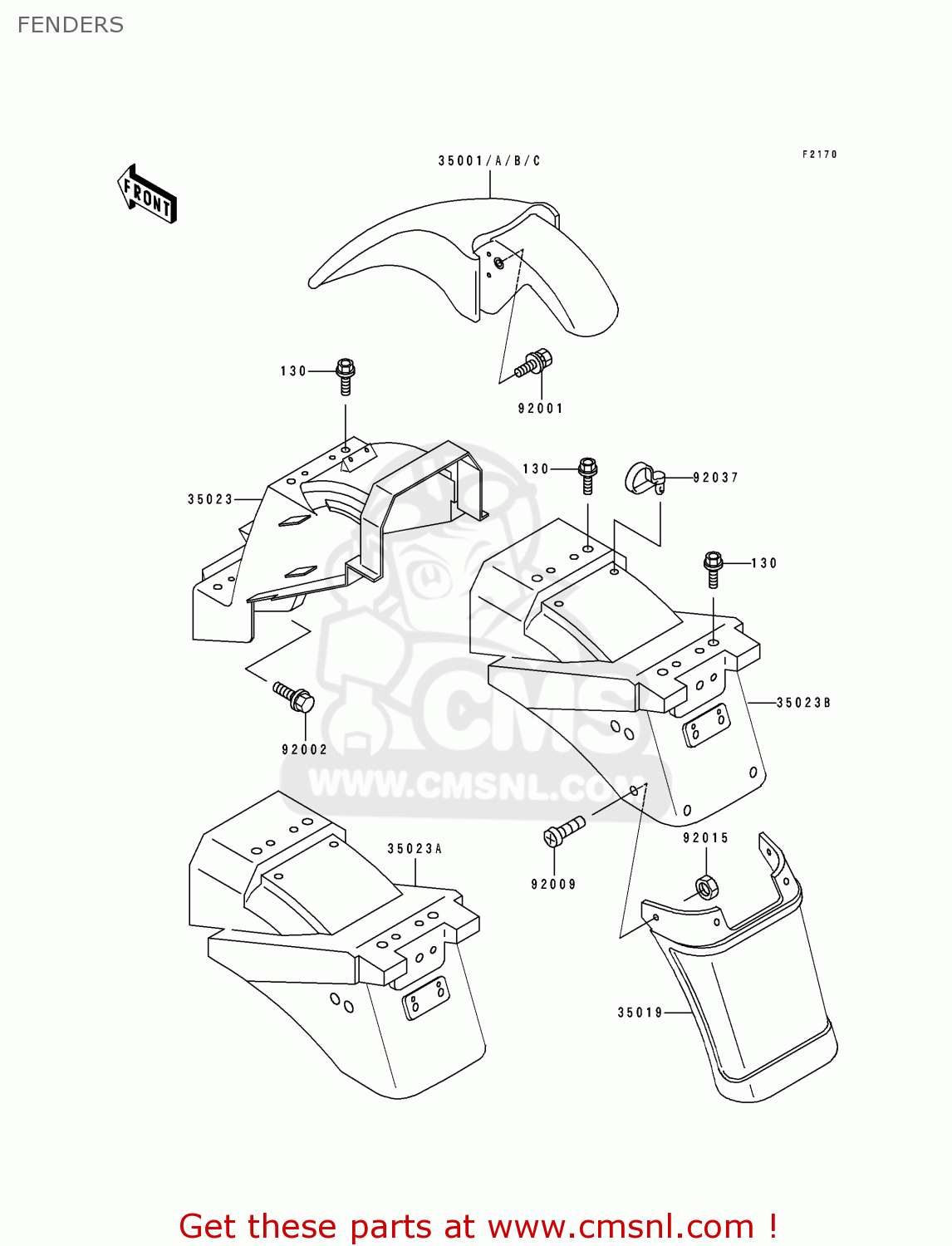

Fenders diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
FENDERS EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
×
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
35001
350011145GW
ref: 35001
FENDER-ASSY-FRONT,M.S
€ 130.50
35001C
350011145L1
ref: 35001C
FENDER-ASSY-FRONT,C.C
€ 133.00
35019
350191170
ref: 35019
GRNRST
FLAP,REAR FENDER
€ 33.00
35023
350231264
ref: 35023
FENDER-REAR,FR
€ 87.00
35023A
350231277
ref: 35023A
AREUUK
FENDER-REAR,RR
€ 80.50
35023B
350231307
ref: 35023B
GRNRST
FENDER-REAR,RR
€ 74.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92002
920021351
ref: 92002
BOLT
€ 2.50
92009
920091182
ref: 92009
GRNRST
SCREW,5X12,BLACK
€ 1.50
92015
920151328
ref: 92015
GRNRST
NUT,FLANGED,5MM
€ 2.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
