TRANSMISSION

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

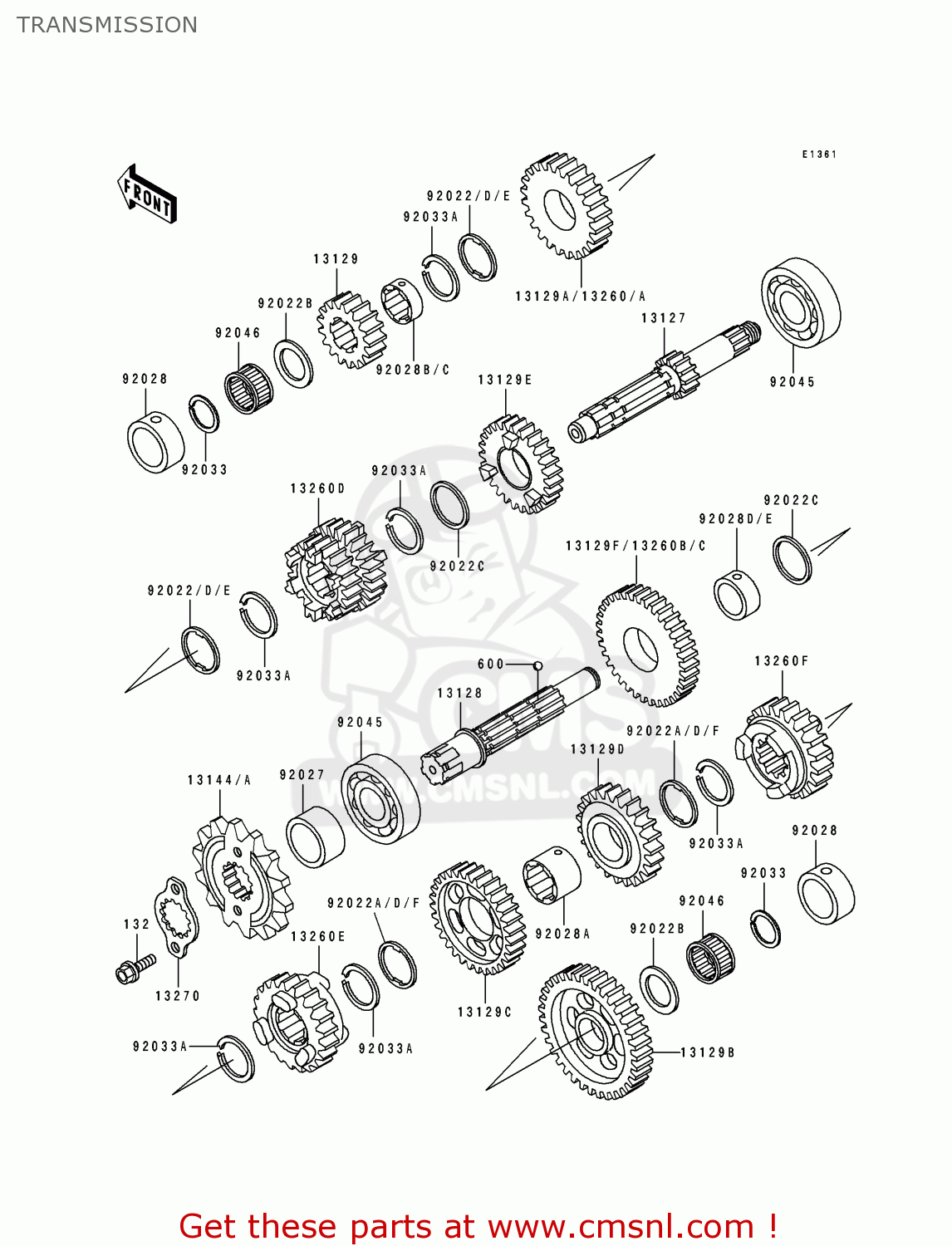

Transmission diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

TRANSMISSION EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
TRANSMISSION EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
TRANSMISSION EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
prices are in EUR
ref
part #
description
quantity
13127
131271134
ref: 13127
SHAFT-TRANSMISSION IN
131271134
€ 190.50
13128
131281172
ref: 13128
SHAFT-TRANSMISSION OU
131281172
€ 167.50
13129
131291086
ref: 13129
GEAR,INPUT 2ND,19T
131291086
€ 72.00
13129A
131291089
ref: 13129A
GEAR,INPUT TOP,28T
131291089
€ 57.00
13129B
131291254
ref: 13129B
GEAR,OUTPUT LOW,39T
€ 122.50
13129C
131291781
ref: 13129C
GEAR,OUTPUT 3RD,31T
131291781
€ 105.00
13129D
131291782
ref: 13129D
GEAR,OUTPUT 4TH,29T
131291782
€ 117.50
13129E
131291882
ref: 13129E
GEAR,INPUT 5TH,27T
131291882
€ 105.00
13129F
131291883
ref: 13129F
EUGRNRSTUK
GEAR,OUTPUT 2ND,34T
131291883
€ 117.00
13144
131441103
ref: 13144
AR
SPROCKET-OUTPUT,15T
131441103
€ 36.00
13144A
131441126
ref: 13144A
EUGRNRSTUK
SPROCKET-OUTPUT,14T
131441126
€ 31.00
13260A
132601033
ref: 13260A
GEAR,INPUT TOP,28T
132601033
€ 109.00
13260B
132601034
ref: 13260B
AR
GEAR,OUTPUT 2ND,34T
€ 109.00
13260C
132601034
ref: 13260C
EUGRNRSTUK
GEAR,OUTPUT 2ND,34T
€ 109.00
13260D
132601098
ref: 13260D
GEAR,INPUT 3RD&4TH,22
132601098
€ 121.00
13260E
132601099
ref: 13260E
GEAR,OUTPUT TOP,25T
132601099
€ 112.00
13260F
132601267
ref: 13260F
GEAR,OUTPUT 5TH,27T
€ 100.00
13270
132701060
ref: 13270
PLATE,SPROCKET
132701060
€ 5.50
92022
920221072
ref: 92022
EUGRNRSTUK
WASHER,TOOTHED,25.3X3
920221072
€ 2.00
92022A
920221072
ref: 92022A
WASHER,TOOTHED,25.3X3
920221072
€ 2.00
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
92022112
€ 6.00
92022C
92022161
ref: 92022C
WASHER-THRUST,25MM
92022161
€ 7.00
92022D
920221935
ref: 92022D
AR
WASHER,23X30X1.0
920221935
€ 3.00
92022E
920221935
ref: 92022E
EUGRNRSTUK
WASHER,23X30X1.0
920221935
€ 3.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
132G0608
€ 1.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
92022F
920221935
ref: 92022F
WASHER,23X30X1.0
920221935
€ 3.00
92027
920271302
ref: 92027
COLLAR,ENGINE SPROCKE
920271302
€ 9.00
92028
920281426
ref: 92028
BUSHING,25X33X14
920281426
€ 29.00
92028A
920281437
ref: 92028A
BUSHING
920281437
€ 16.50
92028C
920281563
ref: 92028C
BUSHING,TOP GEAR
€ 13.50
92028D
920281564
ref: 92028D
AR
BUSHING,9.4X25X28
920281564
€ 15.00
92028E
920281564
ref: 92028E
EUGRNRSTUK
BUSHING,9.4X25X28
920281564
€ 15.00
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
92033026
€ 6.00
92045
920451013
ref: 92045
BEARING-BALL,#6205NX3
920451013
€ 23.00
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
92046044
€ 23.00
