COWLING(EX250-H1/H2)

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

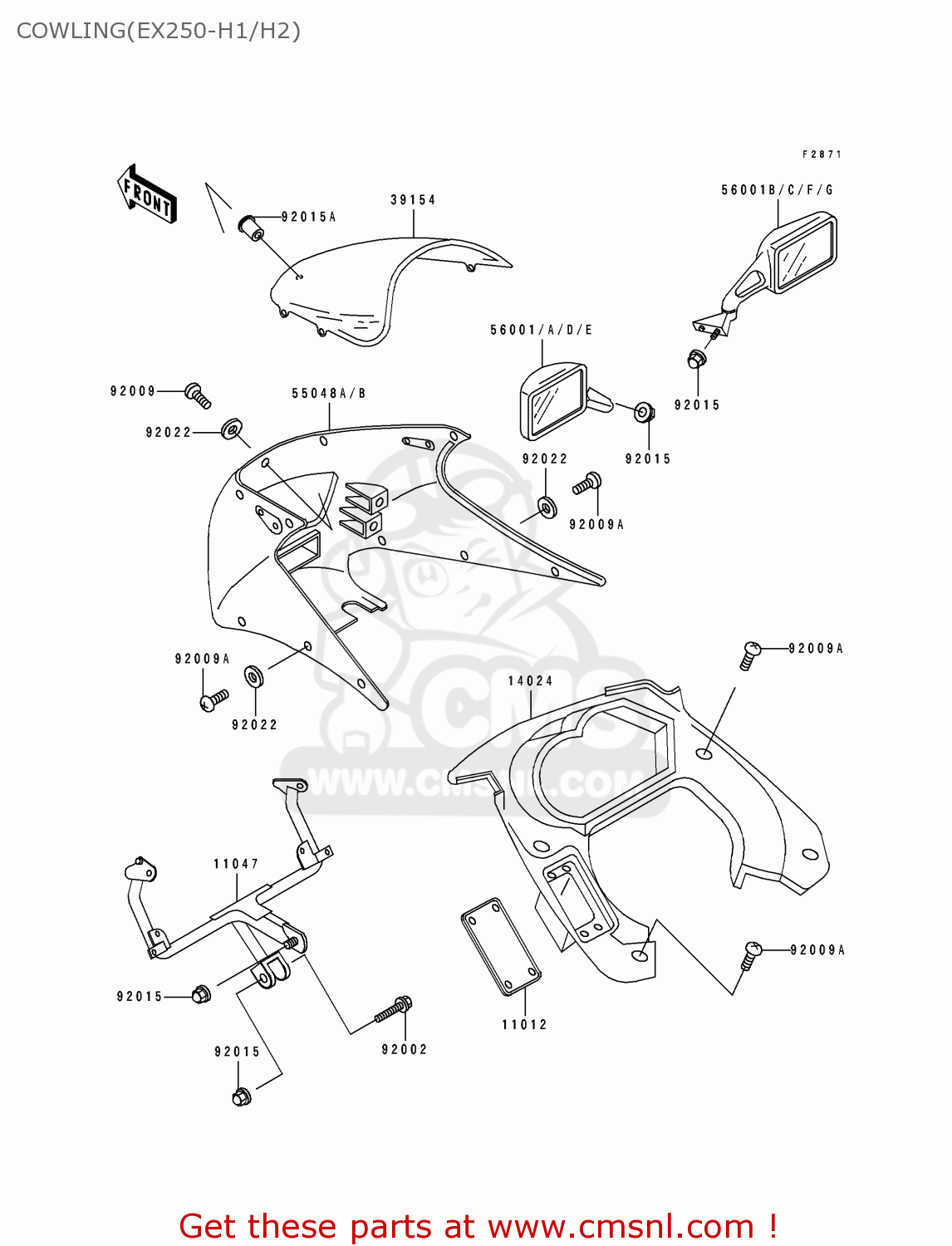

Cowling(ex250-h1/h2) diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

COWLING(EX250-H1/H2) EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
COWLING(EX250-H1/H2) EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
COWLING(EX250-H1/H2) EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
prices are in EUR
ref
part #
description
quantity
11012
110121570
ref: 11012
CAP,INNER COWLING COV
110121570
€ 13.50
11047
110471035
ref: 11047
BRACKET,UPP COWLING
110471035
€ 259.50
14024
140241961
ref: 14024
COVER,COWLING,INNER
140241961
€ 172.00
39154
391541114
ref: 39154
WINDSHIELD
391541114
€ 170.50
55048A
550485460L1
ref: 55048A
COWLING.,UPP,C.C.RED
550485460L1
€ 559.00
55048B
550485463GW
ref: 55048B
COWLING.,UPP,M.S.BLUE
550485463GW
€ 533.00
56001
560011403GW
ref: 56001
ARGRNRST
MIRROR-ASSY,LH,BLUE
€ 74.50
56001A
560011403L1
ref: 56001A
ARGRNRST
MIRROR-ASSY,LH,C.C.RE
€ 69.50
56001B
560011404GW
ref: 56001B
ARGRNRST
MIRROR-ASSY,RH,BLUE
€ 90.00
56001C
560011404L1
ref: 56001C
ARGRNRST
MIRROR-ASSY,RH,C.C.RE
560011404L1
€ 99.50
56001D
560011405GW
ref: 56001D
EUUK
MIRROR-ASSY,LH,BLUE
560011405GW
€ 90.00
56001E
560011405L1
ref: 56001E
EUUK
MIRROR-ASSY,LH,C.C.RE
560011405L1
€ 88.50
56001F
560011406GW
ref: 56001F
EUUK
MIRROR-ASSY,RH,BLUE
560011406GW
€ 90.00
56001G
560011406L1
ref: 56001G
EUUK
MIRROR-ASSY,RH,C.C.RE
€ 99.50
92002
920021532
ref: 92002
BOLT,FLANGED,8X30
€ 2.50
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92009A
920091660
ref: 92009A
SCREW
920091660
€ 3.00
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151757A
ref: 92015A
NUT,5MM
920151757A
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
