FRONT FORK

EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

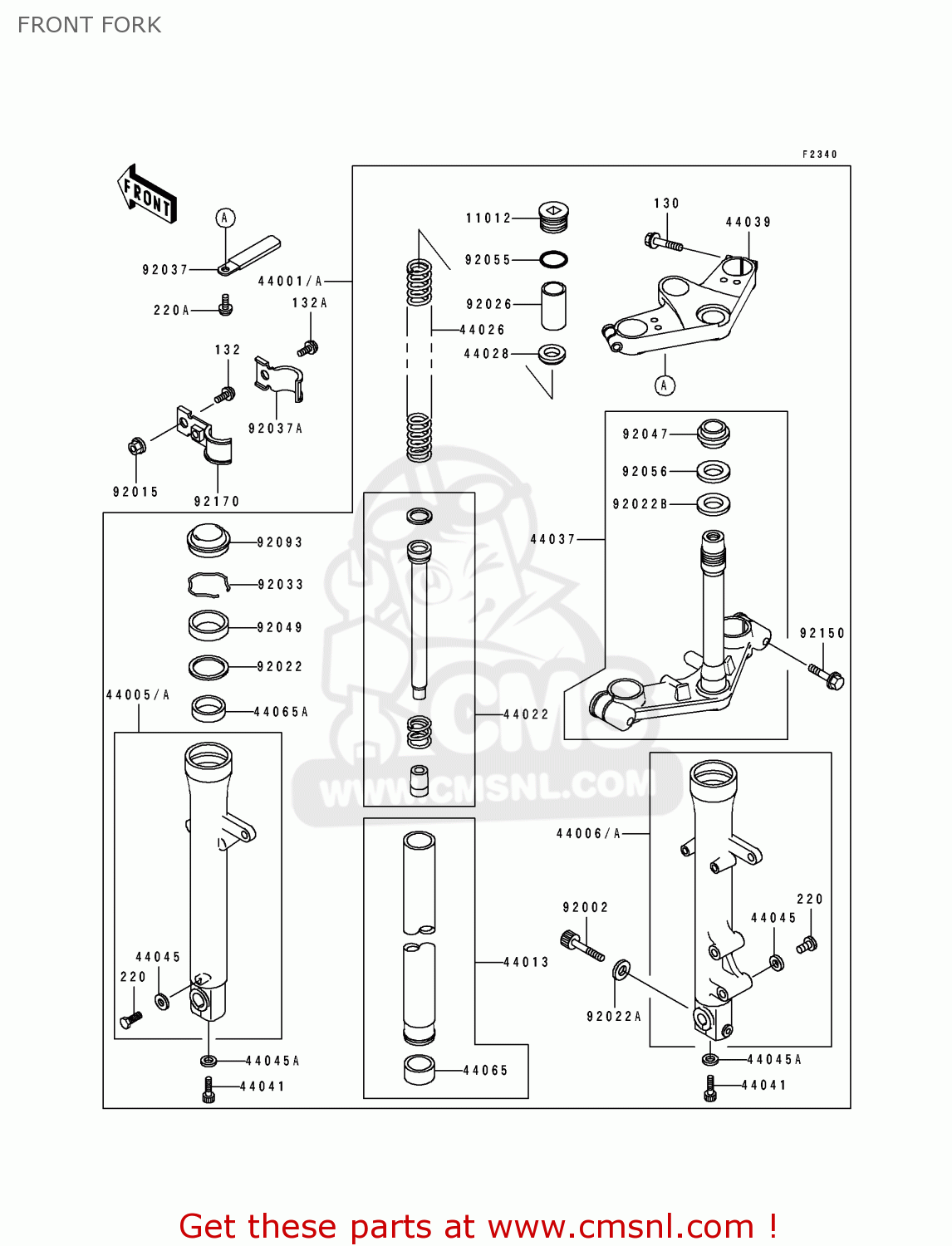

Front fork diagram EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST

FRONT FORK EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
FRONT FORK EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
FRONT FORK EX250H1 ZZR250 1990 EUROPE UK AR GR NR ST
prices are in EUR
ref
part #
description
quantity
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
132
132E0620
ref: 132
EUGRNRSTUK
BOLT-FLANGED-SMALL
132E0620
€ 2.00
11012
110121764
ref: 11012
CAP,FORK TOP
110121764
€ 36.50
44001
440011817GD
ref: 44001
FORK-FRONT,G.GRAY
€ 1,453.50
44005
440051304
ref: 44005
PIPE-LEFT FORK OUTER
440051304
€ 198.50
44006
440061301
ref: 44006
PIPE-RIGHT FORK OUTER
440061301
€ 164.00
44013
440131332
ref: 44013
PIPE-FORK INNER
440131332
€ 162.50
44022
440221261
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261473
ref: 44026
SPRING-FRONT FORK
€ 26.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
440281003
€ 7.50
44037
440371296
ref: 44037
HOLDER-FORK UNDER
440371296
€ 297.50
44039
440391202GD
ref: 44039
HOLDER-FORK UPPER,G.G
440391202GD
€ 230.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
44045057
€ 3.00
44065
440651083
ref: 44065
BUSHING-FRONT FORK,IN
440651083
€ 17.00
44065A
440651084
ref: 44065A
BUSHING-FRONT FORK
440651084
€ 15.00
92002
920021316
ref: 92002
BOLT
920021316
€ 3.50
92015
920151237
ref: 92015
EUGRNRSTUK
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
920221455
€ 4.50
92022A
920221598
ref: 92022A
WASHER
920221598
€ 4.50
92022B
92022231
ref: 92022B
WASHER,PLAIN
92022231
€ 3.00
92026
920261288
ref: 92026
SPACER,FORK,L=100
920261288
€ 11.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371898
ref: 92037A
CLAMP,HOSE
920371898
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491372
ref: 92049
SEAL-OIL,FORK OUTER T
920491372
€ 15.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
920551050
€ 4.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
92056003
€ 6.00
92093
920931314
ref: 92093
SEAL,FORK OUTER TUBE
920931314
€ 16.50
92150
921501438
ref: 92150
BOLT,FLANGED,10X32
921501438
€ 9.00
92170
921701200
ref: 92170
CLAMP,HOSE
€ 7.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
220B0608
€ 0.50
