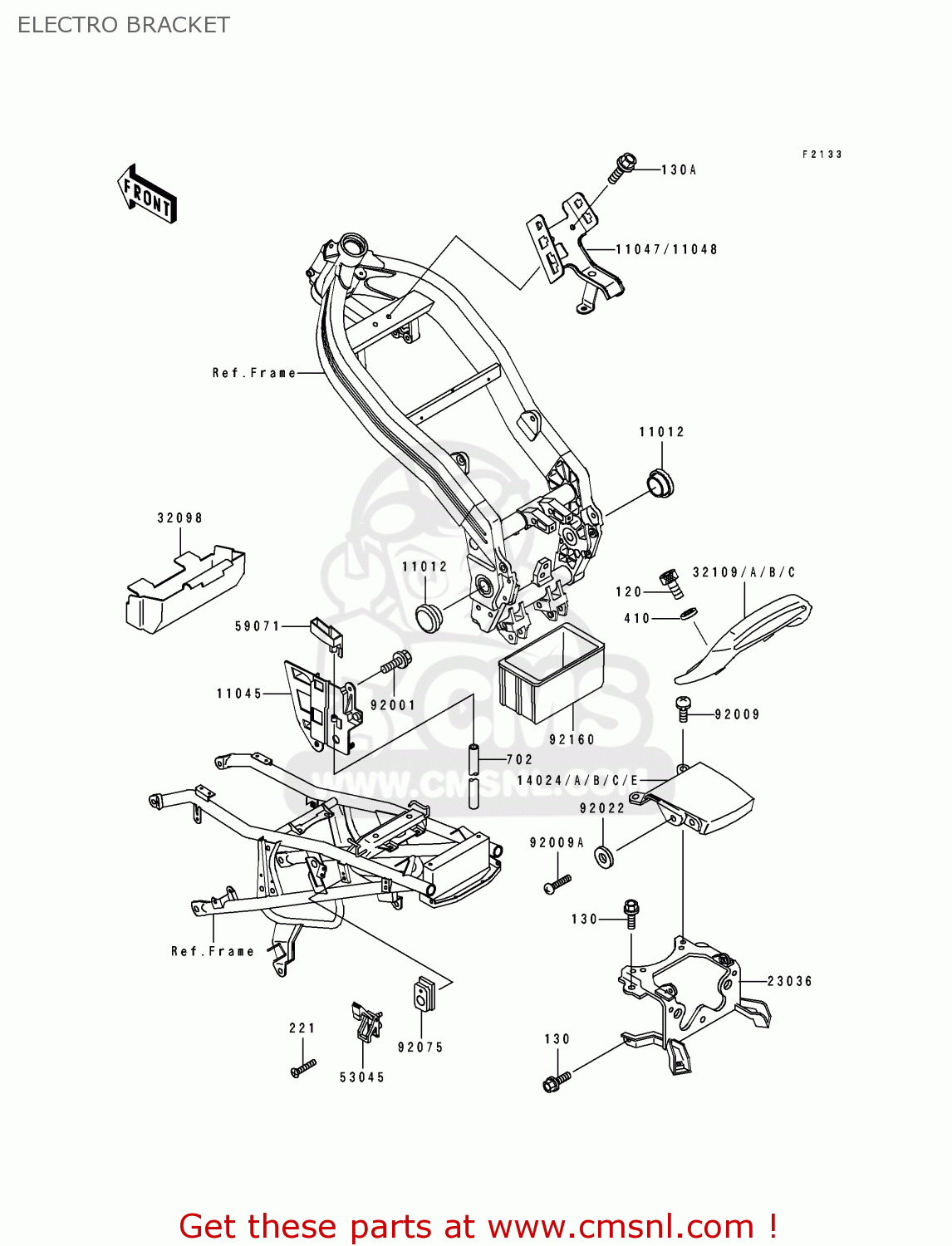

ELECTRO BRACKET

ref

part #

description

quantity

120

120P0820
ref: 120

BOLT-SOCKET

€ 2.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0614
ref: 130A

BOLT-FLANGED,6X14

€ 1.50

221

221E0620
ref: 221

SCREW-CSK-CROS,6X20

€ 2.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

702

702A05350
ref: 702

TUBE-RUBBER,5X350

€ 50.00

11012

110121459
ref: 11012

CAP,SWING ARM BRACKET

€ 7.00

11045

110451578
ref: 11045

BRACKET,ELECTRIC

€ 16.00

11047

110471126
ref: 11047

BRACKET,THERMOSTAT

€ 13.00

14024A

140241906HC
ref: 14024A

COVER,TAIL,ROSE OPERA

€ 27.50

14024B

140241906HT
ref: 14024B

COVER,TAIL,M.O.SILVER

€ 30.00

23036

230361121
ref: 23036

BRACKET-TAIL LAMP

€ 63.00

32098

320981091
ref: 32098

CASE-TOOL

€ 22.00

32109

321091211GW
ref: 32109

GRIP-FRAME,M.S.BLUE

€ 124.00

32109C

321091211L1
ref: 32109C

GRIP-FRAME,C.C.RED

€ 138.00

53045

530451051
ref: 53045

HOOK-ASSY,ROPE

€ 28.00

59071

590711139
ref: 59071

JOINT,BATTERY VENT HO

€ 4.50

92001

920011847
ref: 92001

BOLT,6X14,BLACK

€ 2.50

92009

920091662
ref: 92009

SCREW

€ 2.50

92009A

920091663
ref: 92009A

SCREW

€ 2.50

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92075

920751726
ref: 92075

DAMPER,ROPE HOOK

€ 3.50
