VALVE(S)

EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

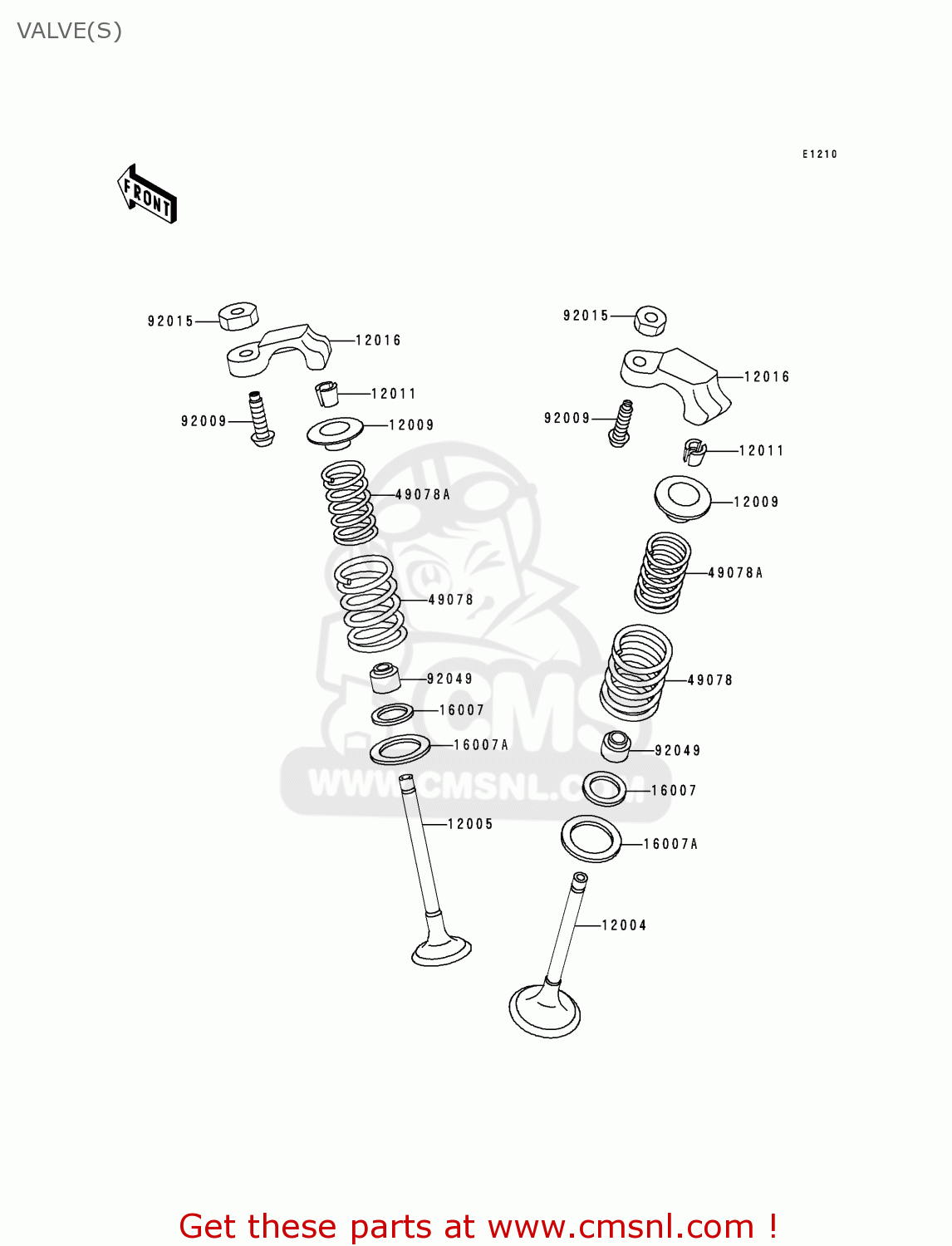

Valve(s) diagram EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

prices are in EUR

ref

part #

description

quantity

12004

120041074
ref: 12004

VALVE-INTAKE

€ 34.50

12005

120051091
ref: 12005

VALVE-EXHAUST

€ 29.50

12009

120091060
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111051
ref: 12011

COLLET

€ 1.50

12016

120161067
ref: 12016

ARM-ROCKER

€ 62.00

16007

160071177
ref: 16007

SEAT-SPRING,12.1X16.2

€ 3.50

16007A

160071178
ref: 16007A

SEAT-SPRING,17.5X23.8

€ 4.00

49078

490781078
ref: 49078

SPRING-ENGINE VALVE

€ 11.00

49078A

490781079
ref: 49078A

SPRING-ENGINE VALVE

€ 10.00

92009

920091424
ref: 92009

SCREW,6MM

€ 10.00

92015

920151586
ref: 92015

NUT,6MM

€ 4.00

92049

920491218
ref: 92049

SEAL-OIL,VSB58.558

€ 3.50

VALVE(S)

all assemblies
