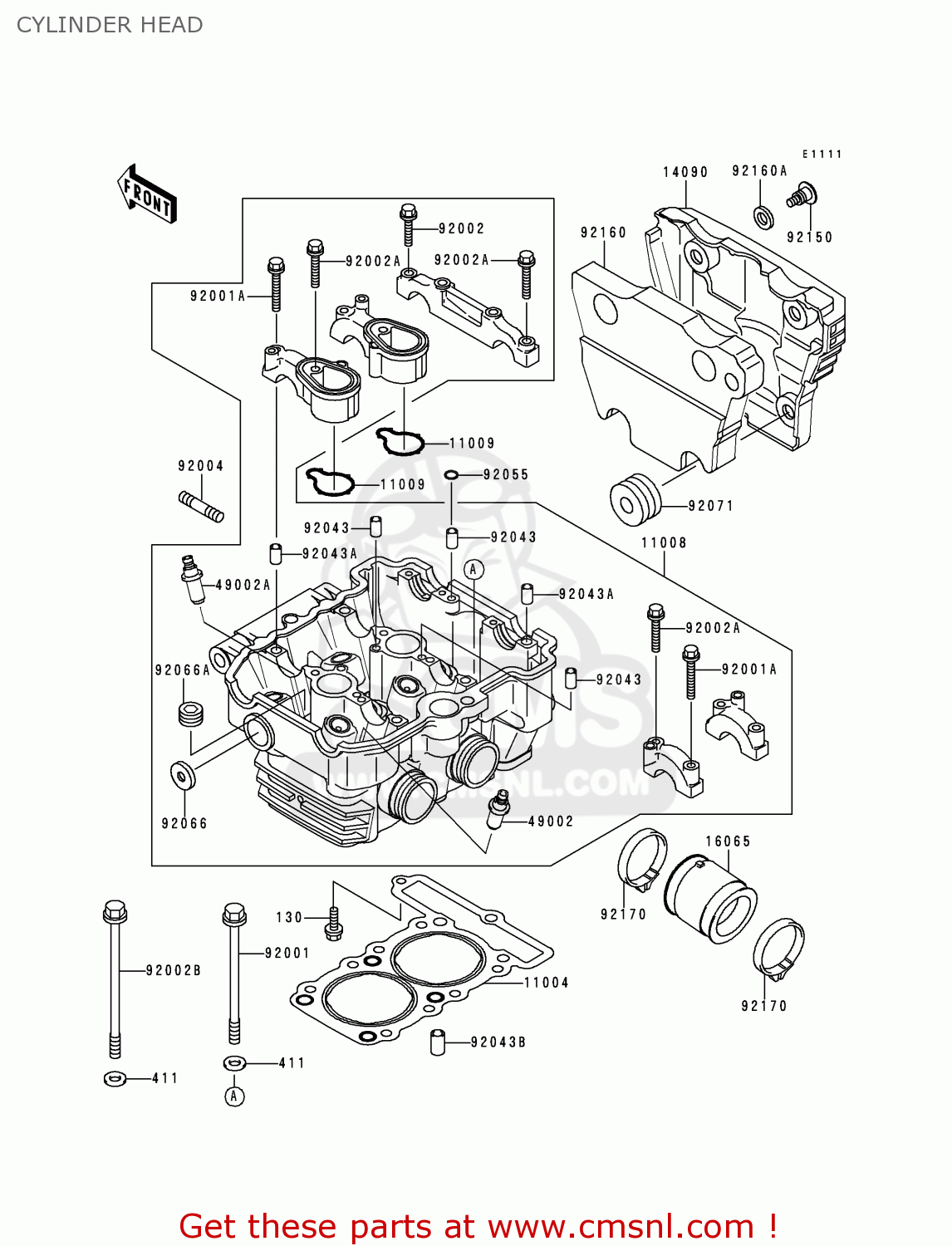

CYLINDER HEAD

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

11004

110041312
ref: 11004

GASKET-HEAD (NAS)

€ 29.50

11008

110081315
ref: 11008

HEAD-COMP-CYLINDER

€ 1,031.50

11009

110091573
ref: 11009

GASKET,CAMSHAFT BRAKE (NAS)

€ 5.00

14090

140901680
ref: 14090

COVER,RH

€ 167.50

16065

160651158
ref: 16065

HOLDER-CARBURETOR

€ 22.00

49002

490021070
ref: 49002

GUIDE-VALVE,INTAKE

€ 27.00

49002A

490021071
ref: 49002A

GUIDE-VALVE,EXHAUST

€ 27.00

92001

920011481
ref: 92001

BOLT,8X115

€ 8.00

92001A

920011872
ref: 92001A

BOLT,6X46

€ 2.50

92002

920021755
ref: 92002

BOLT,6X30

€ 2.50

92002A

920021756
ref: 92002A

BOLT,6X40

€ 3.00

92002B

920021832
ref: 92002B

BOLT,8X146

€ 8.00

92004

92004059
ref: 92004

STUD

€ 4.00

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92043B

920431264
ref: 92043B

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551339
ref: 92055

RING-O,5.5X1.5

€ 3.00

92066

920661116
ref: 92066

PLUG,22X6.0

€ 6.00

92066A

920661253
ref: 92066A

PLUG,PT1/2X12.5

€ 6.50

92071

920711010
ref: 92071

GROMMET

€ 3.00

92150

921501998
ref: 92150

BOLT

€ 7.00

92160

921601704
ref: 92160

DAMPER

€ 46.00

92160A

921601705
ref: 92160A

DAMPER

€ 1.50

92170

921701438
ref: 92170

CLAMP

€ 5.50
