FRONT FORK(EL250-F2/F3/F4)

EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

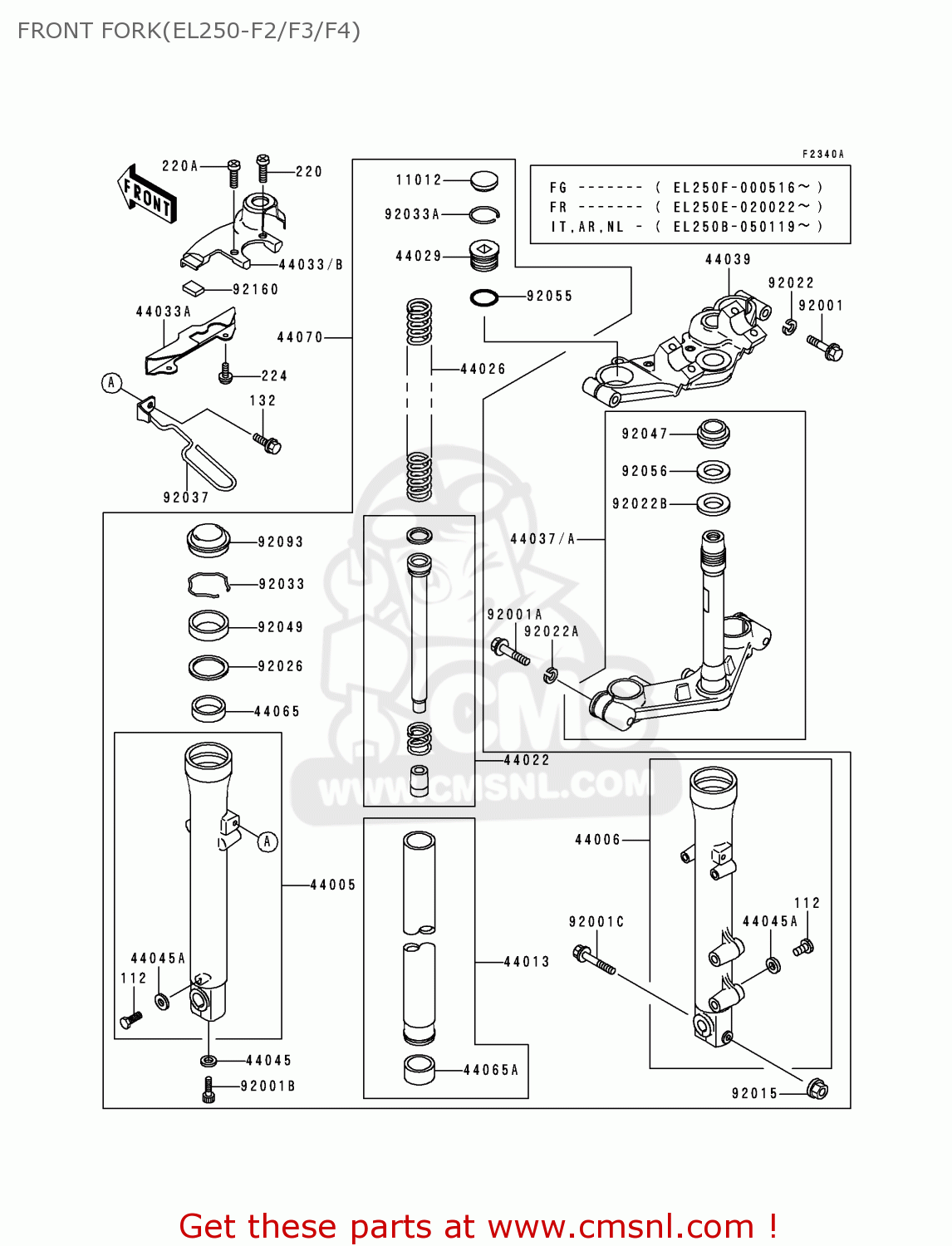

Front fork(el250-f2/f3/f4) diagram EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

FRONT FORK(EL250-F2/F3/F4) EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR
FRONT FORK(EL250-F2/F3/F4) EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR
FRONT FORK(EL250-F2/F3/F4) EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR
prices are in EUR
ref
part #
description
quantity
11012
110121620
ref: 11012
CAP,FORK TOP
€ 7.50
44005
440051266
ref: 44005
PIPE-LEFT FORK OUTER
€ 345.00
44006
440061263
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131428
ref: 44013
PIPE-FORK INNER
€ 123.00
44022
440221217
ref: 44022
CYLINDER-FORK
€ 90.00
44026
440261625
ref: 44026
SPRING-FRONT FORK
€ 25.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
440291124
€ 29.50
44033A
440331177
ref: 44033A
COVER-FORK,UNDER BRAC
€ 16.50
44033B
440331238
ref: 44033B
COVER-FORK,UPPER BRAC
€ 30.50
44037A
440371244
ref: 44037A
HOLDER-FORK UNDER
€ 274.00
44039
440391159
ref: 44039
HOLDER-FORK UPPER
€ 238.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
440651068
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
440651069
€ 16.50
44070
440701541
ref: 44070
DAMPER-ASSY,FORK
€ 1,081.00
92001
920011063
ref: 92001
BOLT,HEX HEAD,8X40
920011063
€ 6.50
92001A
920011454
ref: 92001A
BOLT
920011454
€ 6.50
92001B
920011464
ref: 92001B
BOLT
920011464
€ 4.00
92001C
920011486
ref: 92001C
BOLT,FLANGED,8X50
920011486
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
920221704
€ 2.00
92022B
92022231
ref: 92022B
WASHER,PLAIN
92022231
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
920261038
€ 6.50
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
920331220
€ 6.00
92037
920371922
ref: 92037
CLAMP,CABLE
€ 15.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
920491226
€ 14.50
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
920551359
€ 6.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
92056003
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
920931196
€ 15.50
92160
921601746
ref: 92160
DAMPER
€ 1.50
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
112B0608
€ 0.50
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
220
220E0510
ref: 220
SCREW-PAN-CROS
€ 2.50
220A
220E0518
ref: 220A
SCREW-PAN-CROS,5X18
€ 2.50
224
224B0508
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
